Hsun HS700UTV - Page 82

GENERAL SPECIFICATIONS
2-9
Item Standard Limit

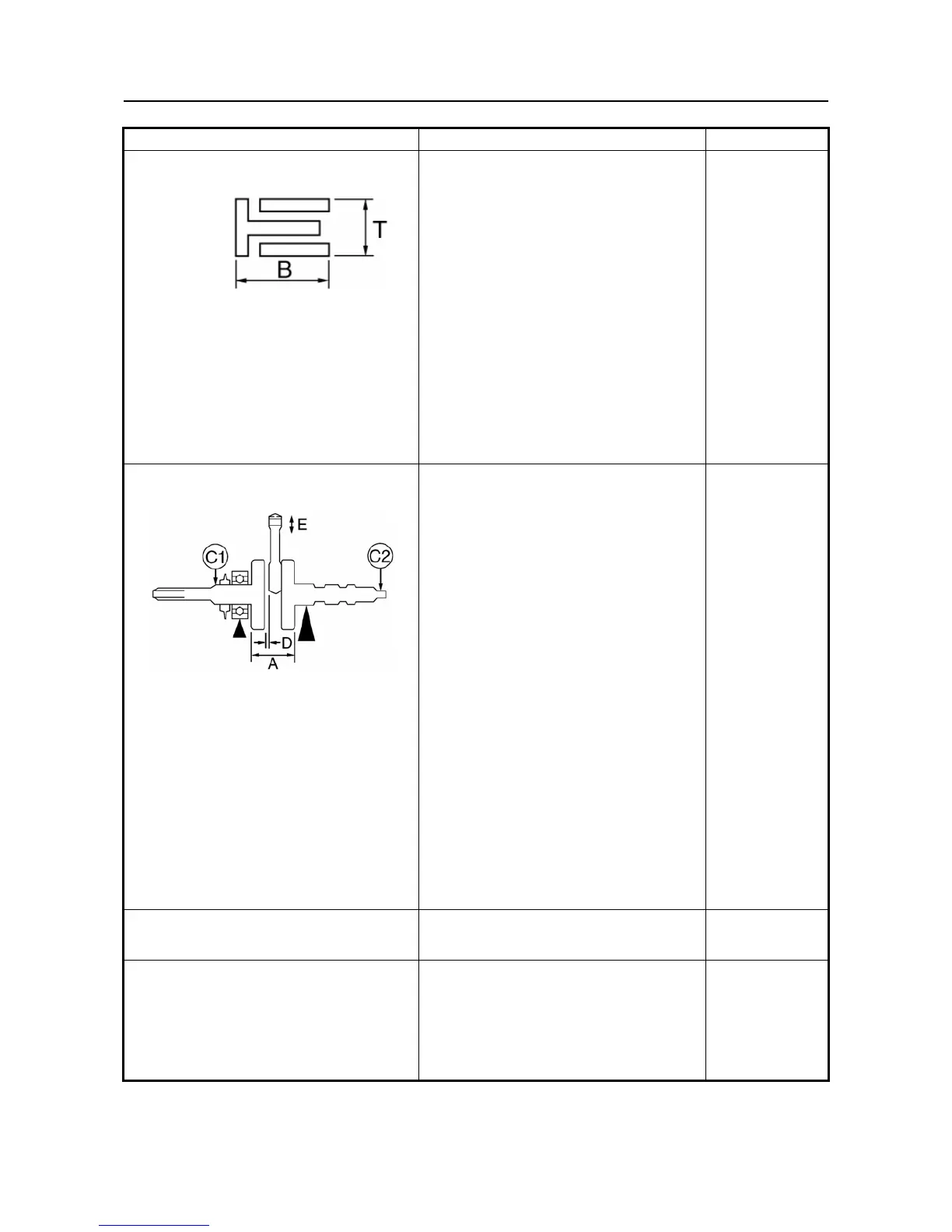

Oil ring
Dimensions (B×T)
End gap (installed)
Side clearance
2.5×3.4 mm
(0.0984×0.1339 in)
0.20 ~ 0.70 mm
(0.0079 ~ 0.0276 in)
0.06 ~ 0.15 mm
(0.0024 ~ 0.0059 in)
----
----
----
Crankshaft
Crank width “A”
Runout limit C1
C2
Big end side clearance “D”
Big end radial clearance “E”
74.95 ~ 75.00 mm
(2.9508 ~ 2.9528 in)
----
----
0.35 ~ 0.65 mm
(0.0138 ~ 0.0256 in)
0.010 ~ 0.025 mm
(0.0004 ~ 0.0010 in)
----
0.03 mm
(0.0012 in)
0.03 mm
(0.0012 in)
1.0 mm
(0.0394 in)
----
Balancer
Balancer drive method Gear ----
Automatic centrifugal clutch
Clutch shoe thickness
Clutch-in revolution
Clutch-stall revolution
1.5 mm
(0.06 in)
1,900 ~ 2,300 r/min
3,350 ~ 3,850 r/min
1.0 mm
(0.04 in)
----
----
