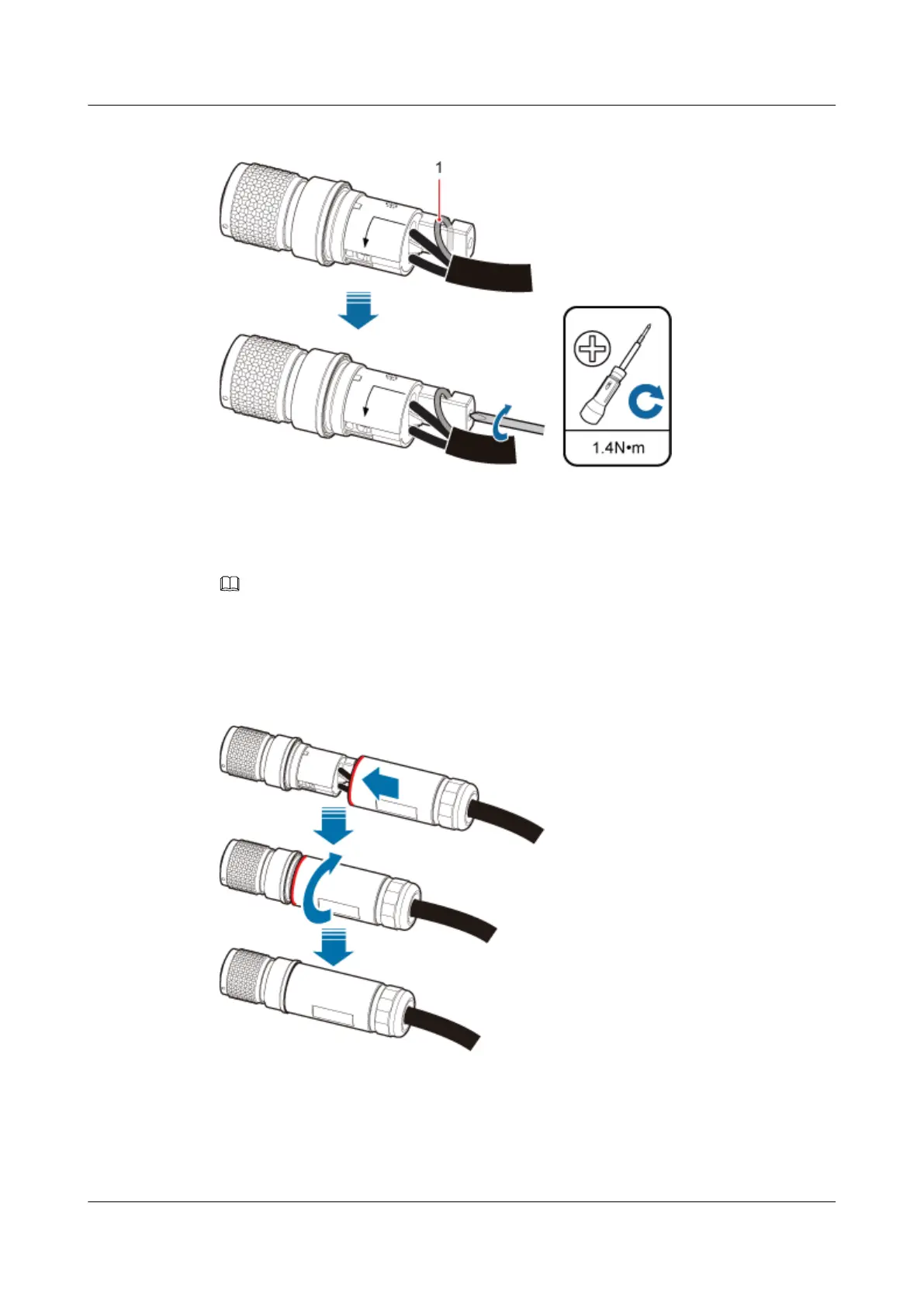

Figure 5-17 Compacting the shield layer
1. Shield layer
NOTE
Cut the extra shield layer using the diagonal pliers.
Step 7 Tighten the socket and enclosure until the red line on the socket is invisible, as shown in
Figure 5-18.
Figure 5-18 Tightening the socket and enclosure
Step 8 Pre-tighten the nut and socket and further tighten the nut using a torque wrench (opening
width: 28 mm), as shown in Figure 5-19.
