Step 4 Crimp the joint parts of the bare crimping terminal and the conductor, as shown in Figure
5-25.
NOTE
The shapes of crimped parts may vary with the crimping dies.

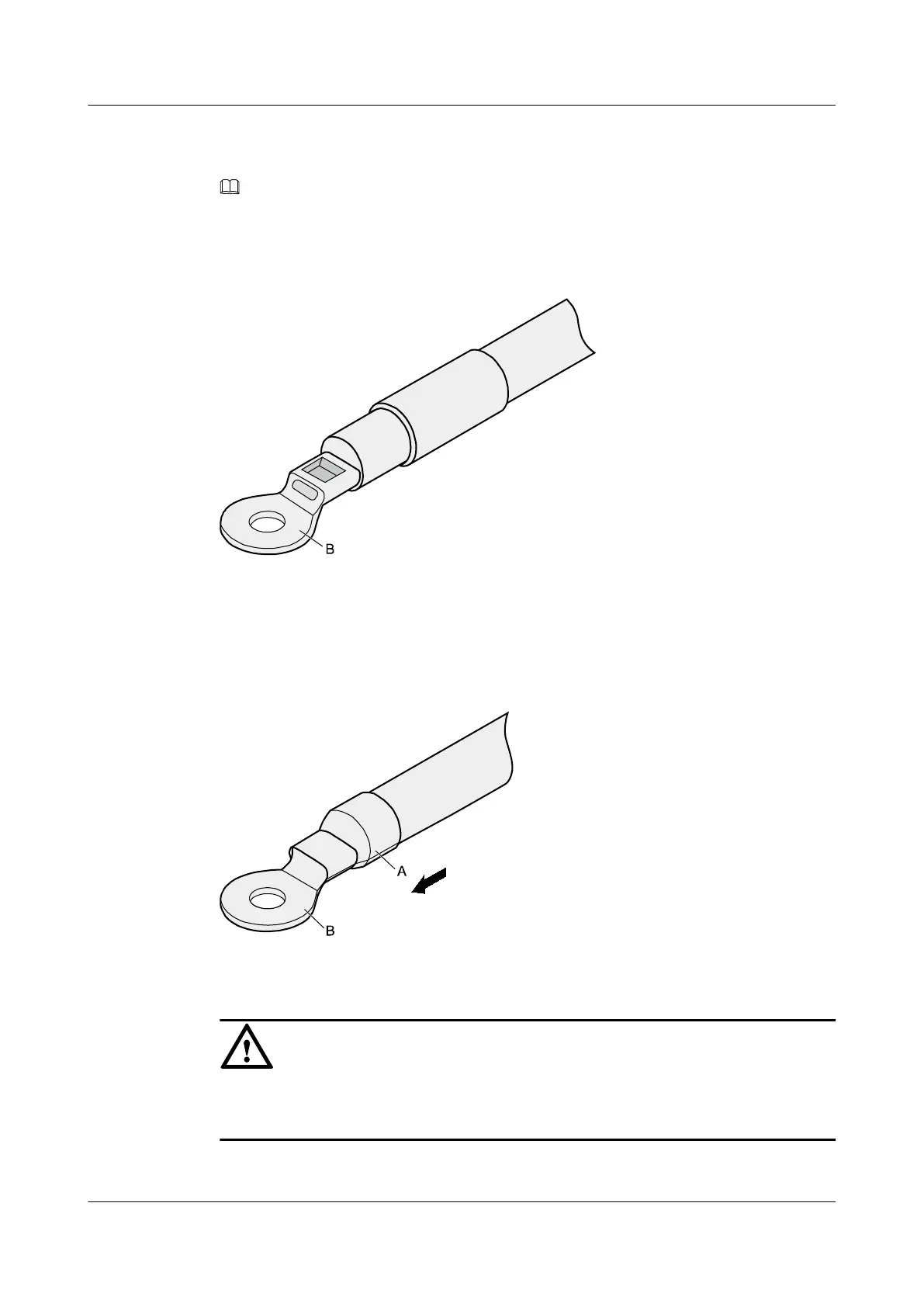

Figure 5-25 Crimping the joint parts of the bare crimping terminal and the conductor (OT
terminal)
Step 5 Push the heat shrink tubing (A) toward the connector until the tube covers the crimped part,
and then use a heat gun to heat the tube, as shown in Figure 5-26.
Figure 5-26 Heating the heat shrink tubing (OT terminal)
NOTICE
Stop heating the shrink tubing when the connector is securely locked in the shrink tubing. Do
not heat the shrink tubing too long as this may damage the insulation coating.
----End
