Table 5-6 Connections between wires and pins (using a straight-through cable as an example)
Matching Pins of Wires Wire Color
1 White-Orange
2 Orange
3 White-Green
4 Blue
5 White-Blue
6 Green
7 White-Brown
8 Brown

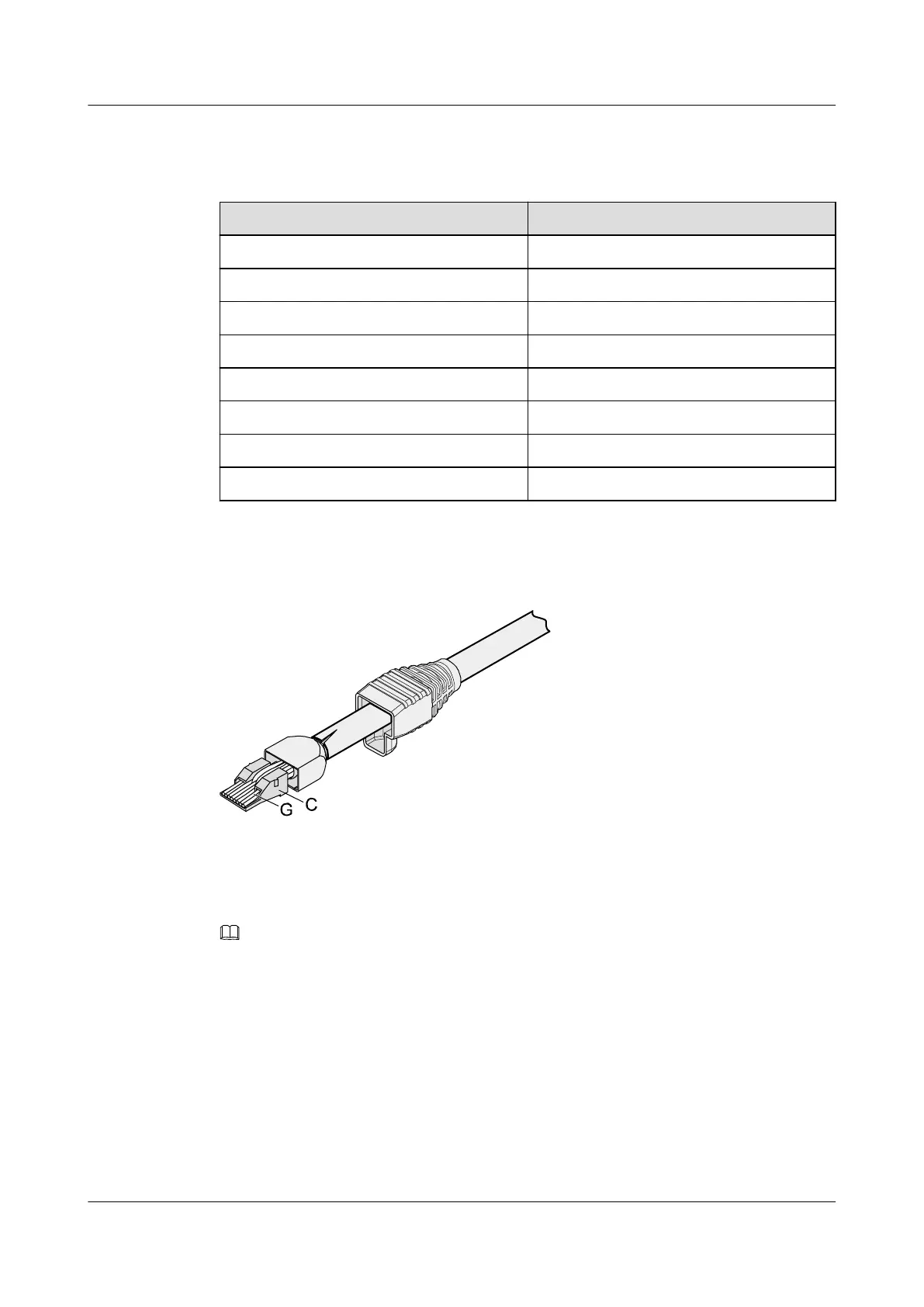

Step 7 Cut off the surplus cables along the lower edge of the wire holder, as shown in Figure 5-45.
Figure 5-45 Cutting off surplus cables
Step 8 Put the connector body onto the wire holder and turn the metal shell by 90°, as shown in
Figure 5-46.
NOTE
Ensure that the wire holder is in good contact with the connector body.
