Procedure
Step 1 Cut the feeder cable, as shown in Figure 5-90.

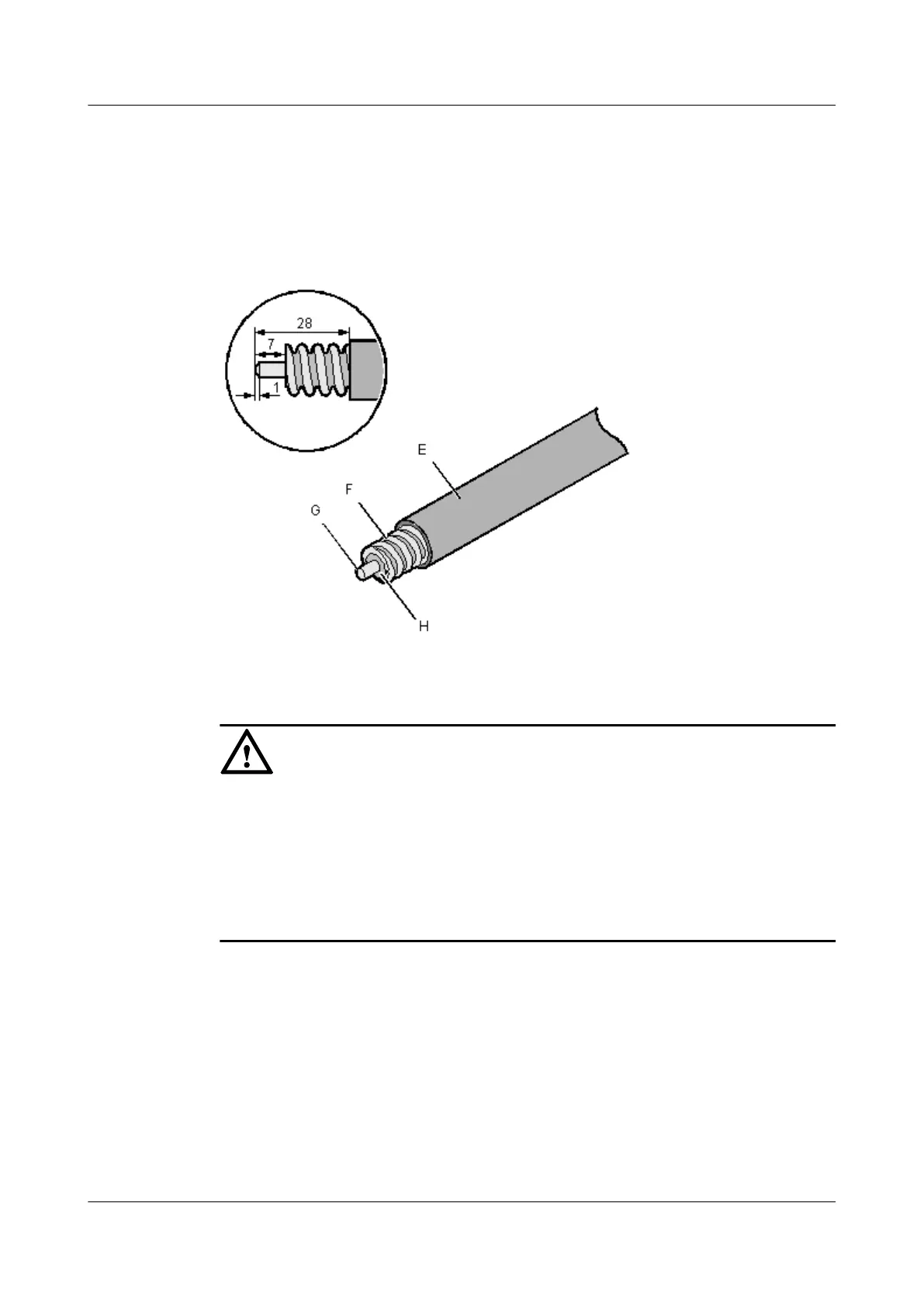

Figure 5-90 Cutting a feeder cable (unit: mm)
NOTICE
l Ensure that the feeder cable is cut with reference to the guide in the package box of the
connector.
l After you cut the feeder cable, ensure that the cross-section of the outer conductor is
smooth, intact, and round.
l Ensure that the feeder cable is cut at the wave crest of the outer conductor.
l The inner conductor must be beveled, as shown in Figure 5-90.
Step 2 Use a brush to remove the dirt on the cross-section of the feeder cable.
Step 3 Feed the feeder cable into the heat-shrink tubing, and cover the outer conductor of the feeder
cable with the O-ring seal, as shown in Figure 5-91.
