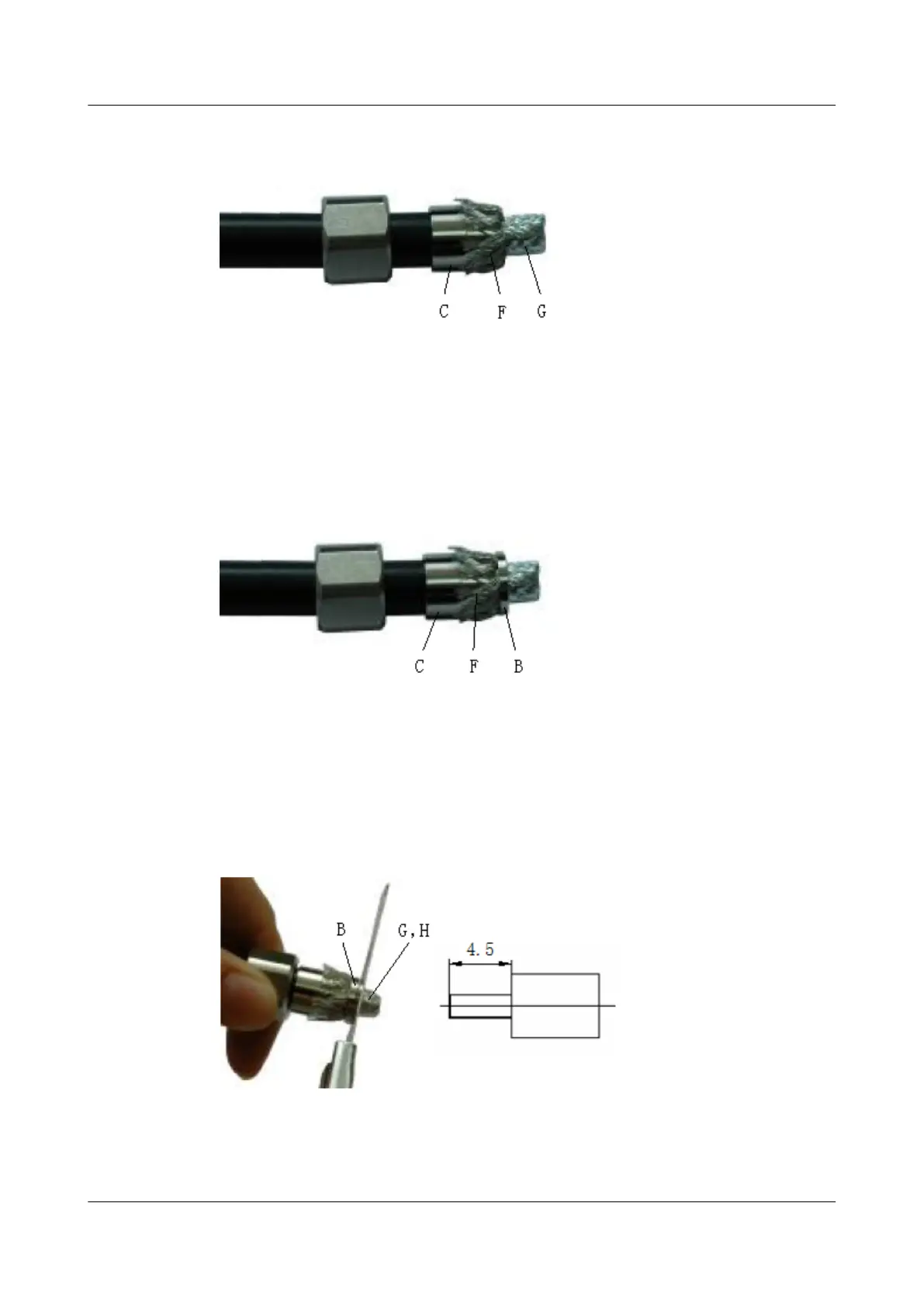

Figure 5-100 Peeling off the shielded layer
Step 5 Install the lining (B) on the feeder and tightly crimp the shielded layer (F) of the feeder, as
shown in Figure 5-101.
Figure 5-101 Installing the lining
Step 6 Cut off the aluminum foil (G) and insulation medium (H) along the end face of the lining (B).
Ensure that the length of the conducting line inside the feeder is 4.5 mm, as shown in Figure
5-102.
Figure 5-102 Cutting off the aluminum foil and insulation medium of the feeder
Step 7 Use the file to taper the internal conductor (I) of the feeder, as shown in Figure 5-103.
