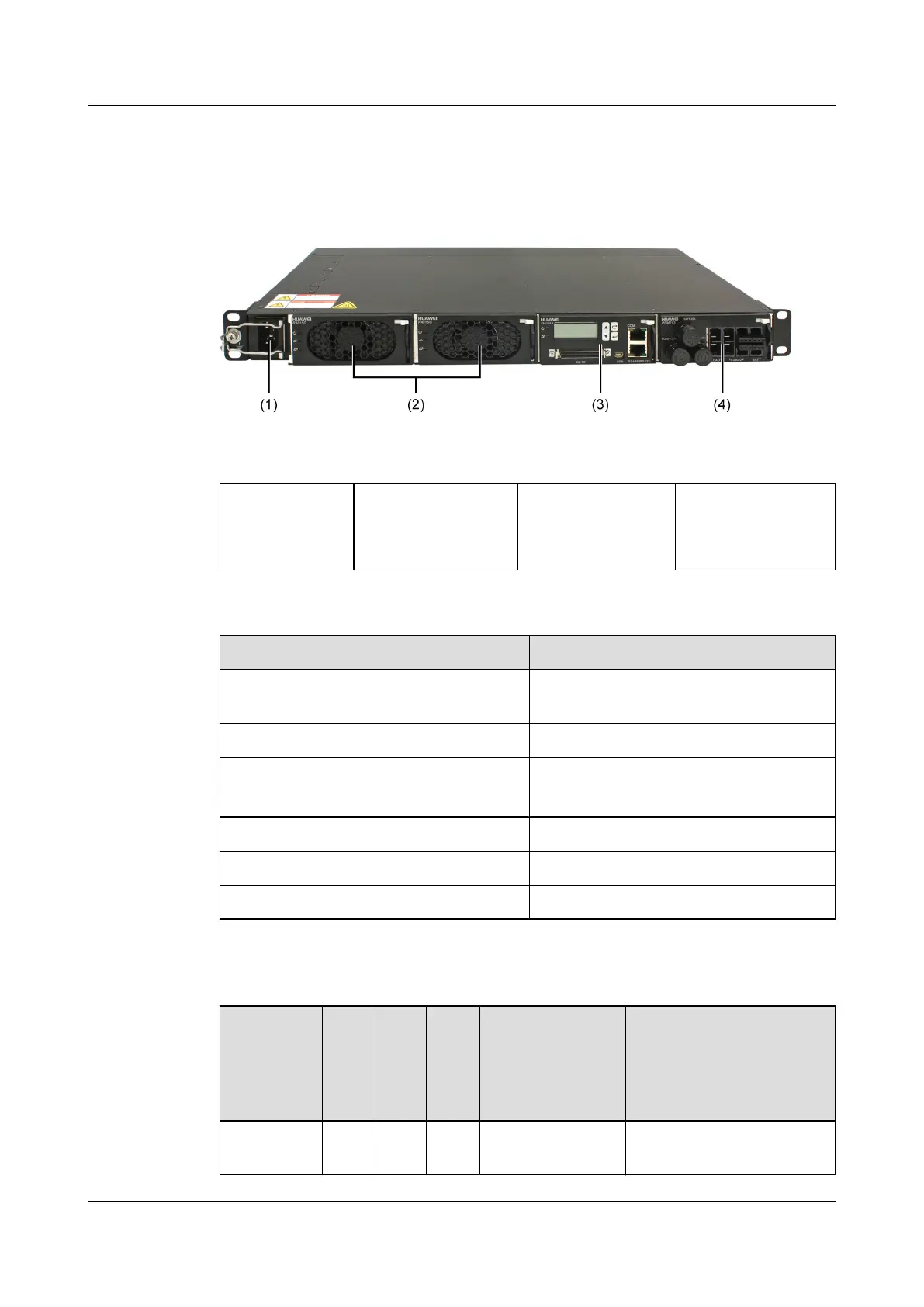

Figure 1-9 shows the panel of an AC power supply system.
Figure 1-9 Panel of an AC Power Supply System
1. AC input
module
2. R4815G1
rectification module
(two)
3. SMU01A
monitoring module
4. PDM213 power
distribution module
Table 1-7 Specifications of the AC Power Supply Systems
Item Specification
Dimensions (H x W x D) 43.6 mm x 442 mm x 255 mm (1.72 in. x
17.40 in. x 10.04 in.)
Weight 7 kg (15.44 lb)
Rated voltage 100 V AC to 120 V AC (low-voltage)
200 V AC to 240 V AC (high-voltage)
Input voltage range 90 V AC to 276 V AC
Maximum input current 10 A
Maximum output power 870 W/module
Table 1-8 LED Description
LED Colo
r
Nor
mal
Stat
us
Abn
orm
al
Stat
us
Exception Cause Suggestion
Running
LED
Gree
n
on off No AC input exists. Ensure that the AC input
voltage is normal.
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description 1 CX600-X1-M4 Hardware Description
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
