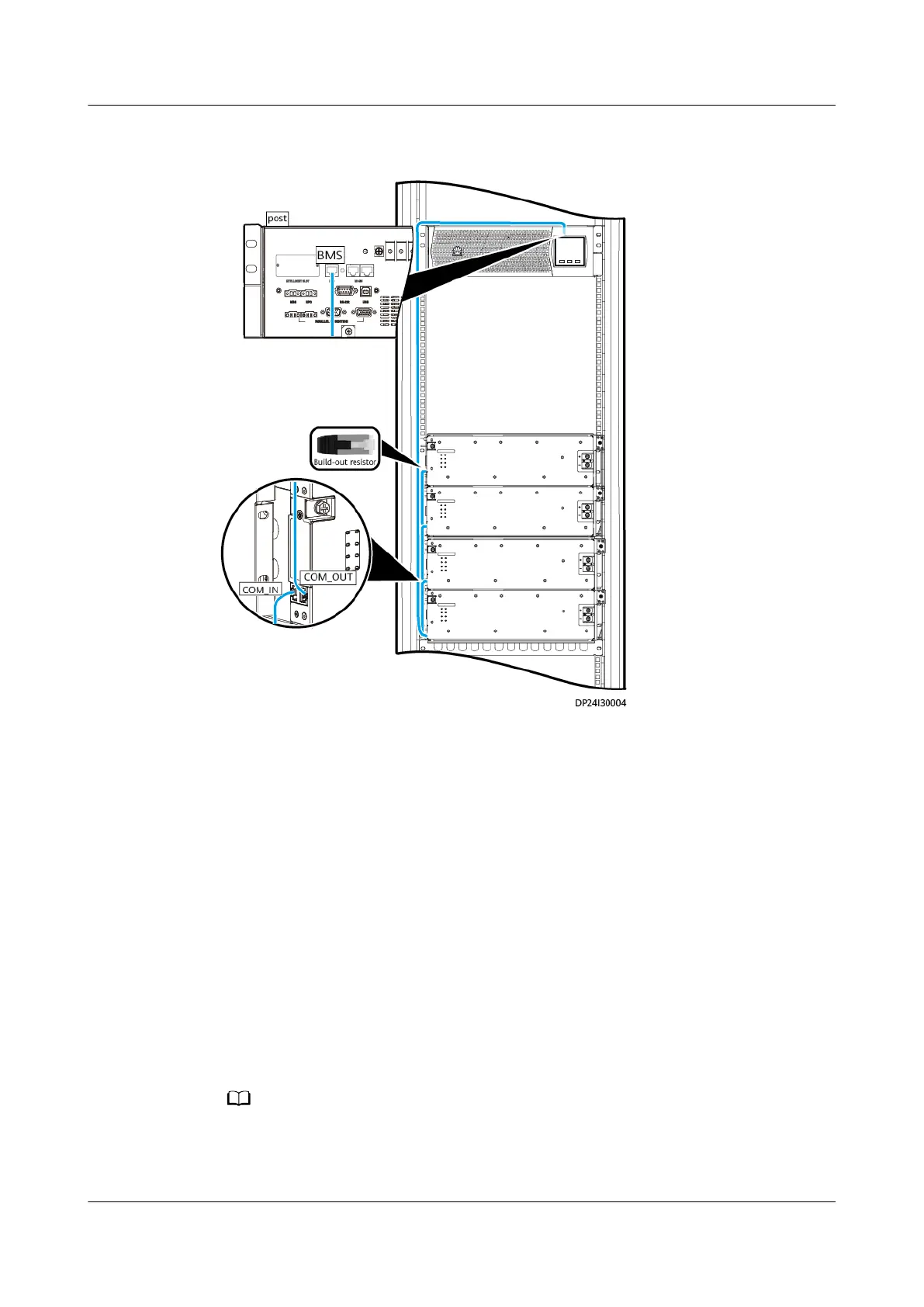

Figure 4-61 Connecting communications cables between lithium batteries and the
UPS
----End
4.3.3 Management System Cable Connection
4.3.3.1 Connecting VCN Cables
Prerequisites
Cables have been prepared.
Procedure
Step 1 Connect one end of the ground cable to the ground terminal on the device and
the other end to the ground point on the cabinet. A Phillips screwdriver and M4
screws are required. The ground cable is a yellow-and-green cable of 16–18 AWG.
NO TE
The customer needs to prepare the ground cable.
Step 2 Connect one end of the network cable to any GE network port on the VCN.
