Supports the aisle emergency ventilation linkage logic. The cabinet doors are
opened by default under linkage.
If the protected area of the re extinguishing system is inside the smart
module, when a smoke alarm is generated, the door of the linked cabinet
does not open. If the door is opened, an alarm (door open alarm) is
generated.
If the protected area of the
re extinguishing system is outside the smart
module, when a smoke alarm is generated, the rear door of the linked cabinet
is opened.
3.4.3 Key Hardware Devices
3.4.3.1 ECC800-Pro
3.4.3.1.1 Product
Conguration
The ECC800-Pro data center controller is used to monitor the devices and
environment in the smart module. It consists of the power module and main
control module. You can insert and remove the power module.

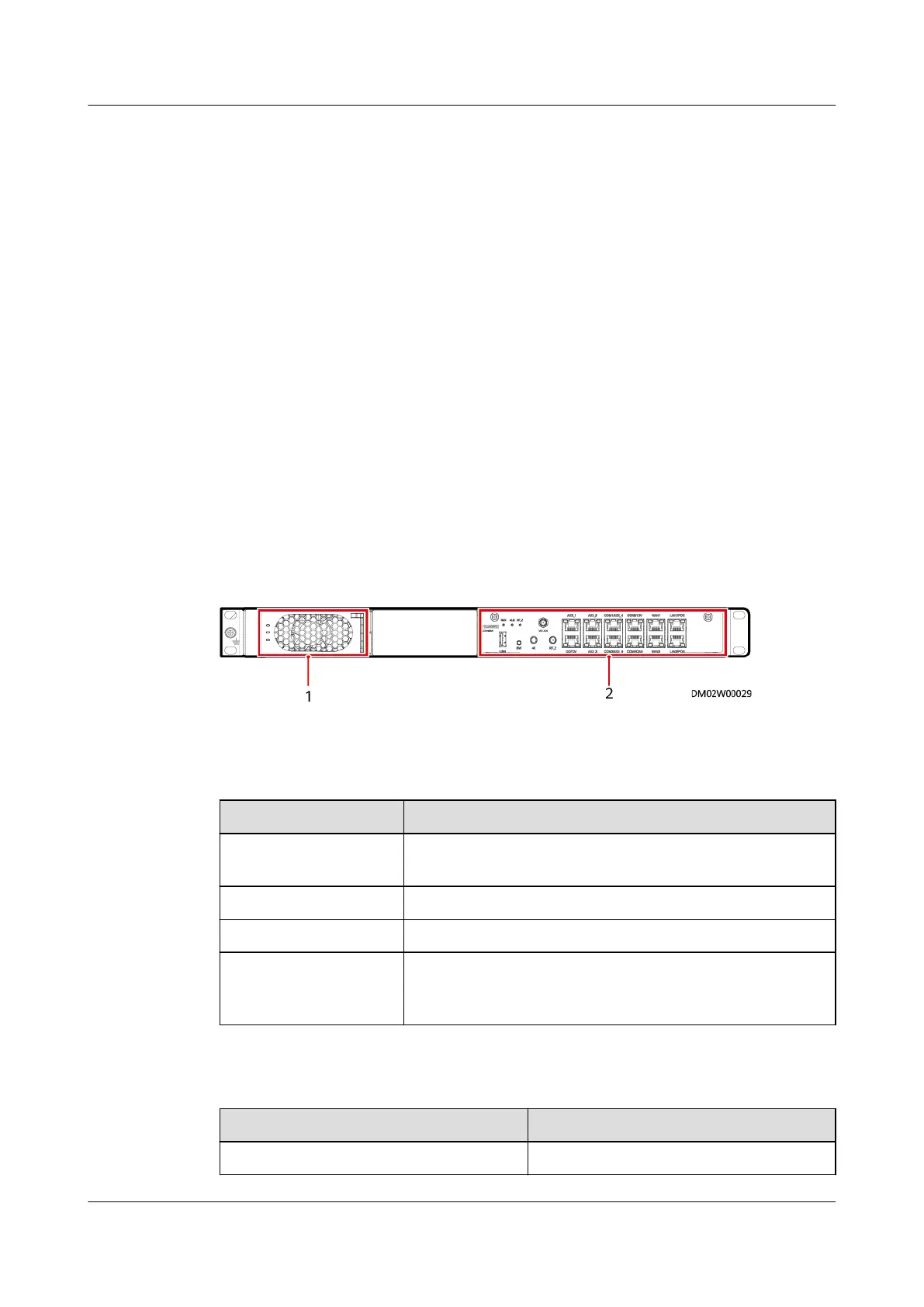

Figure 3-7 ECC800-Pro
(1) Power module
(2) Main control module
Table 3-9 ECC800-Pro environmental specications
Item
Specications
Operating
temperature
–20°C to +50°C
Storage temperature –40°C to +70°C
Relative humidity 5%–95% RH (non-condensing)
Altitude 0–4000 m (When the altitude is between 3000 m and
4000 m, the temperature decreases by 1°C for each
additional 200 m.)
Table 3-10 ECC800-Pro structural
specications
Item
Specications
Dimensions (L x W x H) 442 mm x 330 mm x 43.6 mm
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 3 System Architecture
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 28
