4.1.3 Site Equipment Preparation
● All cabinets and devices have been delivered to the site and checked against
the delivery list.
● Cabinets and devices need to be transported to the
specied positions based
on the detailed equipment room layout diagram and unpacked for further
installation.
Pay attention to the following when unpacking batteries:
● Insert a at-head screwdriver into the gap between the wooden crate and its
top cover. Then pry o the top cover along the external edge of the cover until
the cover can be taken out from the crate.
● Be careful to prevent your hands from being hurt by nails during unpacking.
4.1.4 Installation Scenarios
Cabinet Internal Layout

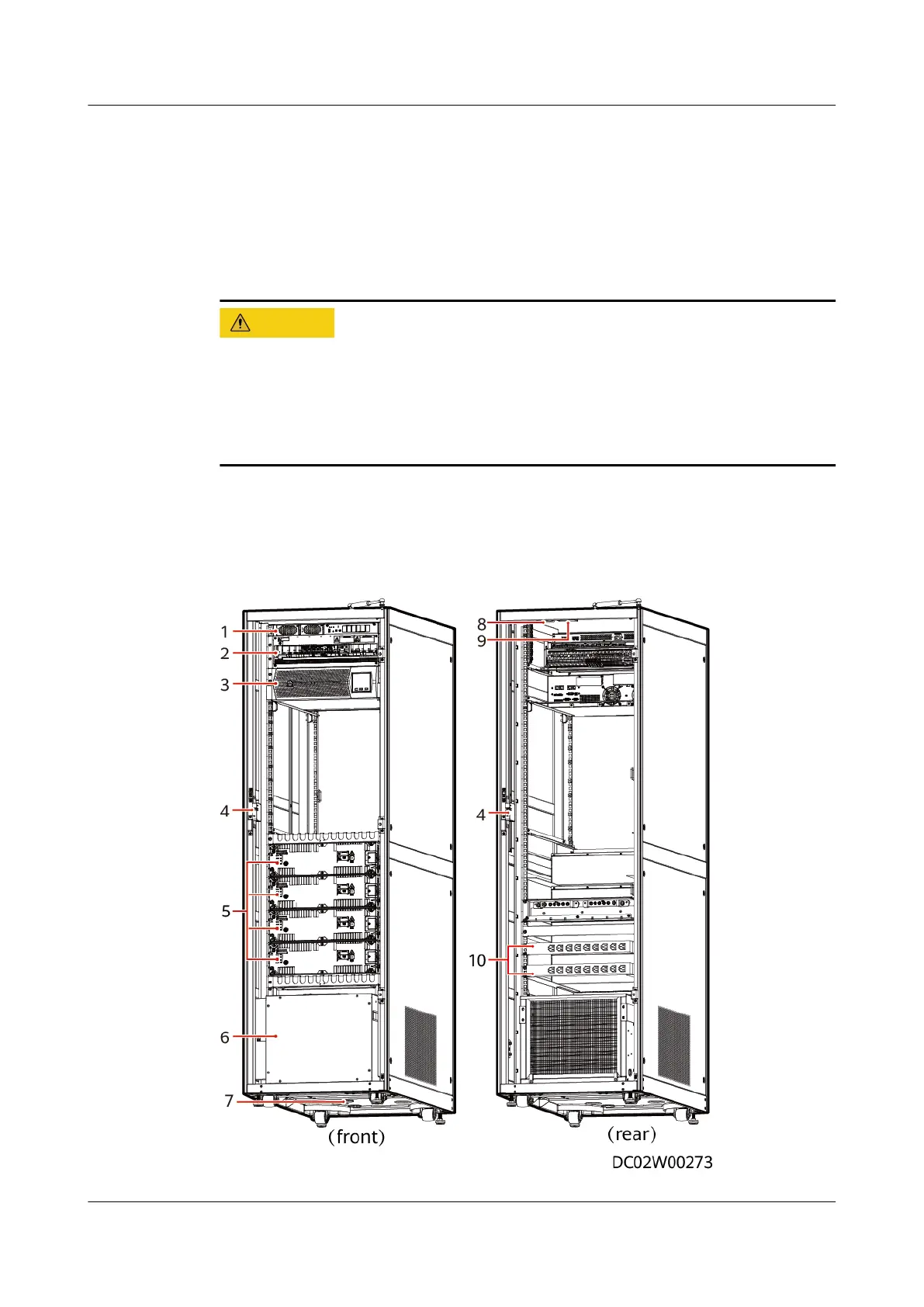

Figure 4-2 Component layout in the cabinet scenario
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 4 Installation Guide
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 58
