3.4.3.2.2 T/H Sensor

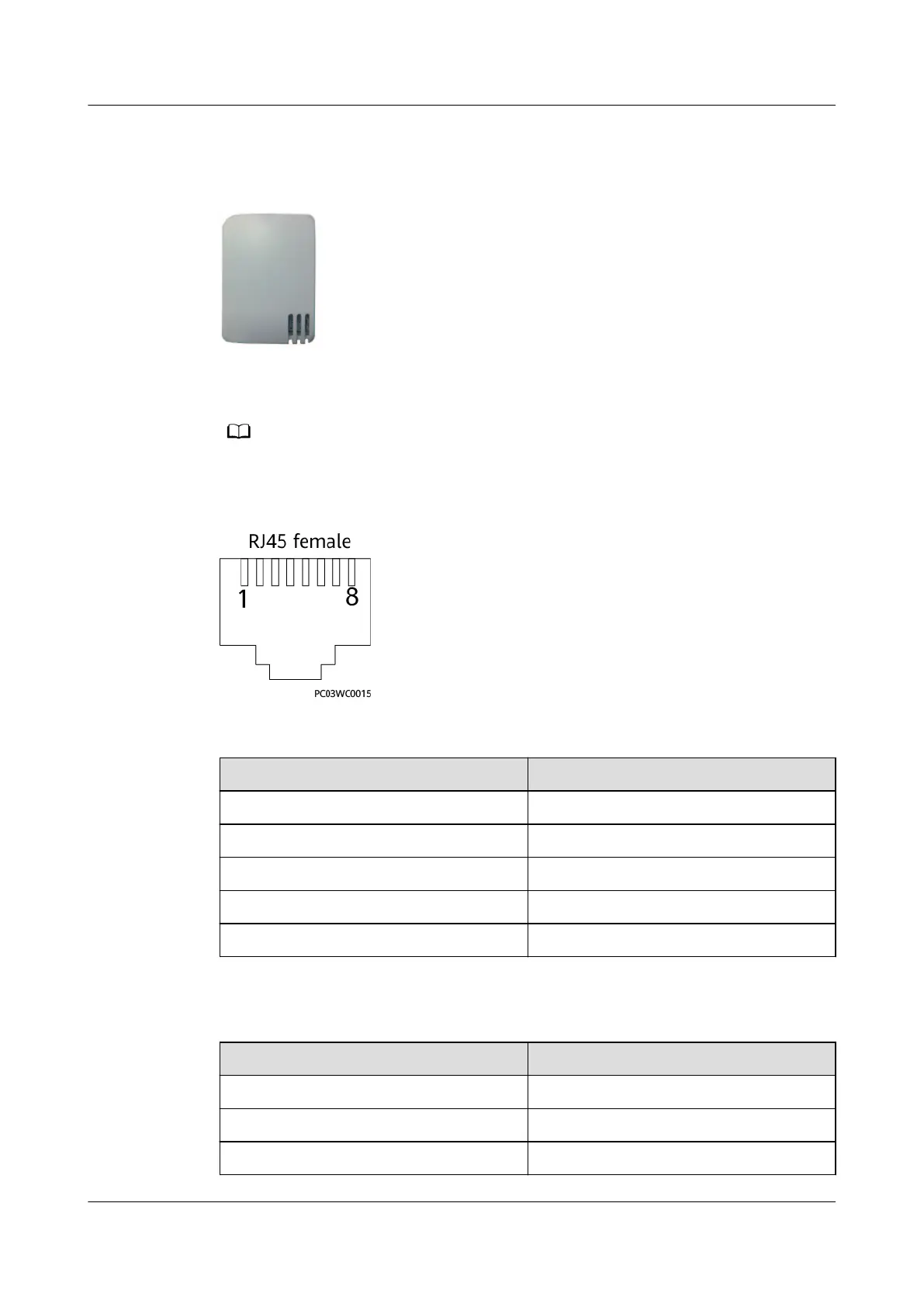

Figure 3-13 Appearance
The T/H sensor uses an RJ45 connector.
NO TE
The appearance of the T/H sensor depends on the onsite delivery.
Figure 3-14 Pins of an RJ45 connector
Table 3-26 RJ45 port pin denitions
Pin
Description
Pin1 or Pin 4 A
Pin2 or Pin 5 B
Pin3 V+
Pin6 V-
Pin7 Reserved
Table 3-27 T/H sensor specications
Item
Specications
Temperature measuring range –20°C to +70°C
Temperature accuracy ±1°C
Humidity measuring range 5%–95% RH
