Huawei FusionModule500 Smart User Manual

Item Specications
Weight 6.3 kg (with a single power module
and a main control module)
Color Black
Installation requirements Can be installed in a 1 U space in a
standard 19-inch cabinet
Environmental protection RoHS5, REACH, WEEE

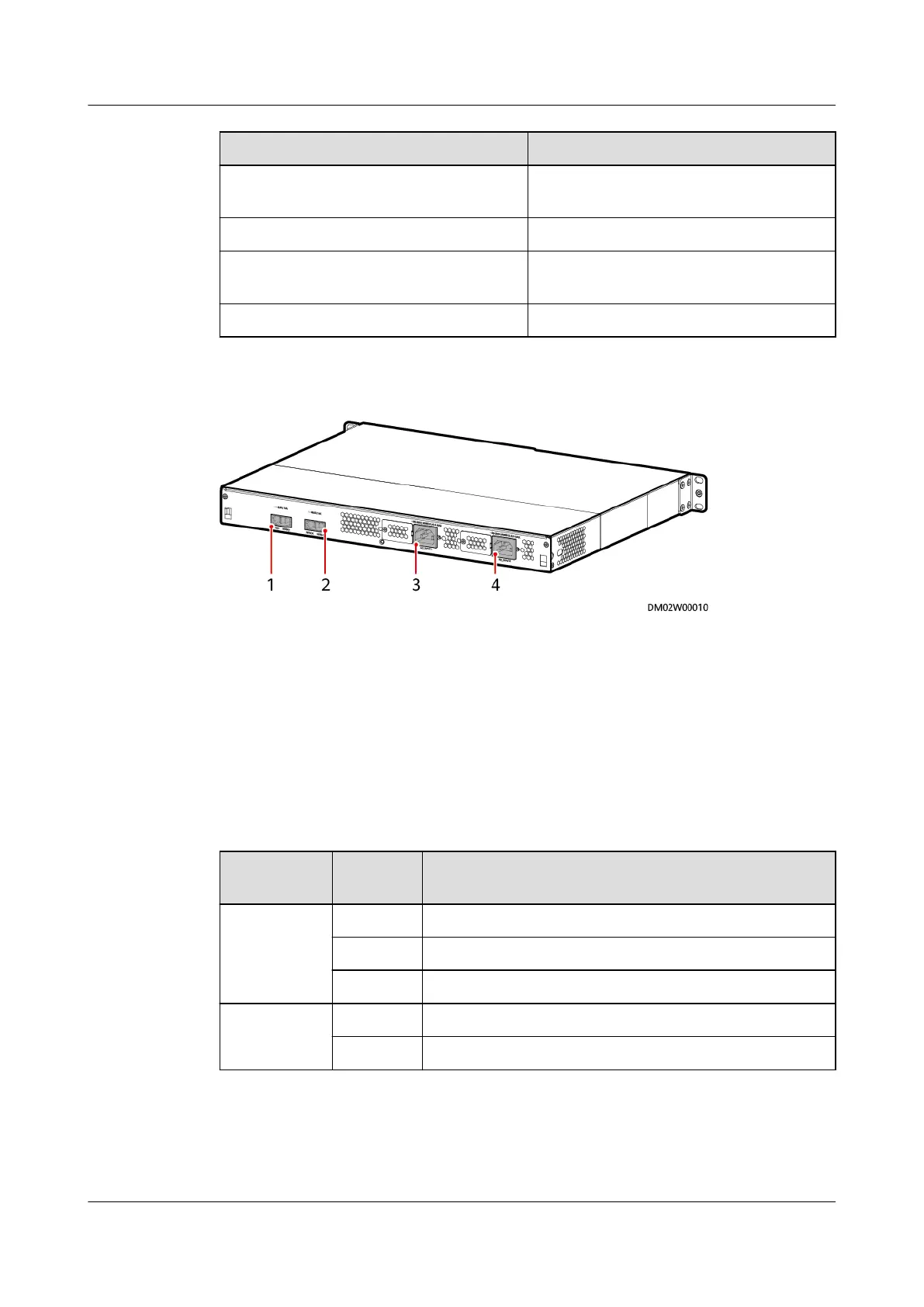

Figure 3-8 ECC800-Pro (rear view)
(1) 53.5V DC_OUT1
(2) 53.5V DC_OUT2 (3) AC_INPUT1
(4) AC_INPUT2
Power Port
The ECC800-Pro provides four power ports, including two AC input ports
(AC_INPUT1 and AC_INPUT2) and two DC output ports (DC_OUTPUT1 and
DC_OUTPUT2). Table 3-11 provides the power port pin
denitions.
Table 3-11 Power port pin denitions
Port Type
Pin
sequence
Description
AC Pin1 L
Pin2 PE
Pin3 N
DC Pin1 48V+
Pin2 48VGND
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 3 System Architecture
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 29
