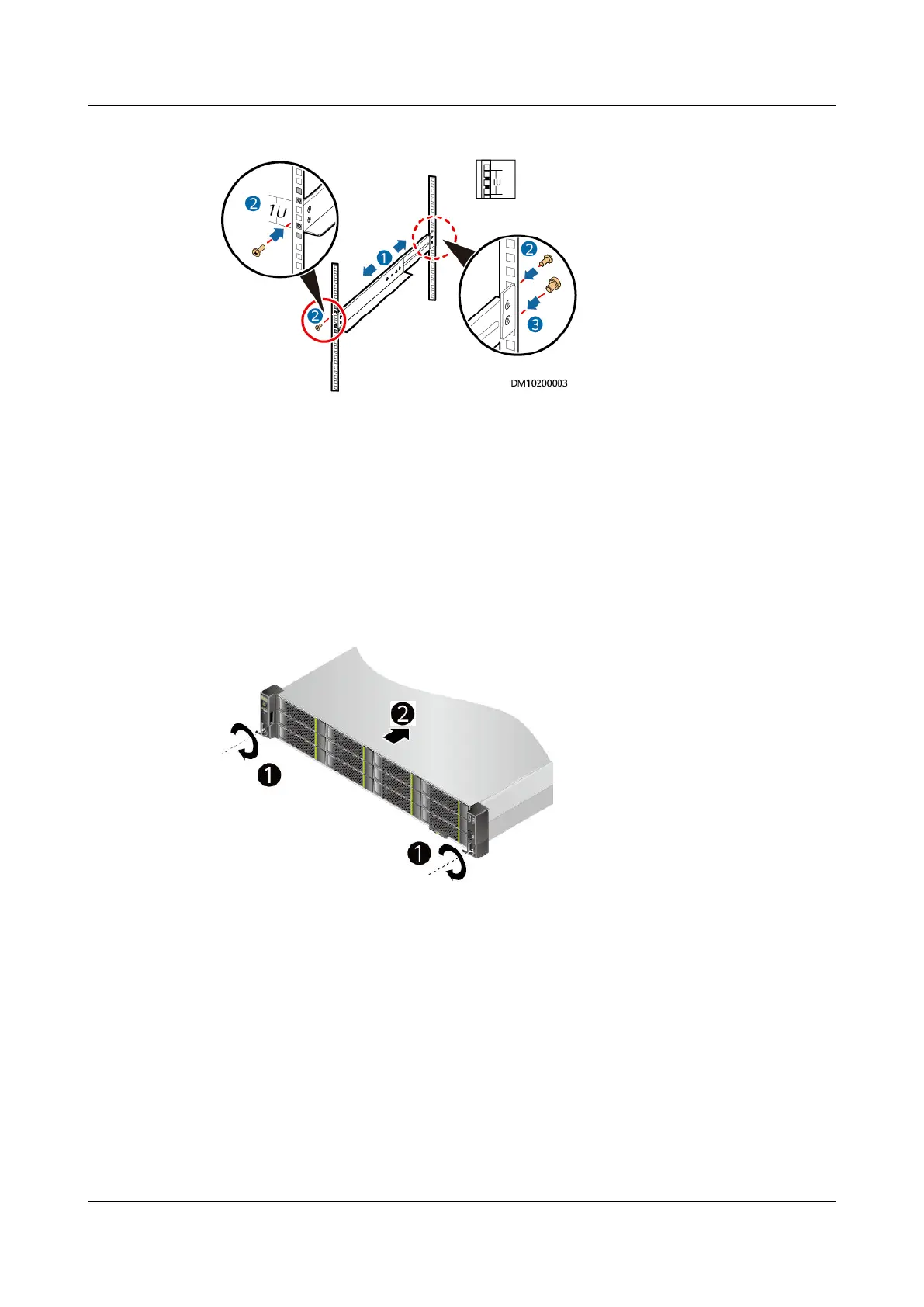

Figure 4-25 Installing guide rails
1. Place a guide rail horizontally at the installation position in the cabinet.
2. Tighten the screws to secure the guide rail.
3. Repeat the preceding steps to install the other guide rail.
Step 3 Arrange at least two people to lift the server, place the server on the guide rails,
and push it into the cabinet.
Step 4 When the two mounting ears on the server contact the mounting bars on the
rack, tighten the captive screws on the mounting ears to secure the server.
Figure 4-26 Installing a server
Step 5 Connect the server power cable.
1. Wear an ESD wrist strap or ESD gloves.
2. Connect one end of the power cable to the cable port on the AC power
module of the server.
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 4 Installation Guide
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 78
