Step 5 Remove the screw from the fan using a small wrench, and remove the outdoor fan blades, as
shown in Figure 5-41.

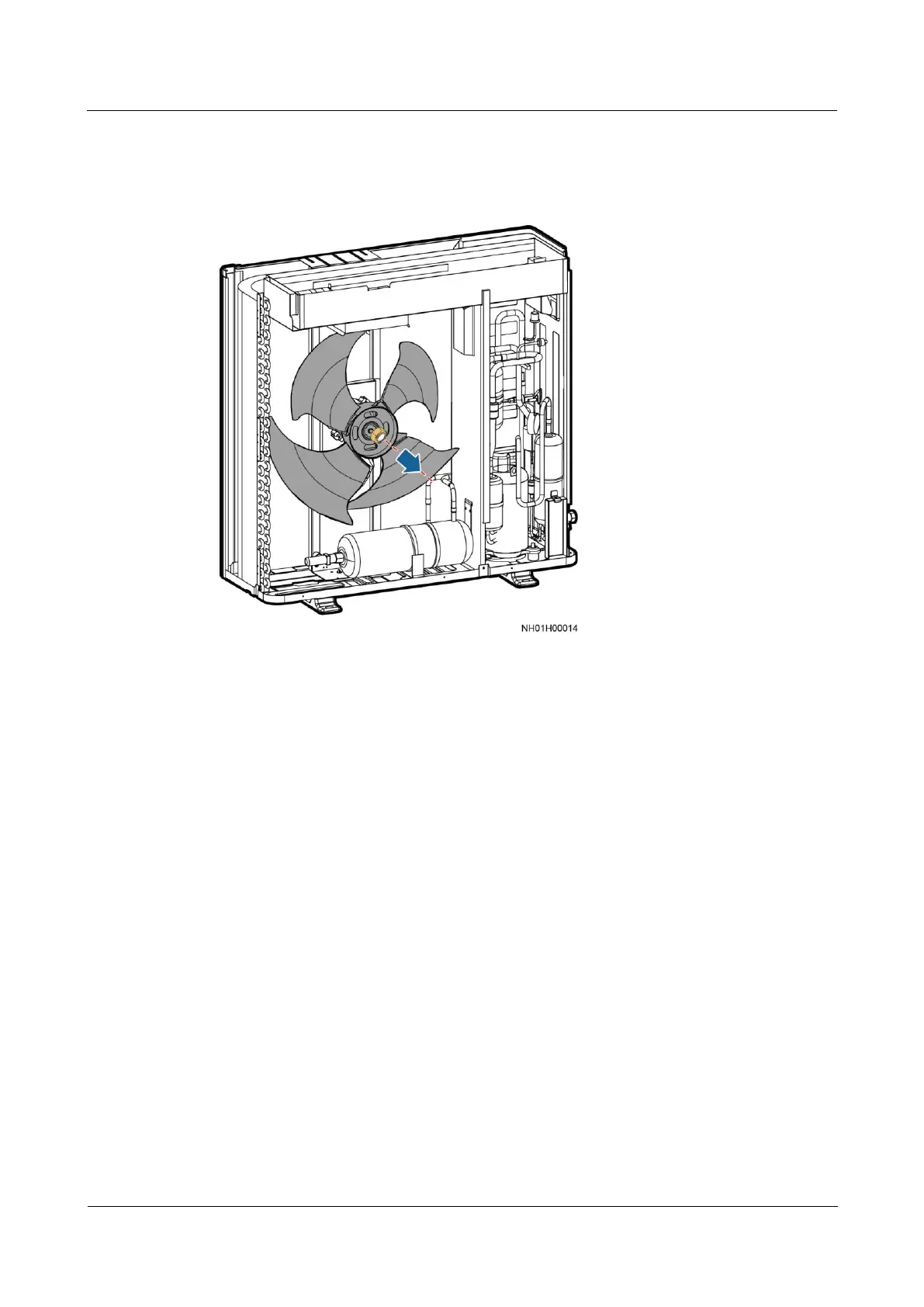

Figure 5-41 Removing the outdoor fan blades
Step 6 Install the new outdoor fan by performing the preceding steps in reverse order, and connect
the fan cable to the corresponding position in the electric control box.
Step 7 Secure the outdoor fan cable using cable ties.
Step 8 Install the blades, front panel, left front panel, and top cover.
Step 9 Clear up the outdoor fan total runtime.
Method 1: Log in to the ECC800 mobile phone or pad app as admin.
a. Choose Home.
b. Tap the cabinet that houses the air conditioner in the micro-module view.
c. Tap the air conditioner to be set in the cabinet layout diagram.
d. Choose Real-time Data > Perf Maint, clear up the outdoor fan total running time.
Method 2: Log in to the ECC800 WebUI as admin. Choose Monitoring > Air
Conditioner > NetCol5000-A0104 > Controls > Performance Maint Ctrl, clear up the
outdoor fan total running time.
----End
