Table 2-3 LOM ports
Chip Model Port Type Rate
Negotiation
Mode
Supported
Rates
Rates Not
Supported
X722 10GE optical
port
Auto-
negotiation
10000 Mbit/s
(full duplex)
10000M 10/100/1000
M
GE electrical
port
Auto-
negotiation
1000 Mbit/s
(full duplex)
1000M 10/100M
● Use Computing Product Compatibility Checker to obtain information
about the cables and optical modules supported by the LOM ports.
● The LOM ports do not support forced rates.
● The electrical LOM ports cannot be connected to power over Ethernet (PoE)
devices (such as a switch with PoE enabled). Connecting a LOM port to a PoE
device may cause link communication failure or even damage the NIC.
● The electrical LOM ports do not support SR-IOV.
● Forcibly powering
o a server will cause intermittent NC-SI disconnection
and disable the Wake on LAN (WOL) function of the LOM ports. To restore
the NC-SI connection, refresh the iBMC WebUI.
2.1.4 Installation Positions
An X6000 can house a maximum of four XH321 V5 nodes in a 2U chassis.

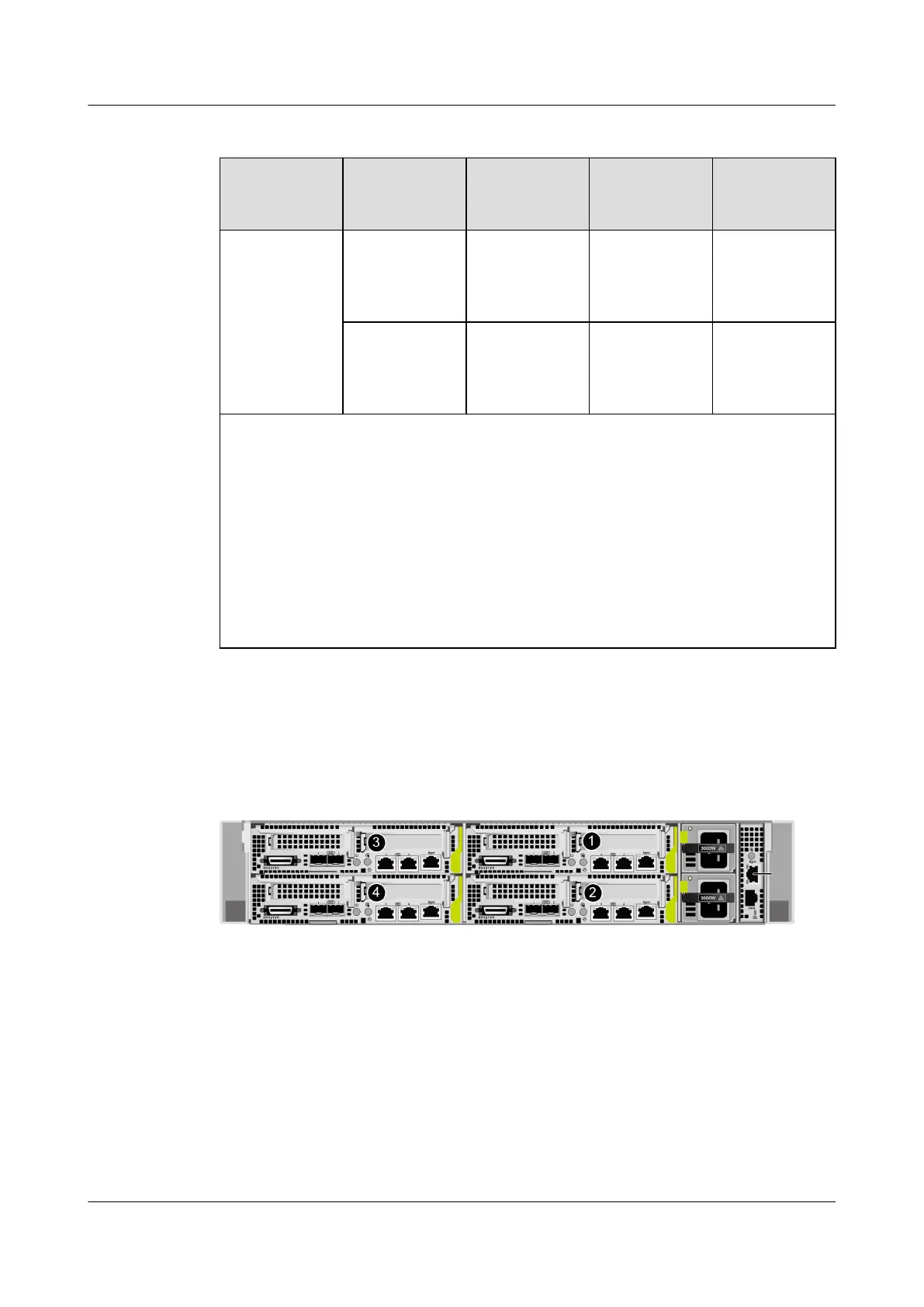

Figure 2-5 Installation positions
2.2 Processor
● The server supports one or two processors.
● If only one processor is required:
– Install it in socket CPU1.
– NVMe SSDs are not supported.
● The processor heat sink varies depending on the processor power:
– If the maximum processor power is 165 W, use a narrow conjoined heat
sink.
