Huawei FusionServer Pro XH321 V5 - Installing the Screw-In RAID Controller Card

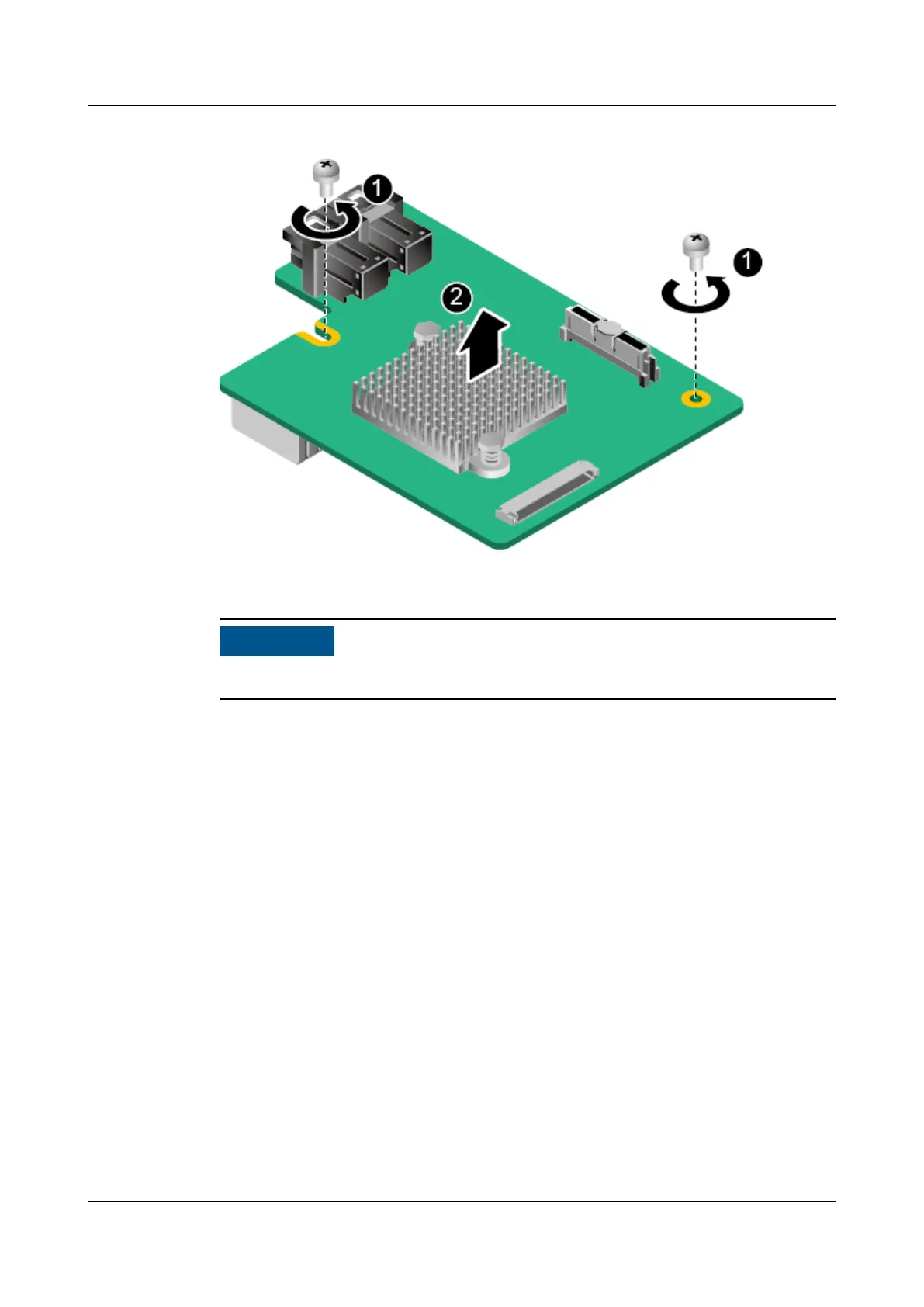

Figure 8-17 Removing a screw-in RAID controller card
Step 9 Place the removed component in an ESD bag.
NO TICE
Place only one component in an ESD bag.
----End
8.4.4 Installing the Screw-in RAID Controller Card
Procedure
Step 1 Power
o the server node.
For details, see 8.3.2 Power-O Procedure.
Step 2 Remove the server node.
For details, see 8.3.3 Removing an XH321 V5.
Step 3 Place the server node on the ESD workstation.
Step 4 Take the component out of its ESD bag.
Step 5 Check whether a supercapacitor is
congured.
● If yes, go to Step 6.
● If no, go to Step 7.
Step 6 Install the supercapacitor.
For details, see 8.4.6 Installing the Supercapacitor.
