Step 3 Place the server node on the ESD workstation.
Step 4 Determine the position of the screw-in RAID controller card.

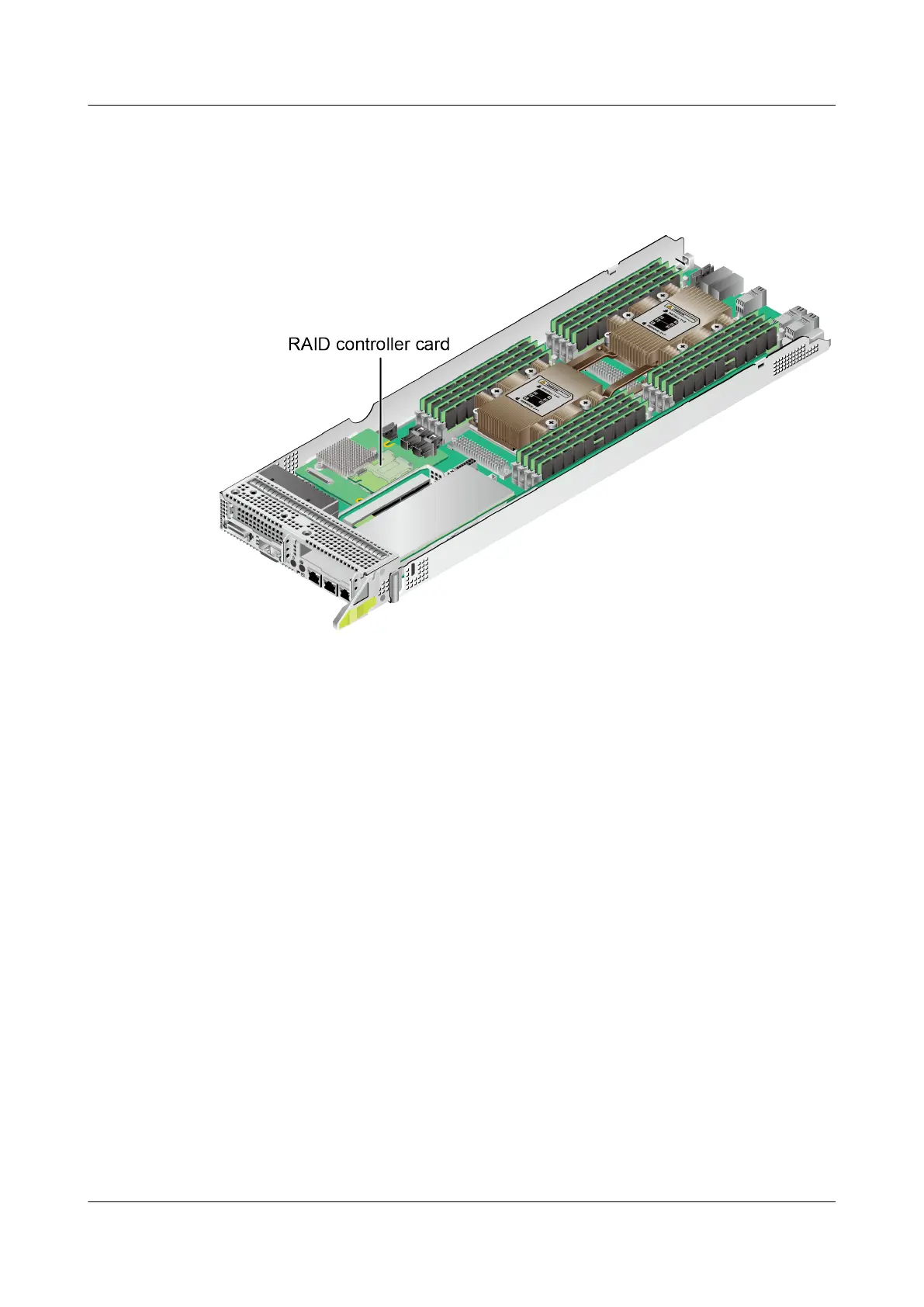

Figure 8-16 Position of the screw-in RAID controller card
Step 5 Check whether a supercapacitor is congured.
● If yes, go to Step 6.
● If no, go to Step 7.
Step 6 Remove the supercapacitor.
For details, see 8.4.5 Removing the Supercapacitor (Server with a Screw-in
RAID Controller Card).
Step 7 Remove the cable from the RAID controller card.
For details, see 7 Internal Cabling.
Step 8 Remove the RAID controller card.
1. Loosen the screws that secure the RAID controller card. See (1) in Figure
8-17.
2. Remove the RAID controller card from the connector on the mainboard. See
(2) in Figure 8-17.
FusionServer Pro XH321 V5 Server Node
Maintenance and Service Guide 8 Parts Replacement
Issue 17 (2021-03-09) Copyright © Huawei Technologies Co., Ltd. 55
