Huawei FusionServer Pro XH321 V5 - Removing the Screw-In RAID Controller Card

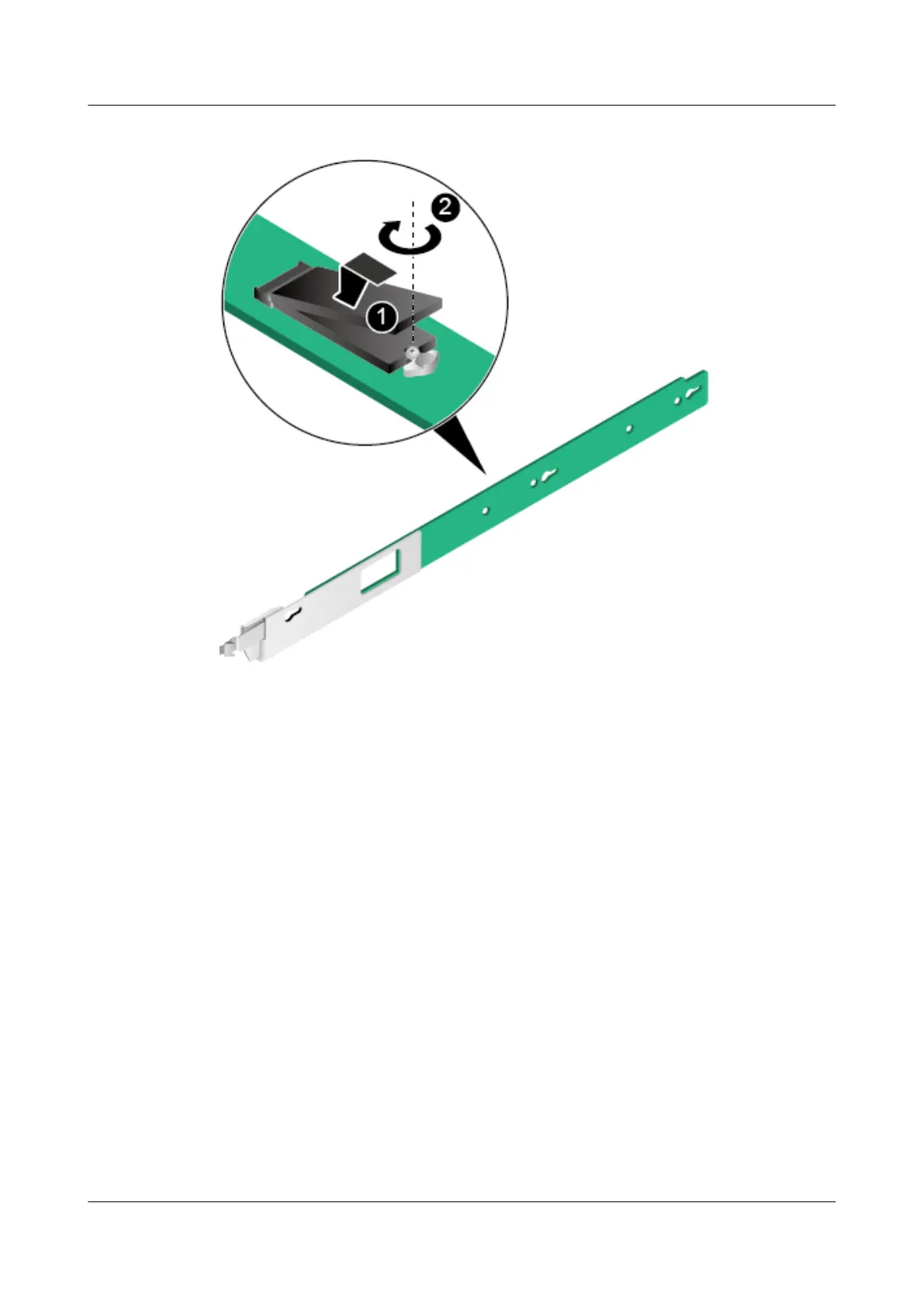

Figure 8-15 Installing an M.2 SSD
Step 9 Install the TPM.
For details, see 8.4.16 Installing the TPM.
Step 10 Install the air duct.
For details, see 8.4.24 Installing the Air Duct.
Step 11 Install the server node.
For details, see 8.3.4 Installing an XH321 V5.
Step 12 Power on the server node.
For details, see 8.3.1 Power-On Procedure.
----End
8.4.3 Removing the Screw-in RAID Controller Card
Procedure
Step 1 Power
o the server node.
For details, see 8.3.2
Power-O Procedure.
Step 2 Remove the server node.
For details, see 8.3.3 Removing an XH321 V5.
FusionServer Pro XH321 V5 Server Node
Maintenance and Service Guide 8 Parts Replacement
Issue 17 (2021-03-09) Copyright © Huawei Technologies Co., Ltd. 54
