2.1.2 Indicators and Buttons
Positions

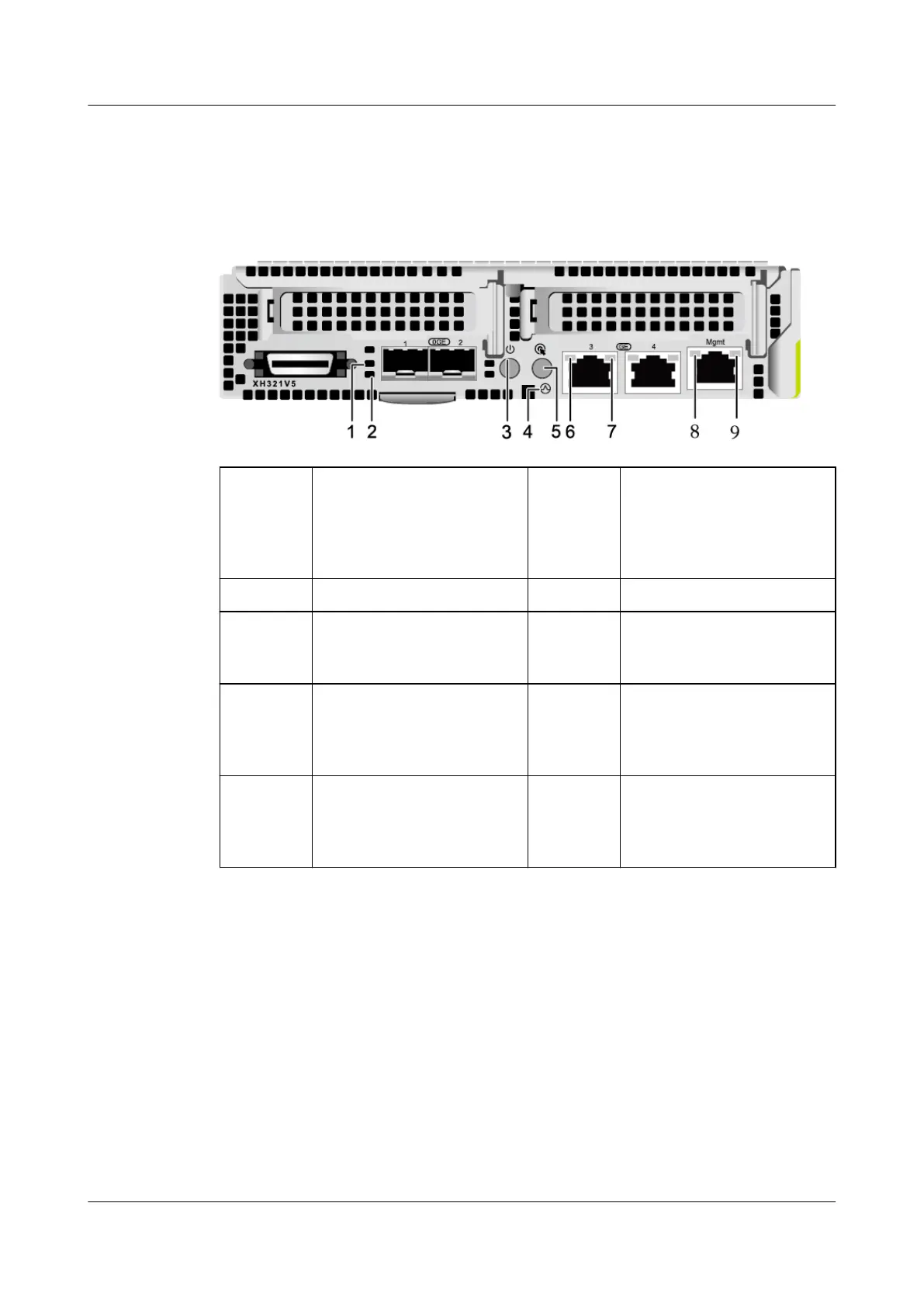

Figure 2-2 Indicators and buttons on the front panel
1 Data transmission rate
indicator for a 10GE
optical port
2 Connection status
indicator/Data
transmission status
indicator for a 10GE
optical port
3 Power button/indicator 4 Health status indicator
5 UID button/indicator 6 Data transmission status
indicator for a GE
electrical port
7 Connection status
indicator for a GE
electrical port
8 Data transmission status
indicator for the
management network
port
9 Connection status
indicator for the
management network
port
- -
