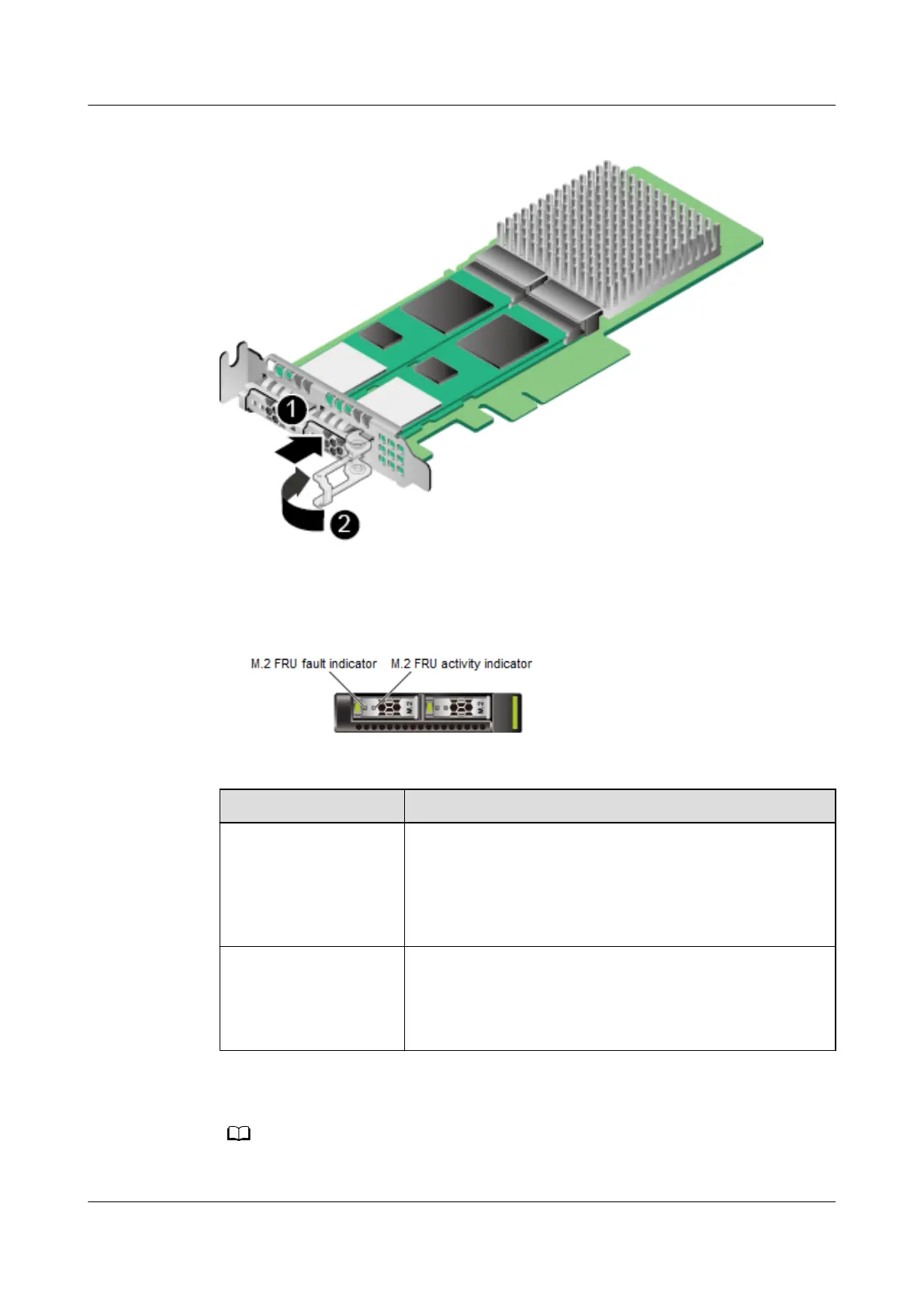

Figure 8-27 Installing an M.2 FRU
Step 4 Check the status of the M.2 FRU indicator on the Avago SAS3004iMR RAID
controller card.
Figure 8-28 M.2 FRU indicators
Table 8-2 Indicator status
Indicator
Description
M.2 FRU fault
indicator
● O: The M.2 FRU is running properly.
● Blinking yellow: The M.2 FRU is being located, or
RAID is being rebuilt.
● Steady yellow: The M.2 FRU is faulty or not
detected.
M.2 FRU activity
indicator
● O: The M.2 FRU is not in position or is faulty.
● Blinking green: Data is being read, written, or
synchronized.
● Steady green: The M.2 FRU is inactive.
Step 5 Restore the drive data.
Perform this operation only after you replace a drive.
FusionServer Pro XH321 V5 Server Node
Maintenance and Service Guide 8 Parts Replacement
Issue 17 (2021-03-09) Copyright © Huawei Technologies Co., Ltd. 65
