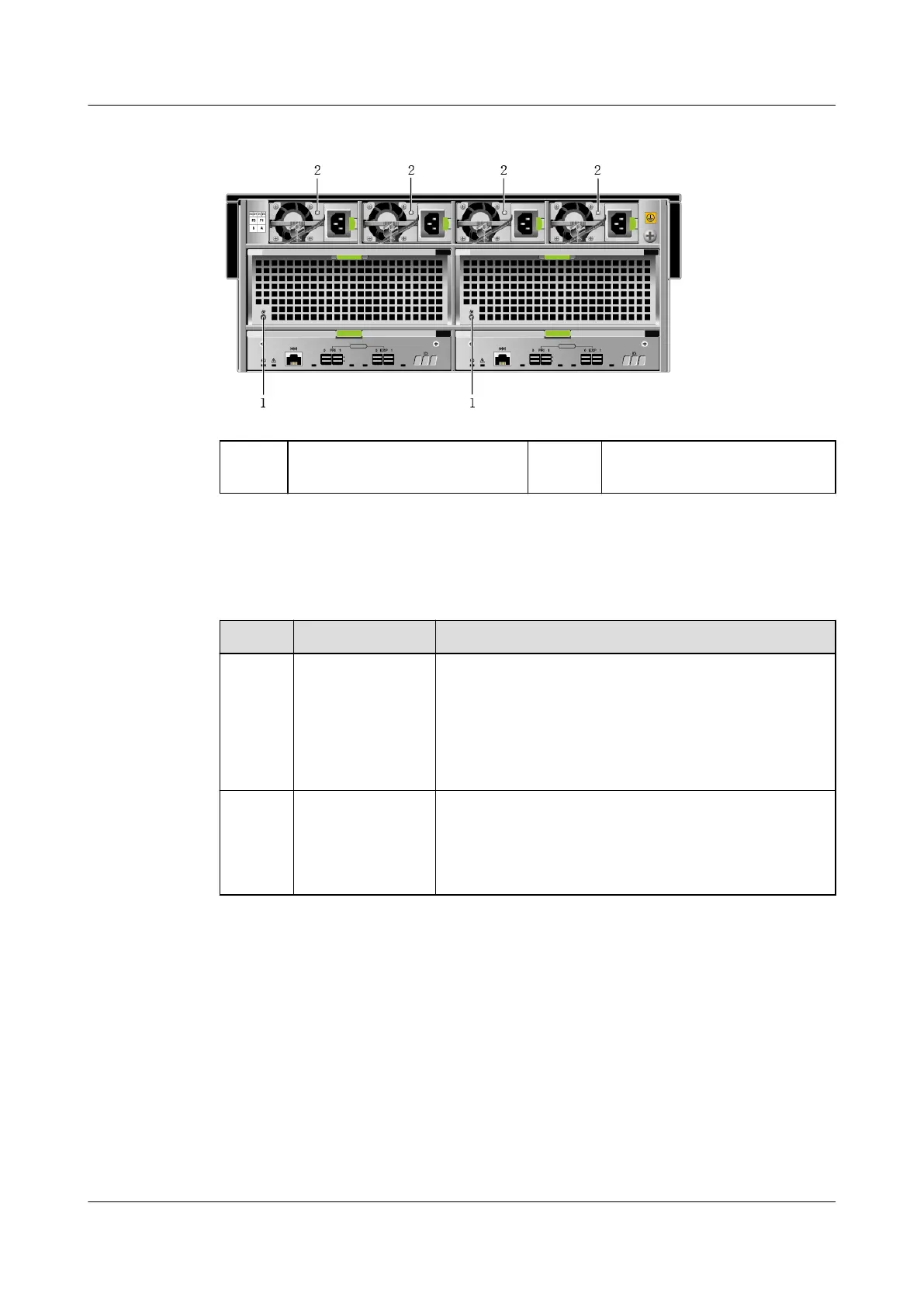

Figure 6-129 Indicators on the rear panel of a disk enclosure
1 Running/Alarm indicator on a
power module
2 Running/Alarm indicator on
a fan module
Table 6-8 describes the indicators on the rear panel of a data switch.
Table 6-8 Indicators on the rear panel of a disk enclosure
No.
Indicator Status and Description
1 Running/Alarm
indicator on a
power module
● Steady green: The power module is working
correctly.
● O: The power module is power o, or
undervoltage, overvoltage, overtemperature,
overcurrent, fan module failure, or short-circuit
occurs.
2 Running/Alarm
indicator on a
fan module
● Steady green: The fan module is working
properly.
● Steady red: The fan module is faulty.
● O: The fan module is powered o.
