Step 2 Hold the mini SAS HD cable and push the connector slightly inward, as shown in
Figure 7-75.

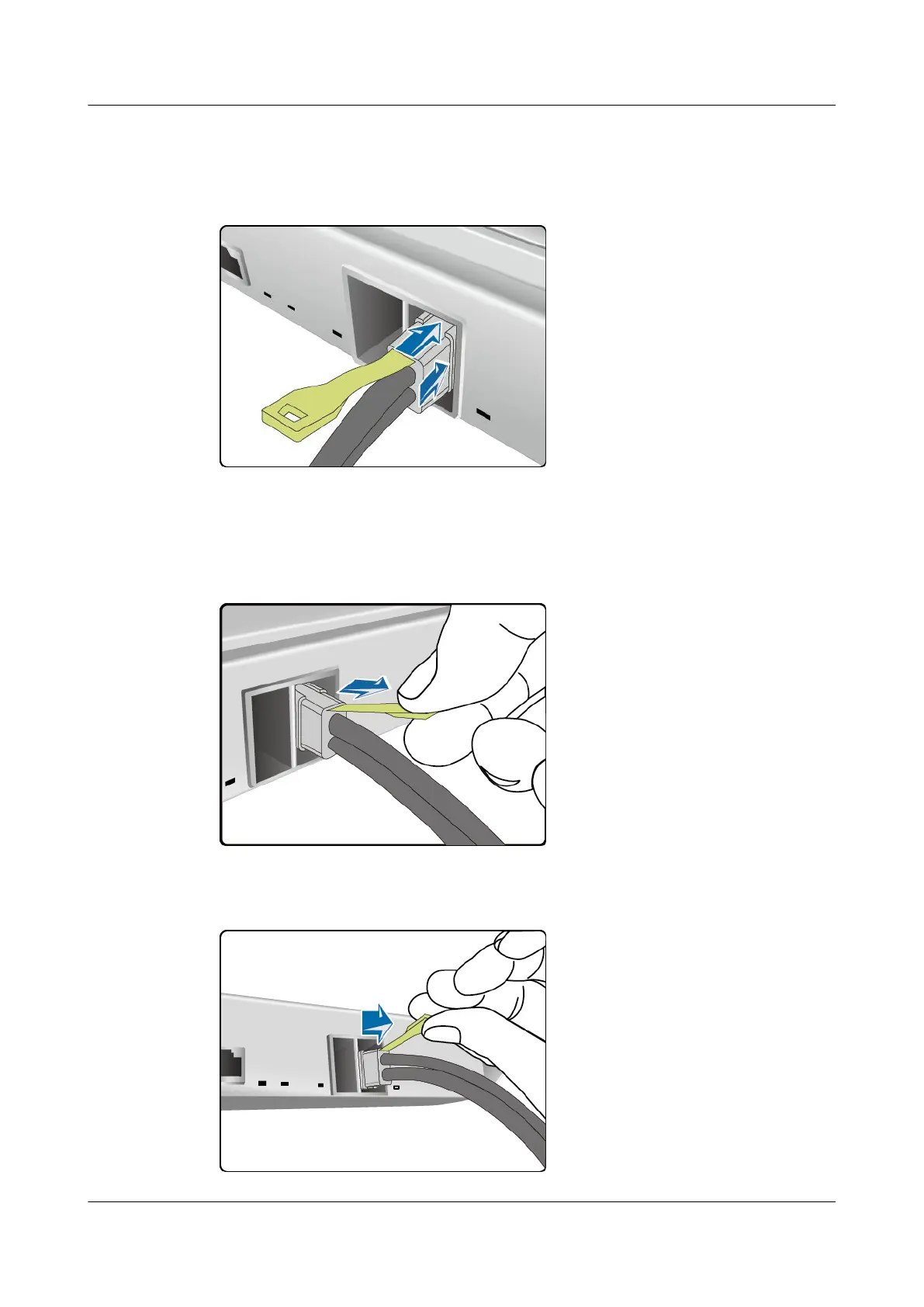

Figure 7-75 Pushing the cable connector inward
Step 3 Hold the plastic ring and pull it outward along the arrow direction until the mini
SAS HD cable is unlocked, as shown in Figure 7-76 and Figure 7-77.
Figure 7-76 Top view of removing a mini SAS HD cable
Figure 7-77 Bottom view of removing a mini SAS HD cable
