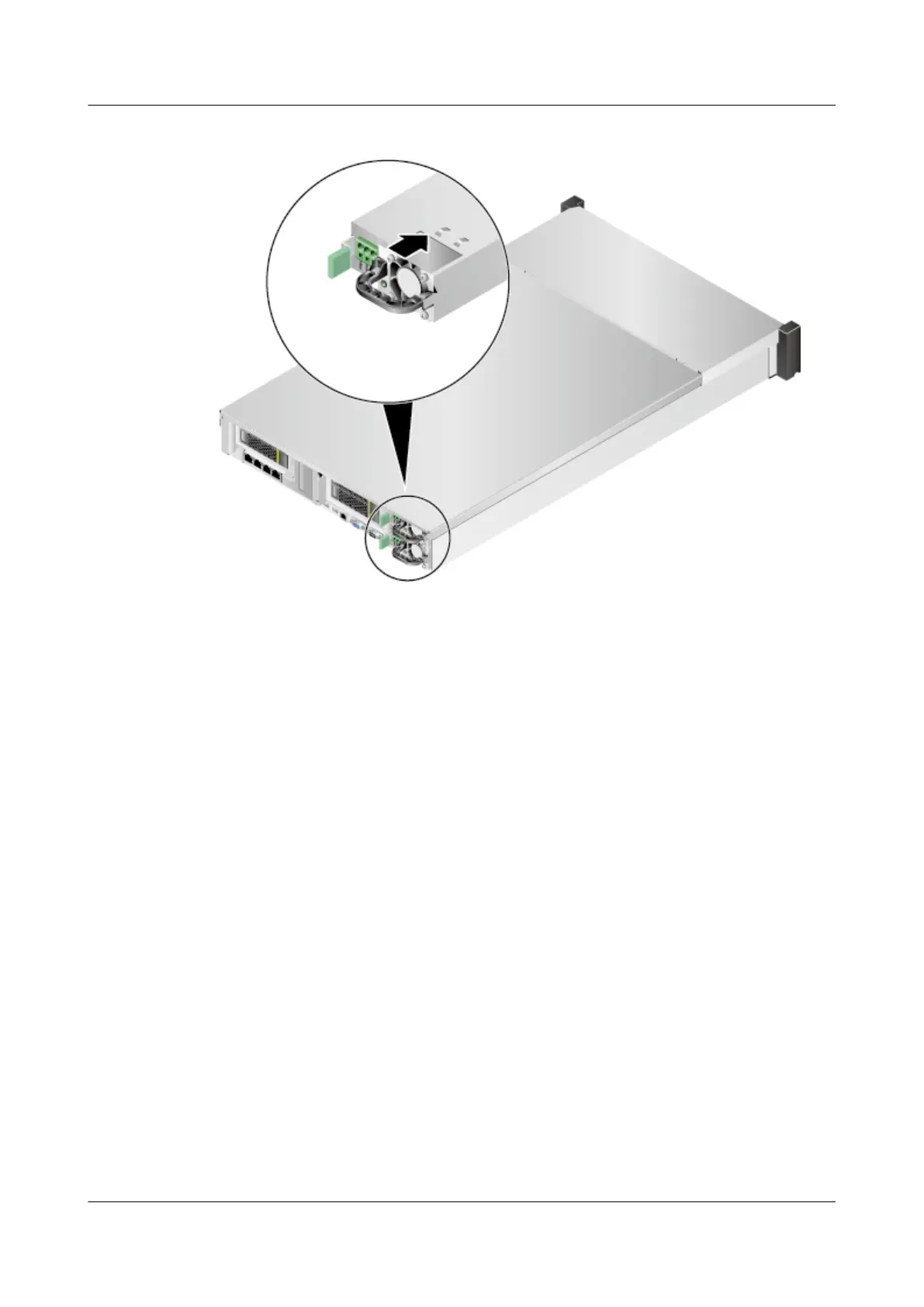

Figure 7-18 Installing a DC PSU
Step 5 Connect the power cable to the wiring terminal on the PSU until the power cables are latched.
See Figure 7-19.
l Connect the OT terminal on the negative power cable to the NEG(-) wiring terminal on
the PSU.
l Connect the OT terminal on the positive power cable to the RTN(+) wiring terminal on
the PSU.
l Connect the OT terminal on the ground cable to the ground terminal on the PSU.
RH2288 V3 Server
User Guide
7 Replacing Parts
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 145
