Huawei RH2288 V3 - Internal Cabling for 8-Disk Configuration 2

No
.
Description BOM Number
7 SAS cable for connecting Port A (J28) of the front
disk backplane to Port A of the RAID controller card
on the mainboard
04051021 (LSI
SAS3008/3108)
04051024 (LSI
SAS2308/2208)
8 Signal cable for connecting the USB plate of the left
mounting ear to the mainboard (J42)
04051006
9 Power cable for connecting the front disk backplane
(J24) to the mainboard (J30 PWR CONN1)
04150997
2.7.3 Internal Cabling for 8-Disk Configuration 2
Internal Cabling for a Server with a Hard Disk Controller Card Integrated into
the PCH Chip

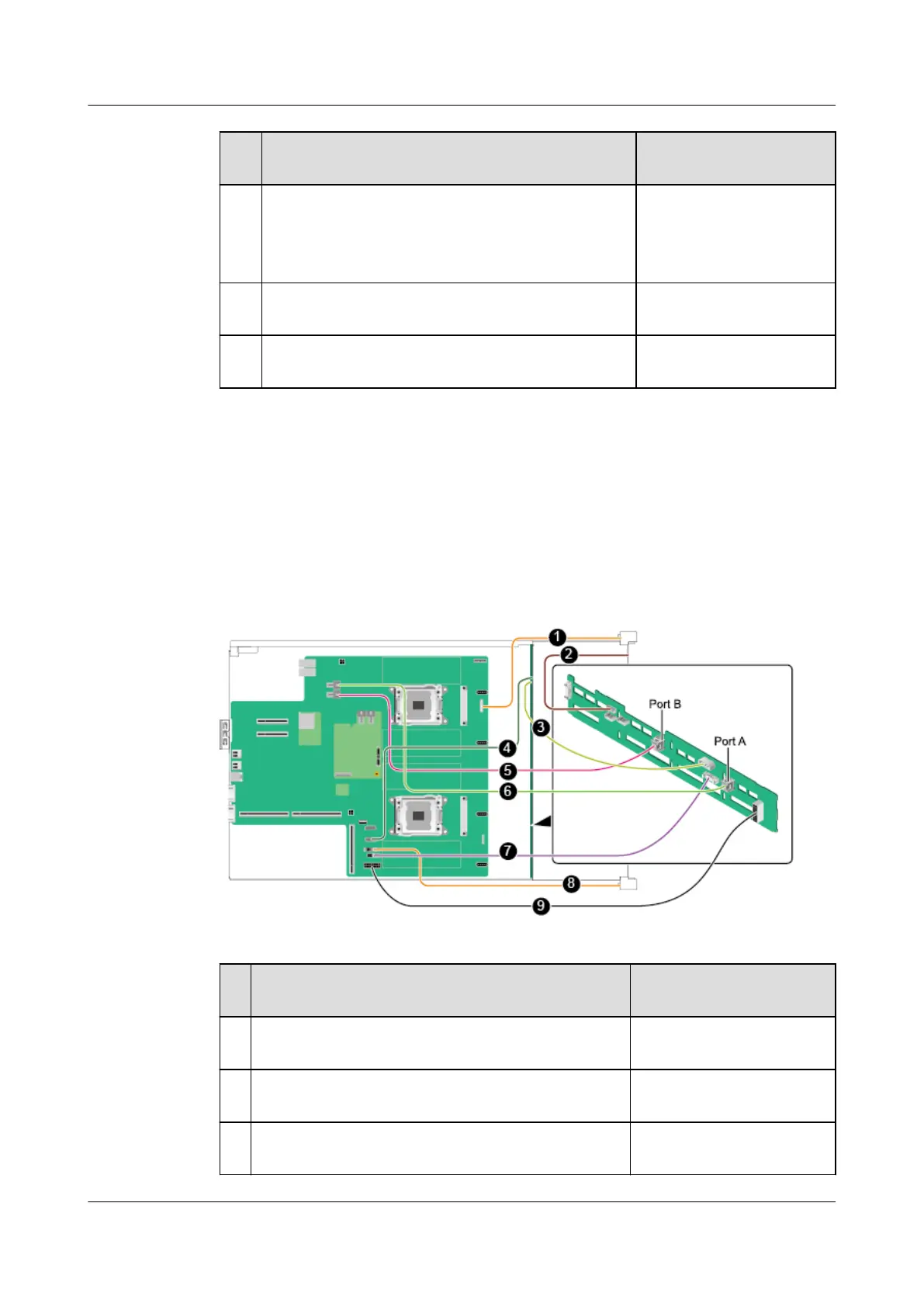

Figure 2-22 Internal cabling for a server with a hard disk controller card integrated into the
PCH chip
N
o.
Description BOM Number
1 Signal cable for connecting the indicator plate of the
right mounting ear to the mainboard (J43)
04051026
2 Signal cable for connecting the front VGA board to the
front disk backplane (J26)
04051076
3 Power cable for connecting the DVD drive to the front
disk backplane (J11)
04050689
RH2288 V3 Server
User Guide
2 Overview
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 38
