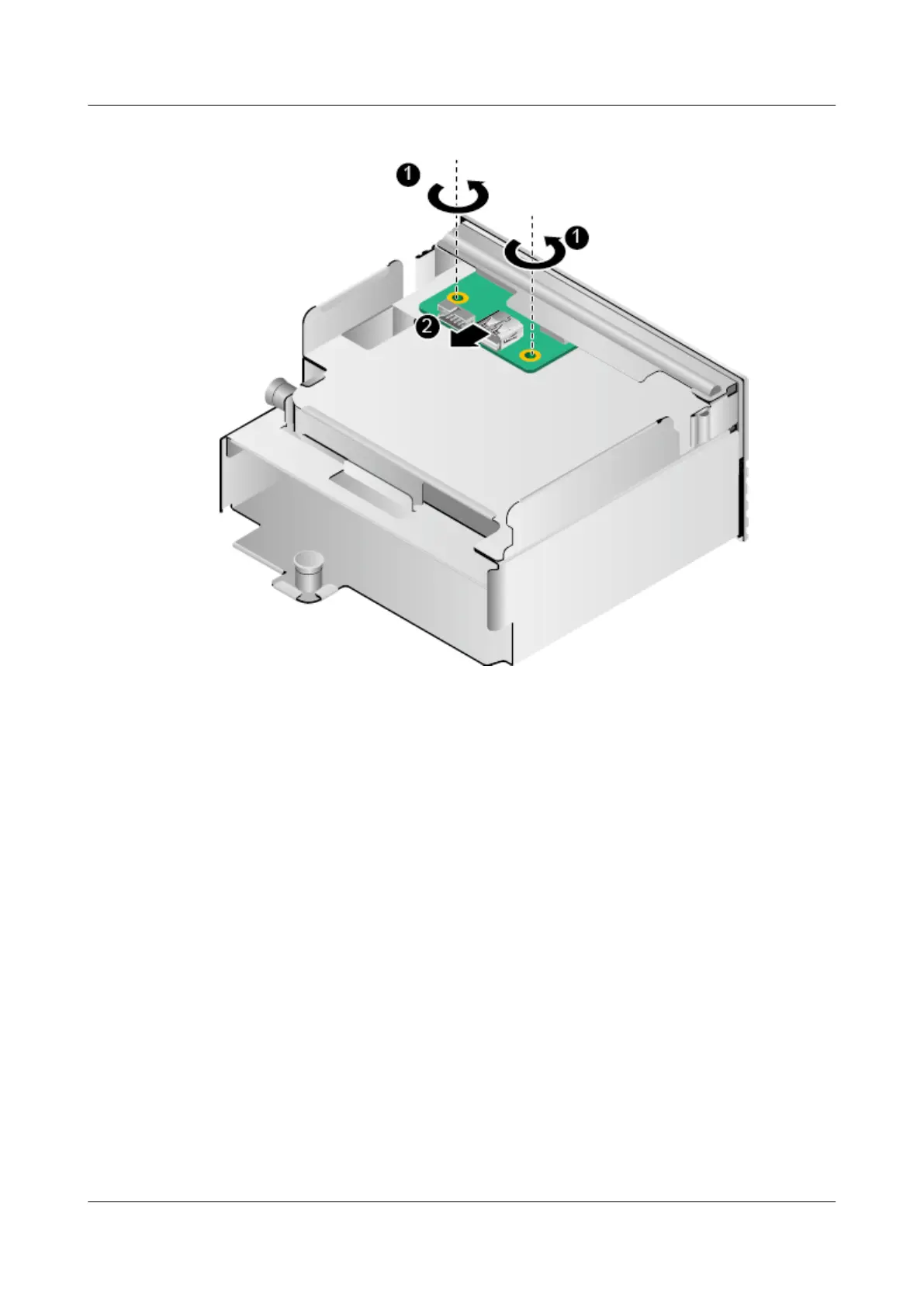

Figure 7-129 Removing the VGA board from a server with eight 2.5-inch hard disks
Step 15 Remove the VGA board in the arrow direction. See step (2) in Figure 7-129.
Step 16 Place the removed VGA board in an ESD bag.
----End
7.56 Installing the VGA Board
Install a VGA board to replace the faulty one.
Server with Eight 3.5-inch Hard Disks
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the VGA board to be replaced. For details, see 7.55 Removing the VGA Board.
Step 3 Take the spare VGA board out of its ESD bag.
Step 4 Insert the VGA board into the panel. See step (1) in Figure 7-130.
RH2288 V3 Server
User Guide
7 Replacing Parts
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 245
