N
o.
Description BOM Number
4 Signal cable for connecting the DVD drive to the
mainboard (J37)
04050689
5 Signal cable for connecting Port B (J29) of the front
disk backplane to Port B (J1002) of the hard disk
controller card integrated into the PCH chip
04051021
6 Signal cable for connecting Port A (J28) of the front
disk backplane to Port A (J1001) of the hard disk
controller card integrated into the PCH chip
04051021
7 Signal cable for connecting the front disk backplane
(J1) to the mainboard (J1003)
NOTE
Signals from the VGA board to the mainboard are transmitted
through this cable.
04051052
8 Signal cable for connecting the USB plate of the left
mounting ear to the mainboard (J42)
04051006
9 Power cable for connecting the front disk backplane
(J24) to the mainboard (J30 PWR CONN1)
04150997
Internal Cabling for a Server with a RAID Controller Card on the Mainboard

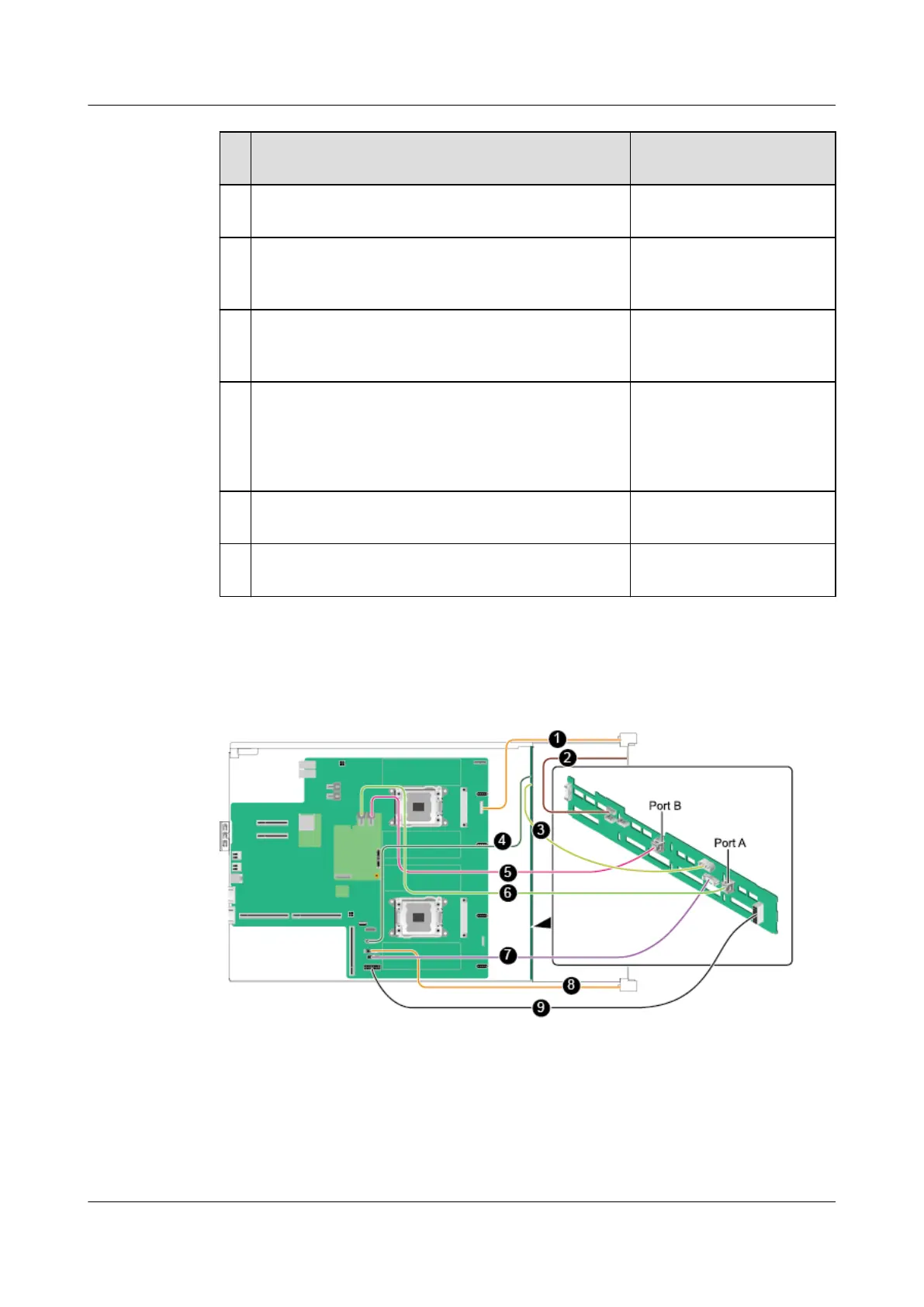

Figure 2-23 Internal cabling for a server with a RAID controller card on the mainboard
RH2288 V3 Server
User Guide
2 Overview
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 39
