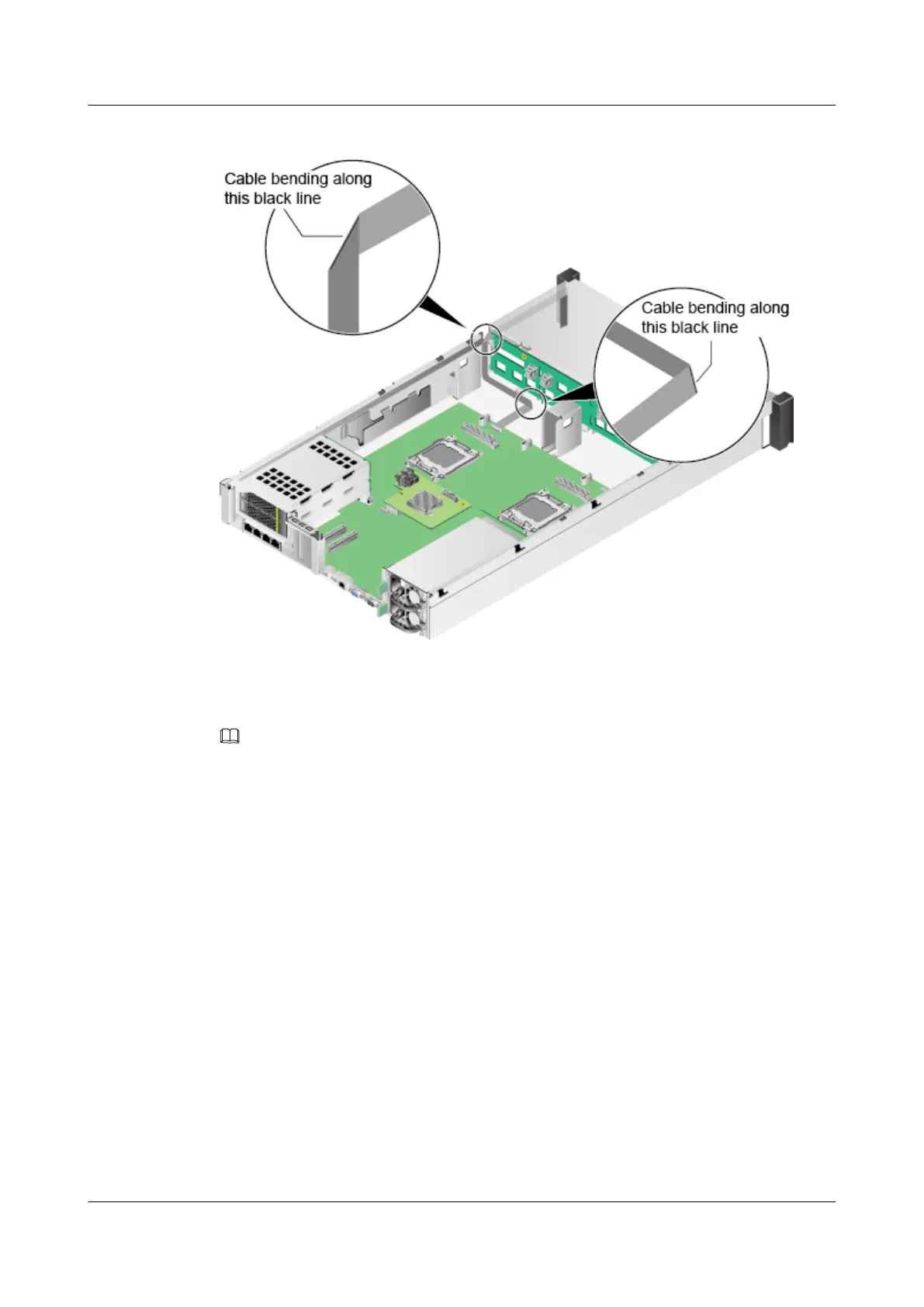

Figure 7-146 Bending the signal cable
Step 6 Connect the mounting ear signal cable to the right mounting ear connector (J43) on the
mainboard. See step (2) in Figure 7-145.
NOTE
l Ensure that the blue side of the signal cable faces upwards when connecting the cable.
l Do not use excessive force when connecting or removing the cable.
Step 7 Install the mounting ear in the arrow direction. See step (3) in Figure 7-145.
Step 8 Tighten the screw on the right mounting ear. See step (4) in Figure 7-145.
Step 9 Install the fan module brackets in the chassis. See Figure 7-147.
RH2288 V3 Server
User Guide
7 Replacing Parts
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 260
