RMS-SNMP01A SNMP Card
User Manual
3 Installation and Basic Settings
Copyright © Huawei Technologies Co., Ltd.
3.3 Installing the SNMP Card
The methods for installing SNMP cards are the same on different UPSs of Huawei. The
SNMP card is installed in the optional card slot INTELLISLOT at the rear panel of the UPS.
Procedure
Step 1 Remove the cover of the optional card slot on the real panel of the UPS, as shown in Figure
3-1.

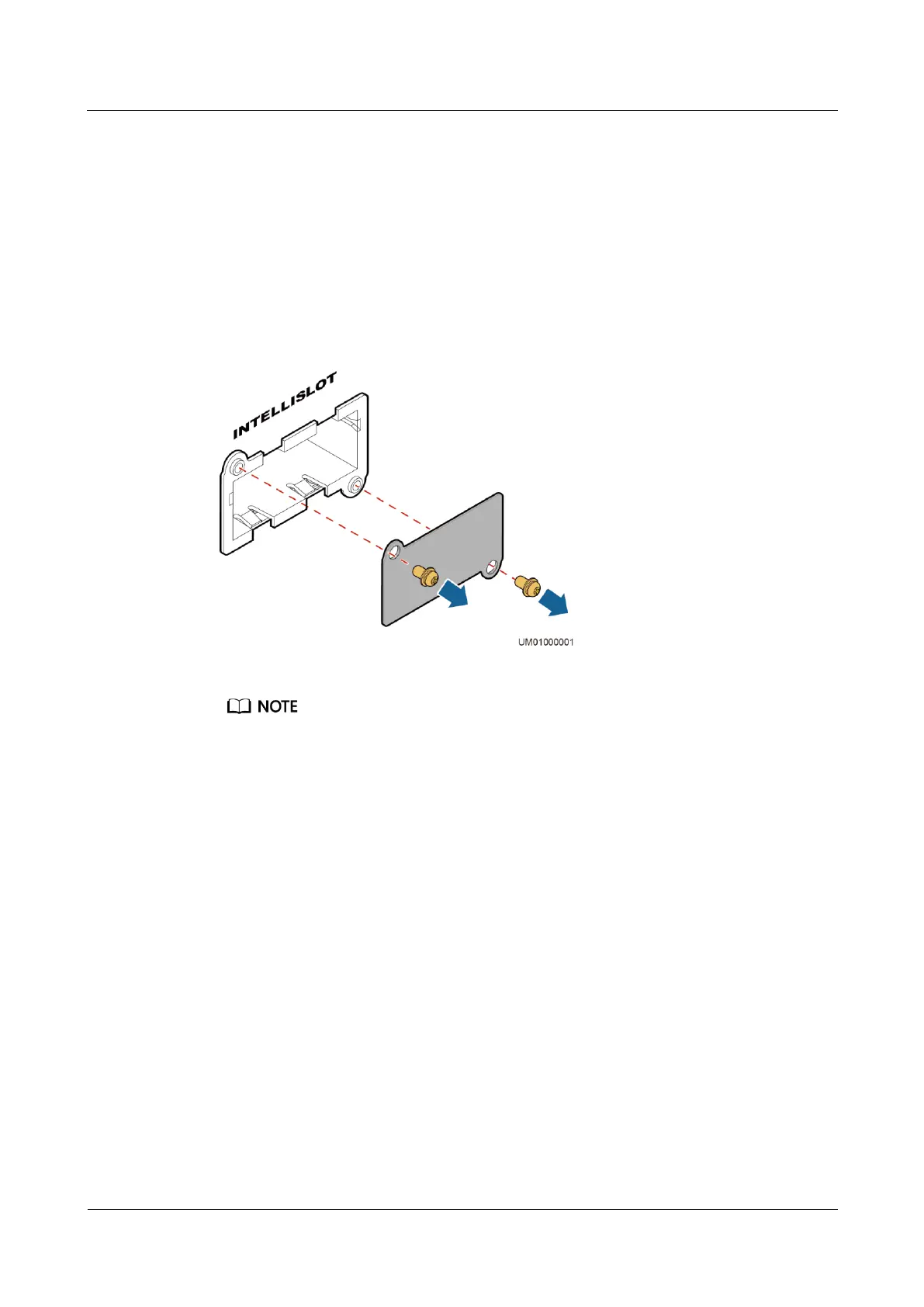

Figure 3-1 Removing the cover of the optional card slot
Store the cover well for future use.
Step 2 Insert the SNMP card into the slot and tighten screws, as shown in Figure 3-2.
