Huawei UPS2000-G Series User Manual

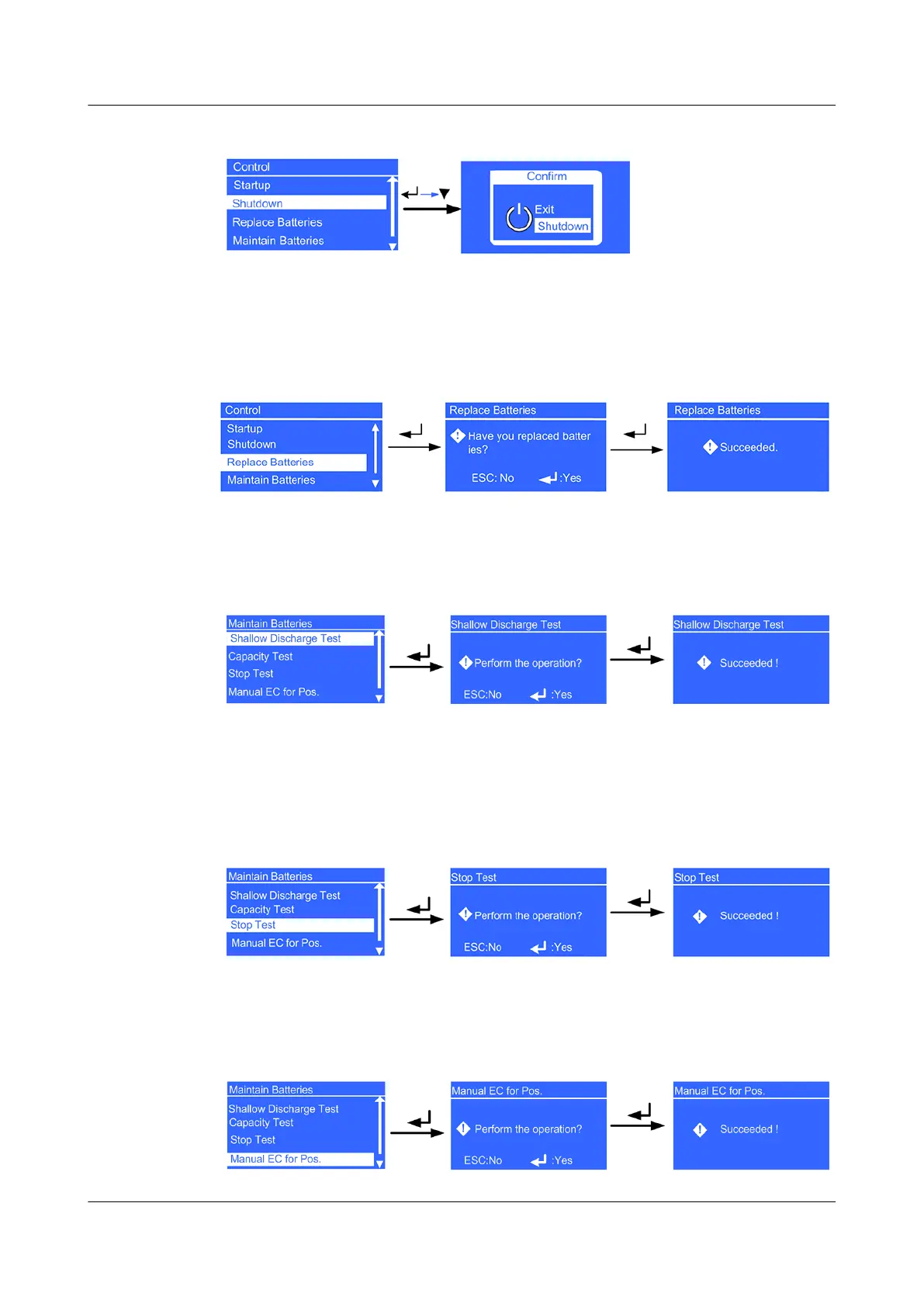

Figure 4-45 Shutdown screen
Replace Batteries
If the batteries have been replaced for the system, set this parameter. The
parameter is congurable in non-battery inverter mode or non-battery ECO mode.
Figure 4-46 Replace Batteries screen
Maintain Batteries
● Shallow Discharge Test
Figure 4-47 Shallow Discharge Test screen
● Capacity Test
After you completely discharge batteries, the load rate must be in the range
of 0%–100%.
● Stop Test
Figure 4-48 Stop Test screen
This item allows you to stop the shallow discharge test or capacity test.
● Manual EC for Pos.
Figure 4-49 Manual EC for Pos. screen
UPS2000-G-(6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 21 (2022-10-13) Copyright © Huawei Technologies Co., Ltd. 92

Huawei UPS2000-G Series Specifications

General

Frequency	50/60 Hz
Output Power Factor	0.9
Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Capacity	1 kVA, 2 kVA, 3 kVA
Input Voltage	220 Vac (120 Vac/208 Vac/230 Vac/240 Vac)
Output Voltage	220/230/240 VAC
Efficiency	Up to 95%
Topology	Double conversion online
Battery Type	Sealed Lead Acid
Communication Ports	USB, RS232
Optional Communication	SNMP
Operating Temperature	0°C to 40°C
