Huawei UPS2000-G Series User Manual

This item allows you to perform equalized charging on batteries forcibly. For the 6
kVA and 10 kVA UPSs, perform manual equalized charging. For the 15 kVA and 20
kVA UPSs, batteries in positive and negative groups are manually switched to
equalized charging respectively.
● Manual FC for Pos.

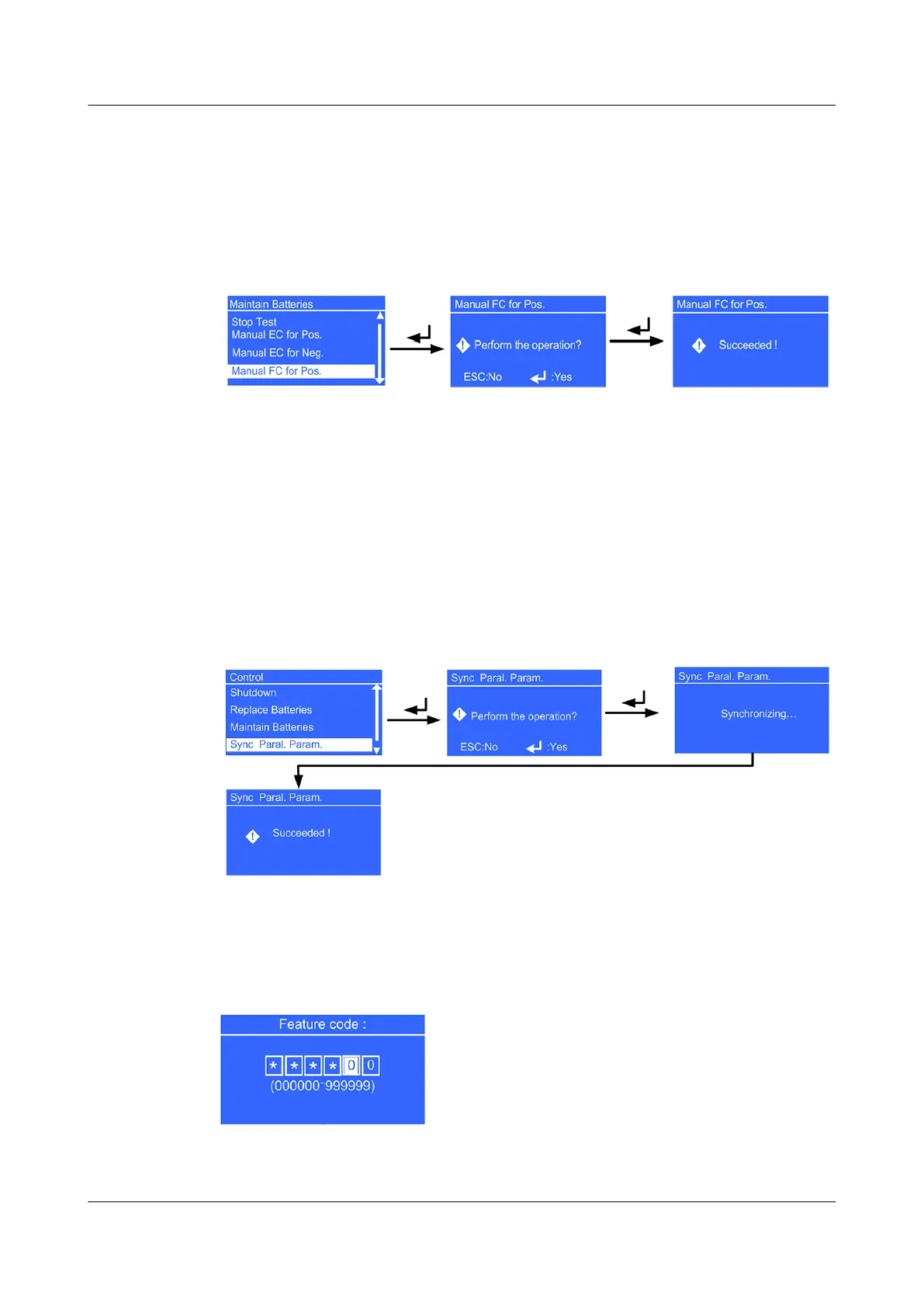

Figure 4-50 Manual FC for Pos. screen
This item allows you to perform oat charging on batteries forcibly. For the 6 kVA
and 10 kVA UPSs, perform manual
oat charging. For the 15 kVA and 20 kVA
UPSs, batteries in positive and negative groups are manually switched to oat
charging respectively.
Sync Paral. Param.
Synchronize parallel parameters. This item allows you to synchronize parameters
of the local UPS to the other UPS in the parallel system. The UPS running in
inverter output state cannot be synchronized.
Figure 4-51 Sync Paral. Param. screen
Resetting the Password
Enter a feature code to restore the preset password.
Figure 4-52 Resetting the password
UPS2000-G-(6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 21 (2022-10-13) Copyright © Huawei Technologies Co., Ltd. 93

Huawei UPS2000-G Series Specifications

General

Frequency	50/60 Hz
Output Power Factor	0.9
Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Capacity	1 kVA, 2 kVA, 3 kVA
Input Voltage	220 Vac (120 Vac/208 Vac/230 Vac/240 Vac)
Output Voltage	220/230/240 VAC
Efficiency	Up to 95%
Topology	Double conversion online
Battery Type	Sealed Lead Acid
Communication Ports	USB, RS232
Optional Communication	SNMP
Operating Temperature	0°C to 40°C
