Huawei UPS2000-G Series User Manual

Environment
● Do not install the UPS in an environment outside the specications.
● Keep the UPS far away from water, heat sources, and ammable and
explosive substances. Install the UPS in an environment free of dust, volatile
gas, salt, and corrosive materials. Avoid direct sunlight.
● Do not install the UPS in environments with conductive metal scraps in the
air.
● The ideal operating temperature for batteries is 20–30ºC. Temperatures higher
than 30ºC shorten the battery lifespan and temperatures lower than 20ºC
reduces the backup time.

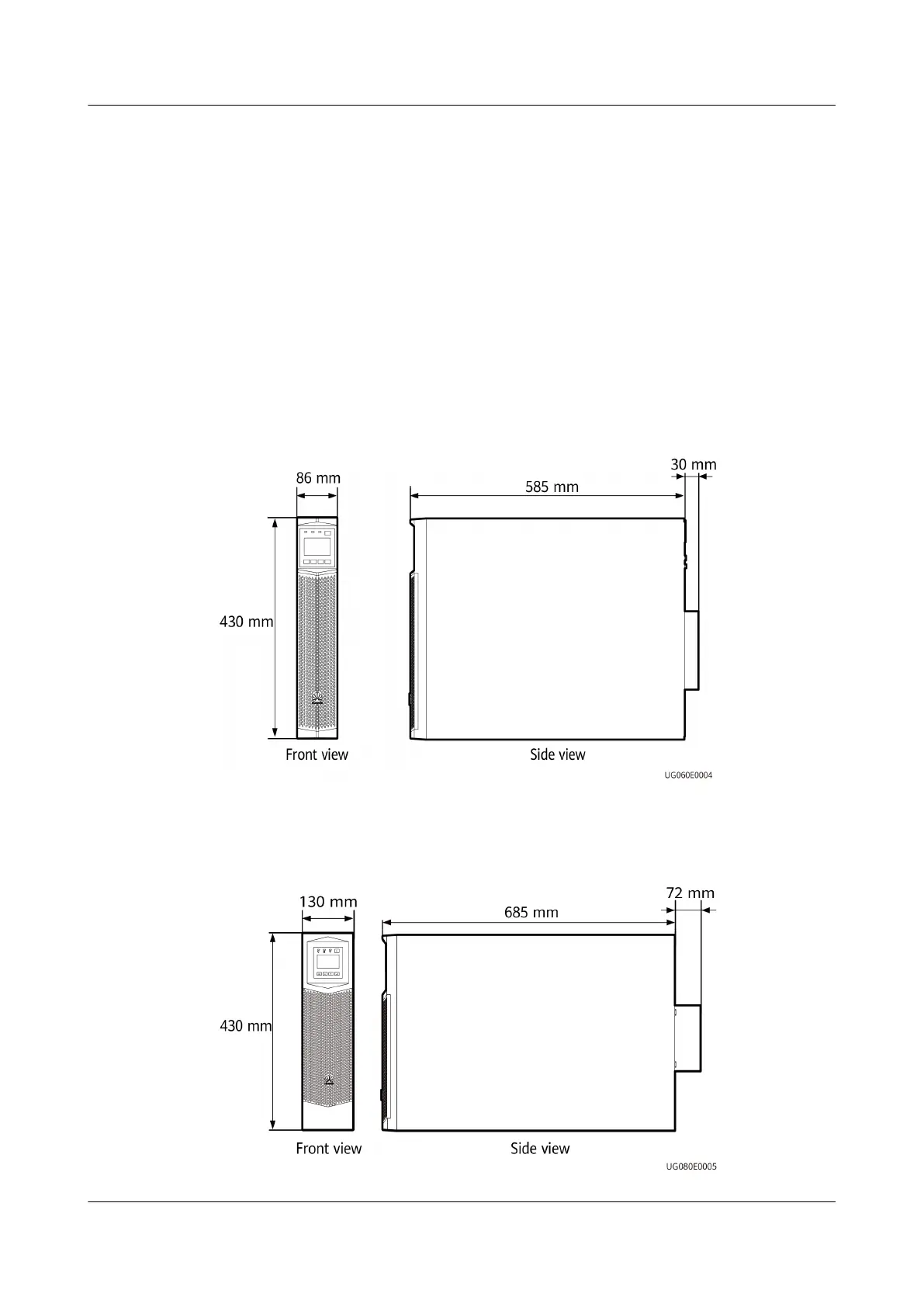

UPS2000-G-6 kVA/10 kVA Dimensions
Figure 3-1 UPS2000-G-6 kVA/10 kVA installation dimensions
UPS2000-G-15 kVA/20 kVA Dimensions
Figure 3-2 UPS2000-G-15 kVA/20 kVA installation dimensions
UPS2000-G-(6 kVA-20 kVA)
User Manual 3 Installation
Issue 21 (2022-10-13) Copyright © Huawei Technologies Co., Ltd. 34

Huawei UPS2000-G Series Specifications

General

Frequency	50/60 Hz
Output Power Factor	0.9
Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Capacity	1 kVA, 2 kVA, 3 kVA
Input Voltage	220 Vac (120 Vac/208 Vac/230 Vac/240 Vac)
Output Voltage	220/230/240 VAC
Efficiency	Up to 95%
Topology	Double conversion online
Battery Type	Sealed Lead Acid
Communication Ports	USB, RS232
Optional Communication	SNMP
Operating Temperature	0°C to 40°C
