Local-UPS Load

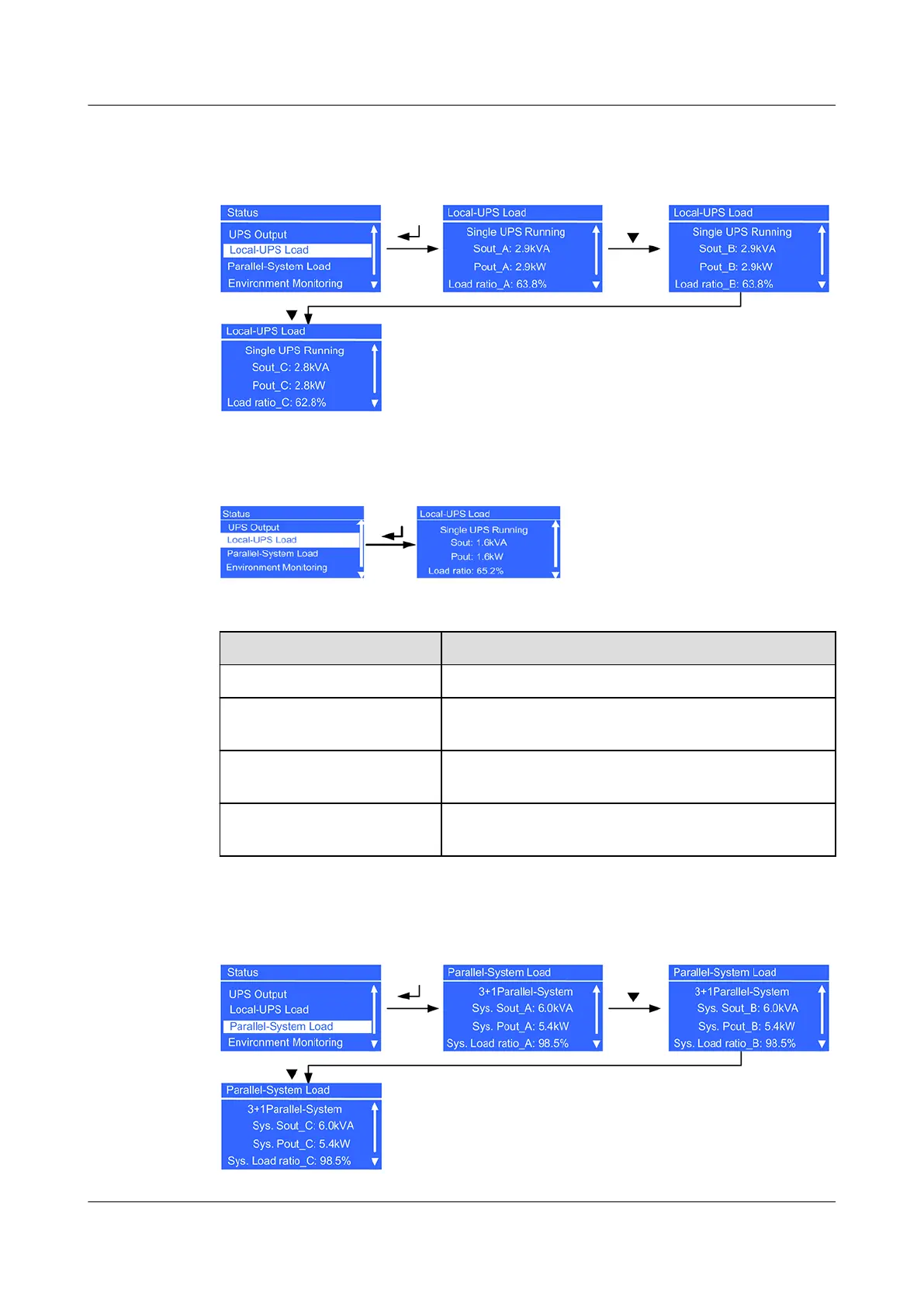

Figure 4-13 Local-UPS Load screen
Figure 4-14 Local-UPS Load screen (dual-live wire)
Table 4-10 Local-UPS Load
Item
Description
Single UPS Running A single UPS is running.
Sout_A/Sout_ B/Sout_C Output apparent power of each phase (Sout is
displayed when single-phase output mode is set.)
Pout_A/Pout_ B/Pout_C Output active power of each phase (Pout is
displayed when single-phase output mode is set.)
Load ratio_A/Load
ratio_B/Load ratio_C
Load ratio of each phase (Load ratio is displayed
when single-phase output mode is set.)
Parallel-System Load
Figure 4-15 Parallel-System Load screen
UPS2000-G-(6 kVA-20 kVA)
User Manual 4 Control Panel
