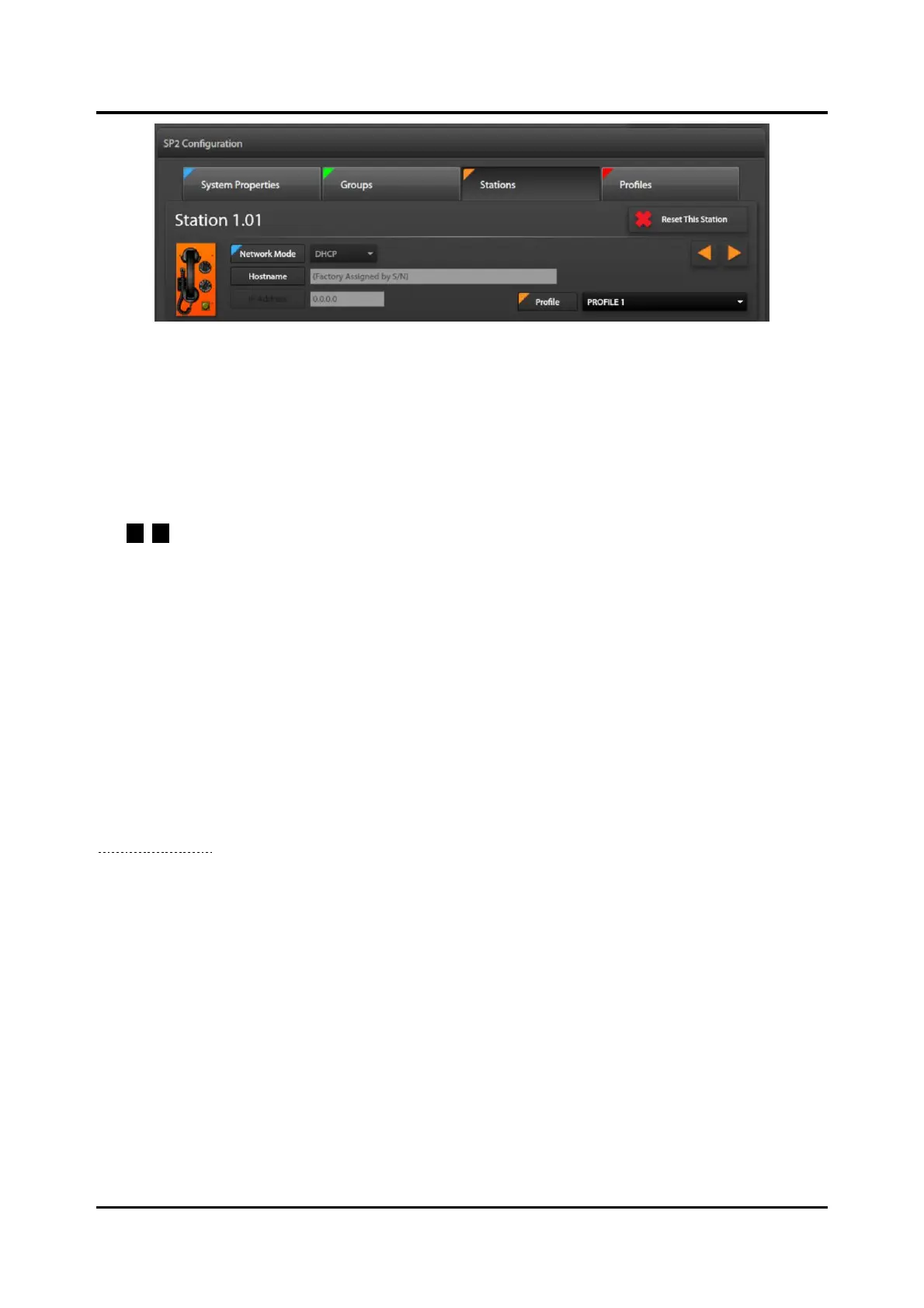

Figure 105. Station Shown in Station View Panel
Station 1.01—The station currently selected for modification appears at the top of the STATION VIEW
panel.
Reset This Station—removes all changes to the selected station’s parameters. This is an undo action
for all parameters modified in all parameter groups for the station.
Network Mode—designates the current mode used by this station to obtain its IP address.
◄ ►—cycle through the SP2 stations that have identifiers in the system. This allows browsing to a
different station’s settings without having to use the station list utility.
Hostname—name that this station will have on the IP network. The E3 Console assigns the factory
assigned serial number for the hostname.
IP Address—currently grayed out because the network mode for this station is DHCP. Changing the
NETWORK MODE parameter for this station will unlock this field, enabling entry of a valid IP address.
Profile—allows additional parameter changes to this station by adding settings contained in a profile
assigned to the station. The flag button is orange to denote that this setting is being changed at the
[STATION] level in the hierarchy. Profiles are configured on the MANAGE PROFILES PANEL
covered in the next section.
Collapsed Parameter Panes—Collapsed parameter panes display below the station information pane.
Click the expand arrow to open the group containing the parameter(s) needing modification (see the
Parameter Panes section).
