Chapter 1 Product Description
Contents of the Hughes
9502 Kit
The Hughes 9502 Kit (P/N 3500509-0001) is a two piece design
that comes with an Indoor Unit (IDU), an Outdoor Unit (ODU) and
a 10 meter RF cable that has an N type connection at both ends and
an N to TNC adapter inside the cable bag for connection to the
IDU.

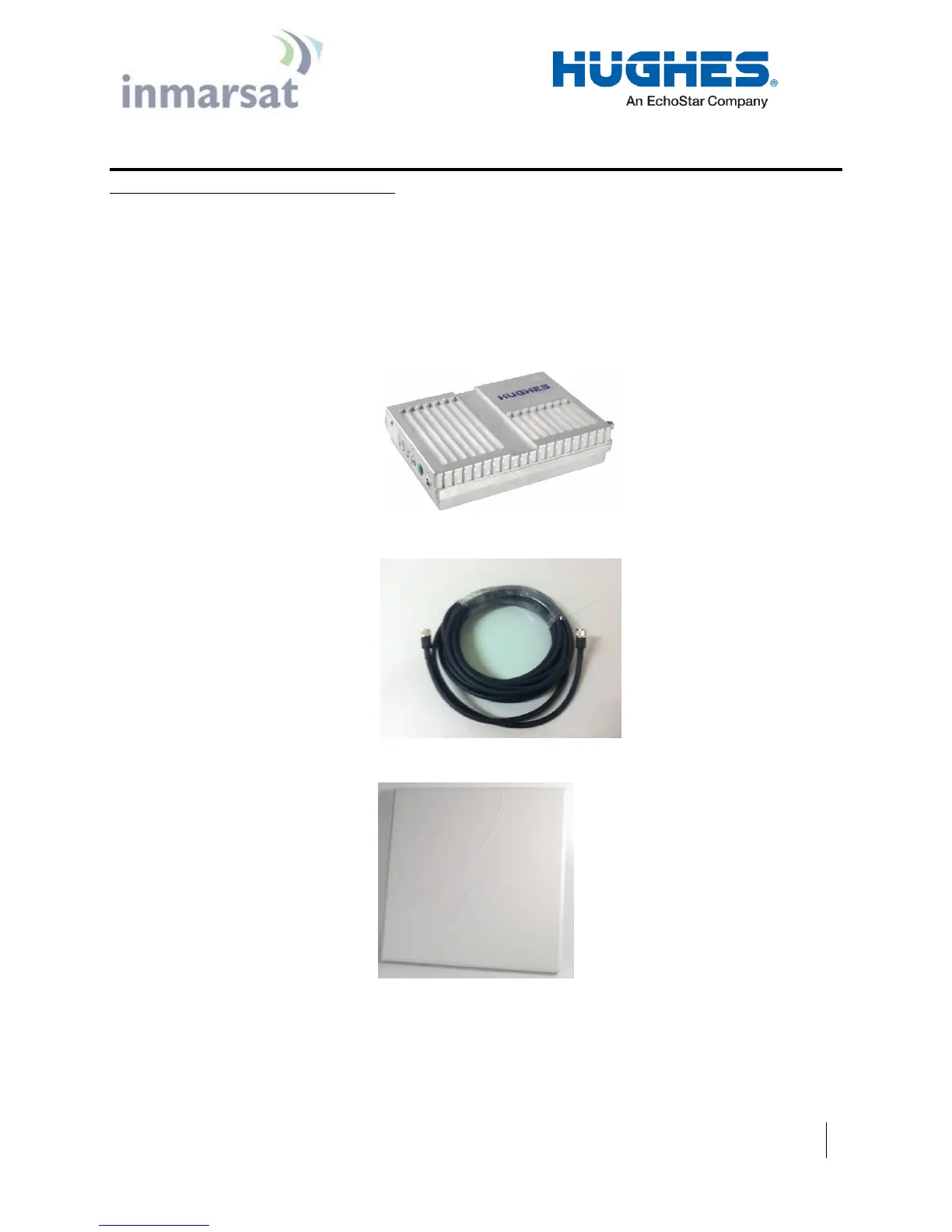

Figure 1-1 – IDU P/N 3500563-0001
Figure 1-2 – RF Cable with N to TNC adapter P/N 3500634-0001
Figure 1-3 – ODU P/N 3500564-0001
