Hughes 9502 - RF Cable Connections

9502 User Guide
3004146-0001 Rev H
47

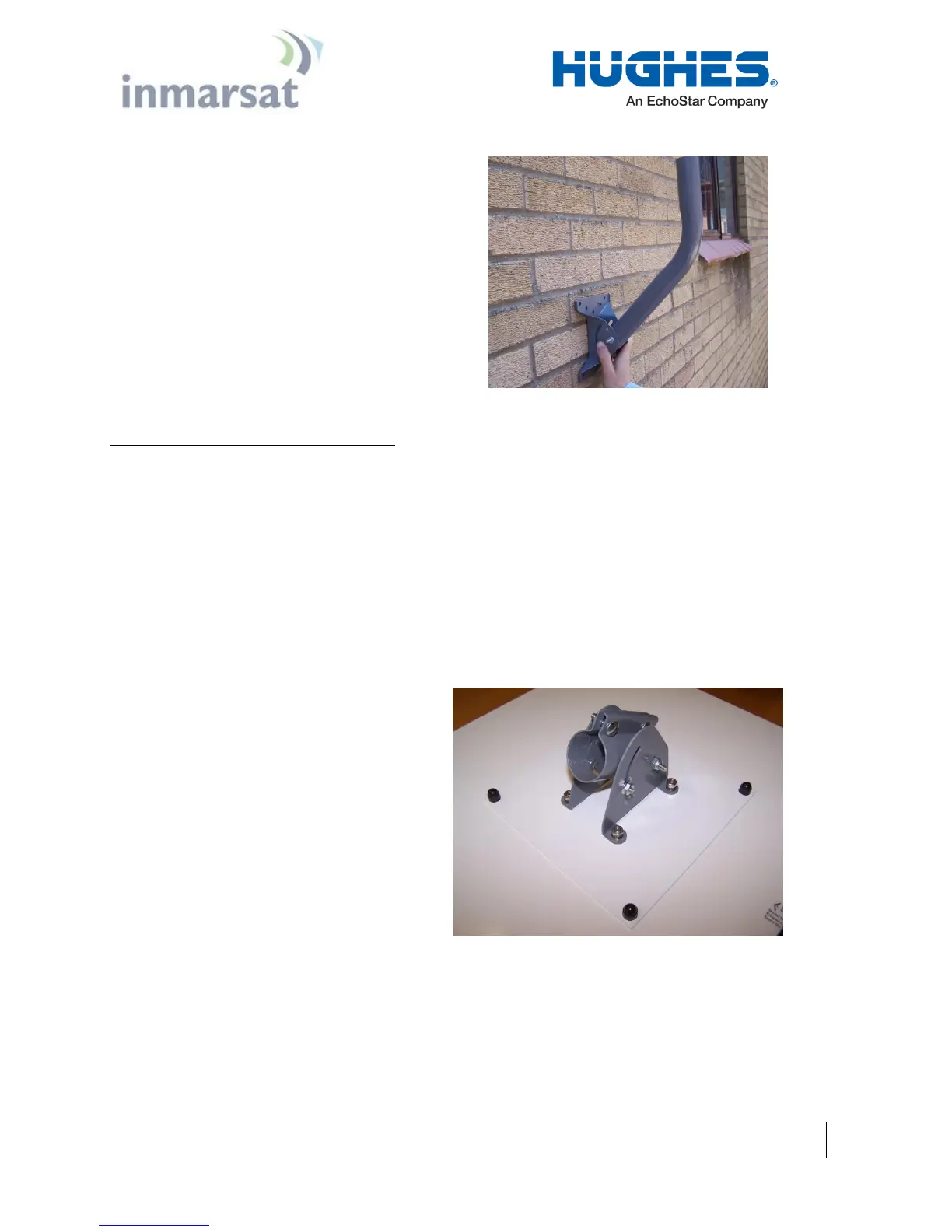

Figure 4-3 – Pole Assembly
Mounting the azimuth
elevation bracket
Mount the azimuth elevation bracket to the back of the ODU using
four washers/nuts (see Figure 4-4 – Azimuth elevation bracket).
The N-type RF connector should be on the left or right side of the
azimuth elevation bracket if installed correctly.
Figure 4-4 – Azimuth elevation bracket
