9502 User Guide
3004146-0001 Rev H
Attaching RF cable to ODU
1. Attach the cable to the mounting pole via a zip strap to take the
weight of the cable.
2. Mate the connector to the ODU firmly by hand but do not over
tighten.
3. Weatherproof the connection using self-amalgamating tape
(not provided) (see Figure 4-6 – Weather proof connector).
4. Route the cable to the 9502 IDU avoiding any sharp bends,
extremes in temperature, and compression of the cable.

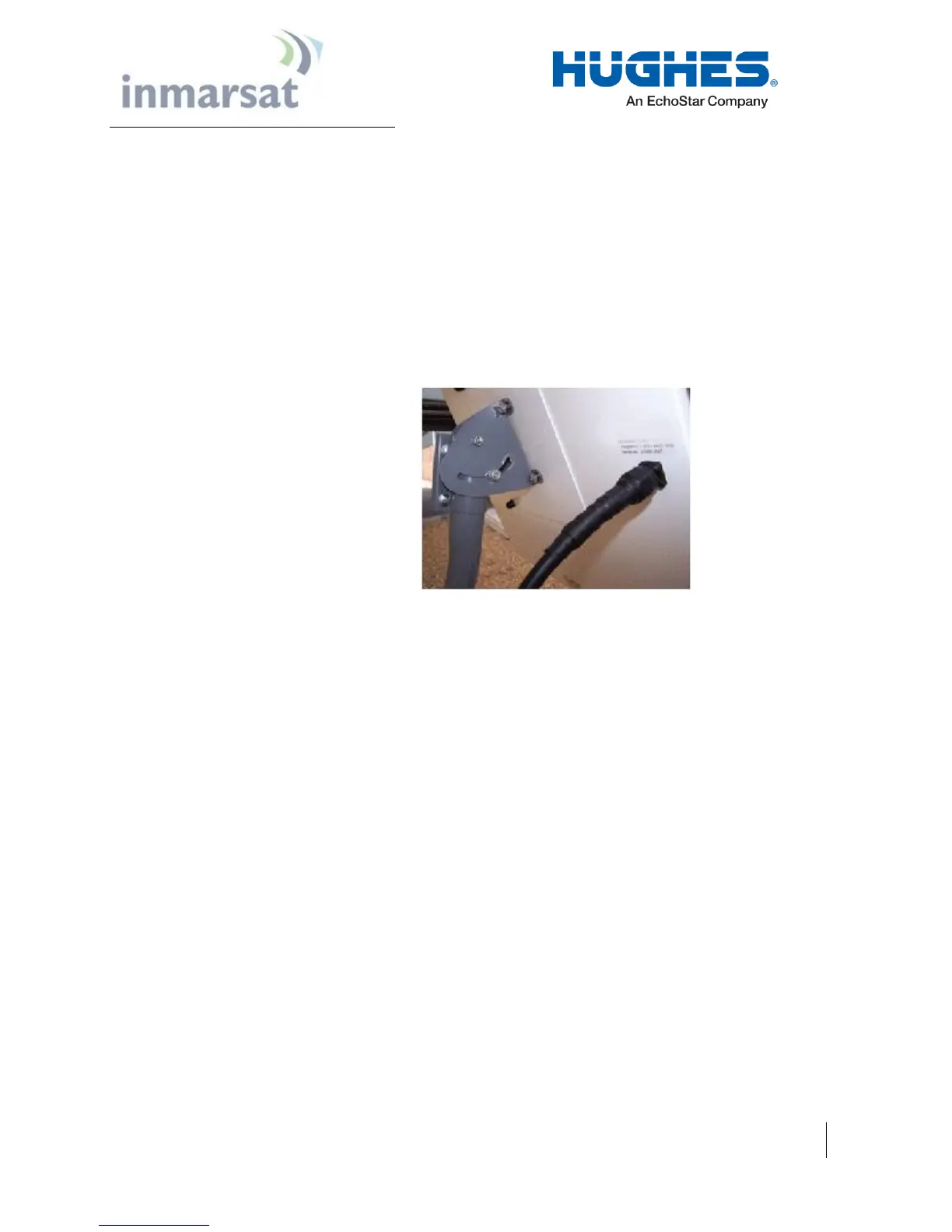

Figure 4-6 – Weather proof connector
