Ethernet Port Page
The Ethernet Port settings page includes:
 Wake On LAN (see Wake on LAN (Any Packet) section):
o Wake On LAN – On/Off radio button
o Wake On LAN idle timer – in minutes
o Wake On LAN time of day – 24 hour clock
 MAC Address filtering:
o Ethernet MAC Address filtering enable tick box
o Table of allowed Ethernet MAC addresses.

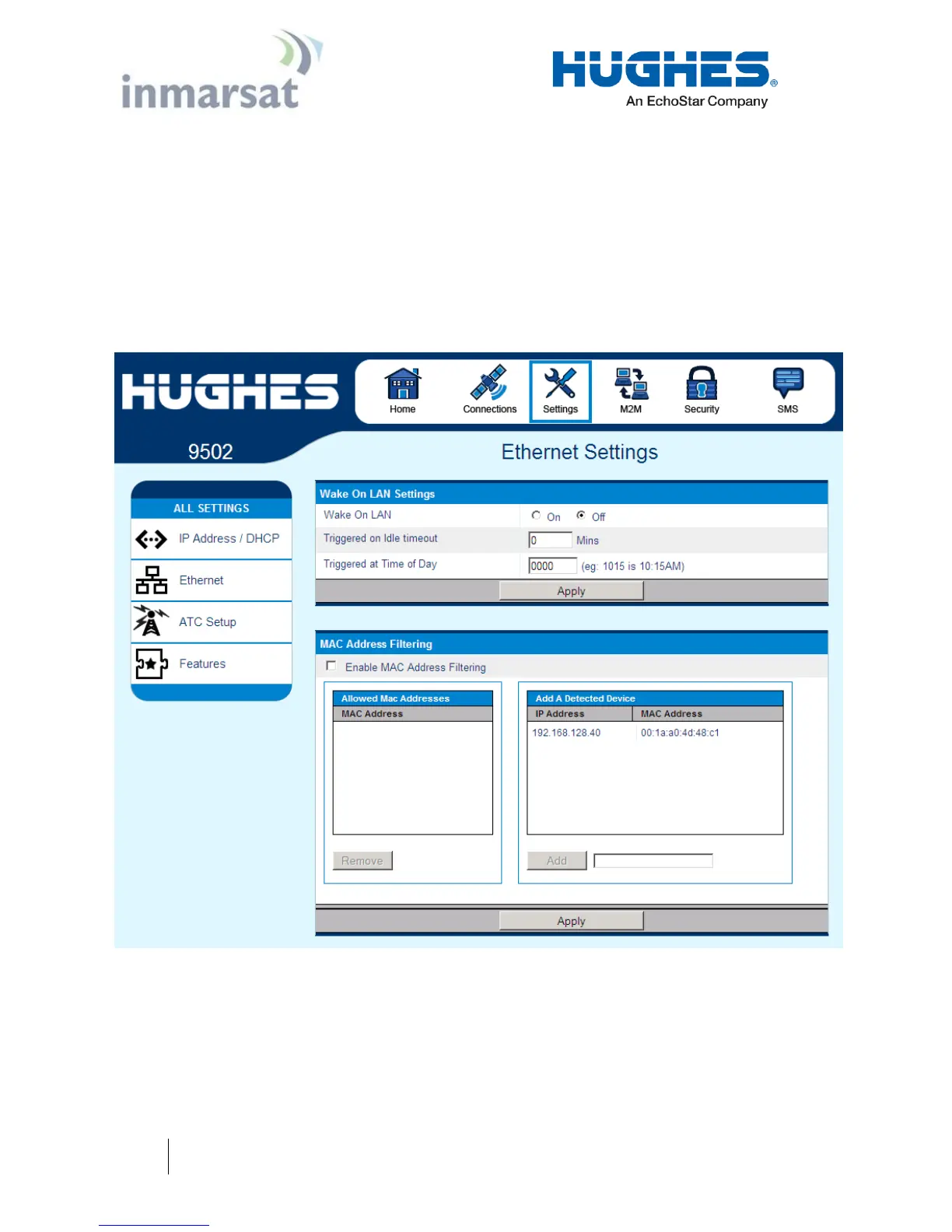

Figure 2-9 – Ethernet Settings
