Adjusting the azimuth and
elevation of the ODU

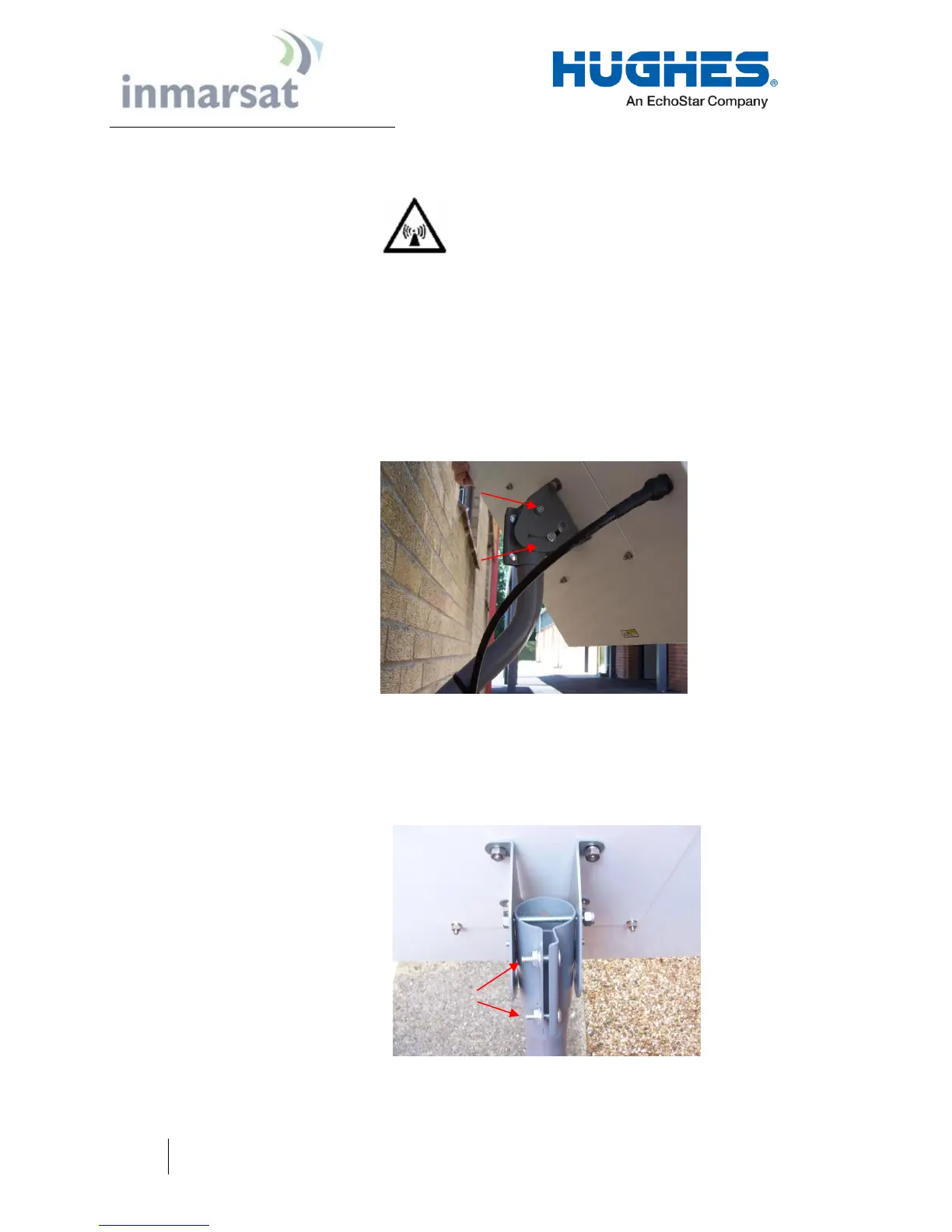

To adjust elevation, refer to Figure 4-14 - Adjusting elevation
1. Loosen the two bolts in the curved slots on the azimuth
elevation bracket.
2. Read the elevation angle from the elevation scale on the
bracket, using the red edge on the pole collar as the angle
indicator. View this edge through the curved slot on the
azimuth elevation bracket.
3. Pivot the ODU to obtain the desired elevation.
Figure 4-14 - Adjusting elevation
Figure 4-15 - Adjusting azimuth
