Mounting the azimuth
elevation bracket onto the
pole
1. Slide the pole collar of the azimuth elevation bracket over the
end of the pole (see Figure 4-5 – Pole Collar).
2. Leave the pole collar bolts loose to allow for azimuth
adjustment during pointing.

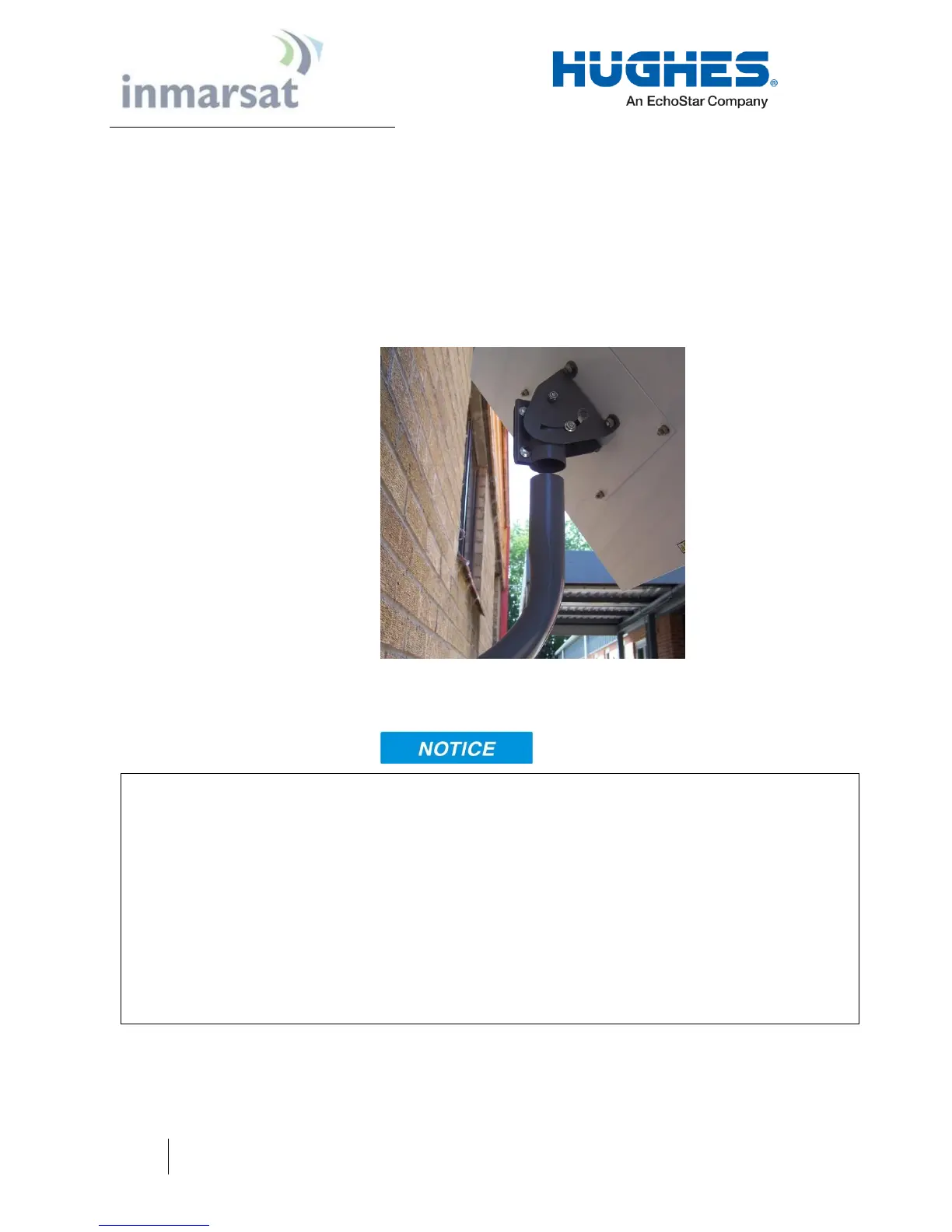

Figure 4-5 – Pole Collar
Important Notes:
 The RF cable assembly supplied (10m), forms an integral part of the ODU system and is made
to a specific length in order to meet the system specifications. The cable must not be cut to a
shorter length, nor must any cables be added to the cable run.
 It is essential that only the supplied cable is used. Third party cables may not be used; their use
will invalidate the warranty of the ODU and may cause system malfunction.
 It is important not to stress the connection to the ODU during installation of the coaxial ODU
cable.
 The minimum bend radius of the cable is 2” (50mm) however; it is recommended that a 4”
(100mm) bend radius be used.
 Any modification to these rules must be approved by Hughes and Inmarsat prior to the
installation.
