Hunter Douglas Vignette Series User Manual

INSTALLATION — Outside Mount
10
Install the Fabric Carrier Rollers into the Headrail
■ Hook each of the remaining rollers (except the last
one) into the correct channel of the headrail.
➤ Carefully push back the fabric in order to see
each roller.
➤ Hook the bottom of the roller into the lower part of
the channel and then rock the top of the roller into
the top part of the channel.
Insert the Secondary Rail Trike into the Headrail
■ Insert the trike’s top roller.
■ Then insert the last fabric carrier roller.
■ Finally, insert the trike’s side rollers.
IMPORTANT: Be careful not to pinch the cords.
Avoid twisting the cords.
NOTE: The cords from the secondary rail are routed
through the headrail end cap.
Proceed to “Attach the Handle(s)” on page 15.

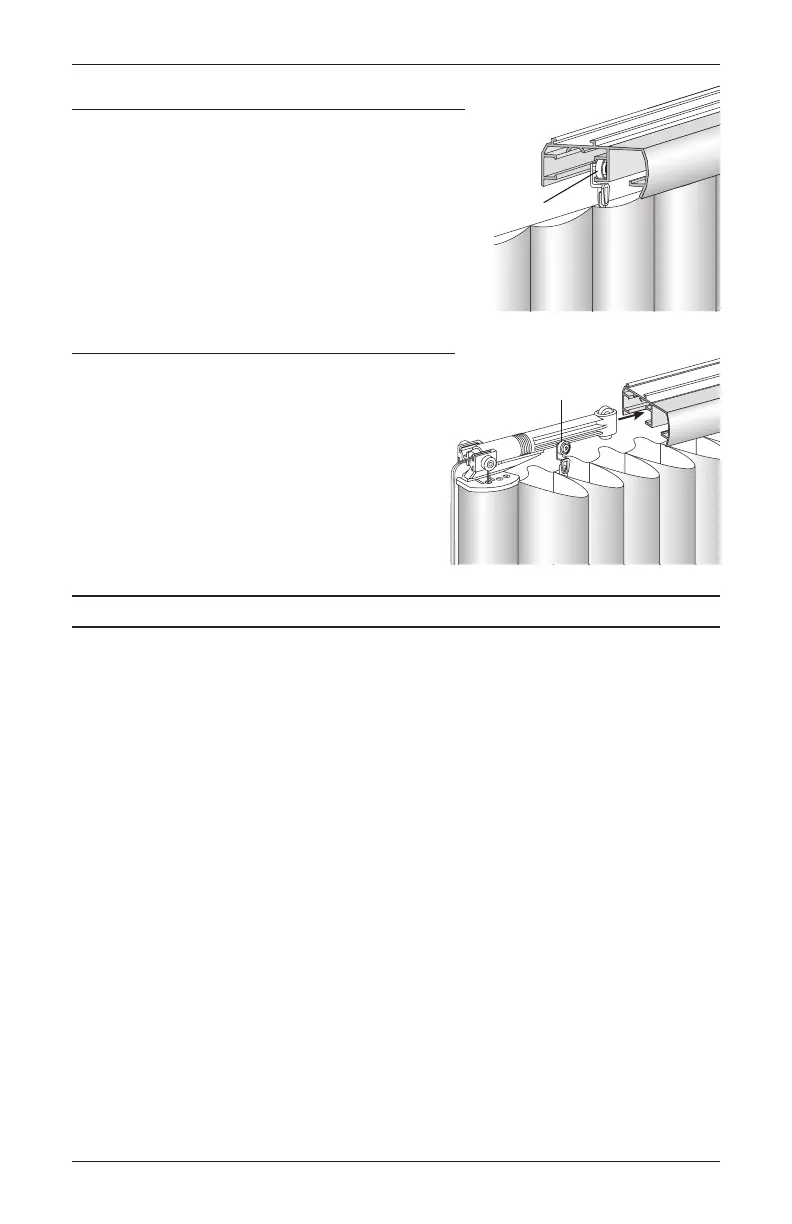

Headrail
Cutaway
Roller in
Channel
Secondary
Rail Trike
Last Fabric
Carrier Roller
