INSTALLATION — Inside Mount
11

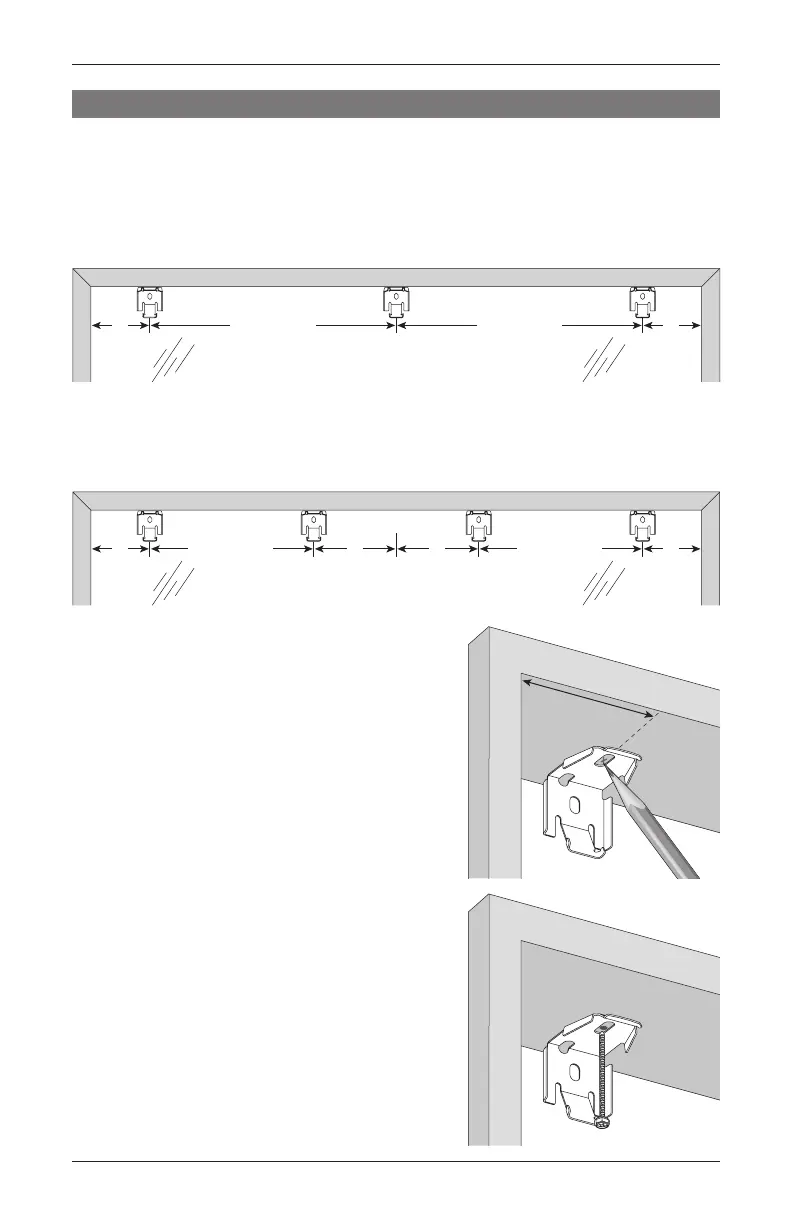

INSIDE MOUNT PROCEDURES
Mount the Installation Brackets
■ Mark the head jamb 2" from each side jamb.
➤ If more than two installation brackets came with your order, space additional bracket(s)
evenly (or at least every 36") and mark their locations.
➤ Two-piece headrails: Place a bracket 4" from the center on both sides. Space
additional bracket(s) evenly (or at least every 36") and mark their locations.
■ Center the brackets on your marks and mark the
screw holes.
➤ A minimum depth of 1
1
/ 2 " is required to mount
the brackets.
➤ A depth of 4
1
/ 2 " is required for fully recessed
mounting with the shade drawn closed, or
5
1
/ 2 " with the shade stacked open.
■ Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■ Attach the installation brackets to the mounting
surface using the screws provided.
IMPORTANT: The front edges of the brackets
must be level with their front edges aligned.
Head Jamb
Jamb Jamb
2" 2"
Space Evenly Space Evenly
Jamb Jamb
Two-Piece Headrails
Split
2" 4" 2"
Space EvenlySpace Evenly
4"
2"
