INSTALLATION — Inside Mount
14
Fabric Tab
Insert the Secondary Rail Trike into the Headrail
■ Insert the trike’s top roller.
■ Then insert the last fabric carrier roller.
■ Finally, insert the trike’s side rollers.
IMPORTANT: Be careful not to pinch the cords. Avoid
twisting the cords.
NOTE: The cords from the secondary rail are routed
through the headrail end cap.
Attach the end caps
■ Loosen the screw on each end cap until it is flush with the top.
■ Push the end caps into place on the headrail. Hold the cords below the end caps when
installing them. Be careful not to pinch the cords.
■ If necessary, tap the end caps in place with a rubber mallet.
■ Tighten the end cap screws.
Install the Headrail
IMPORTANT: Because the fabric is pre-installed into the headrail, more than one installer may
be needed to mount the headrail into the installation brackets.
■ Remove the protective plastic covering from the
front of the headrail.
■ Two-piece headrails only: Attach the fabric tab.
Remove the adhesive backing from the tab and press
it in place over the split on the front of theheadrail.
■ Gather the vertical rails and fabric panel(s) to the center of the headrail.
■ Carefully lift and move the headrail, vertical rails, and fabric to the window or door opening.
■ Slip the headrail onto the installation brackets, until the front of each bracket fits under the
groove of theheadrail.
■ Rotate the back of the headrail up and push back to snap it into the bracket.
Proceed to “Attach the Handle(s)” on page 15.

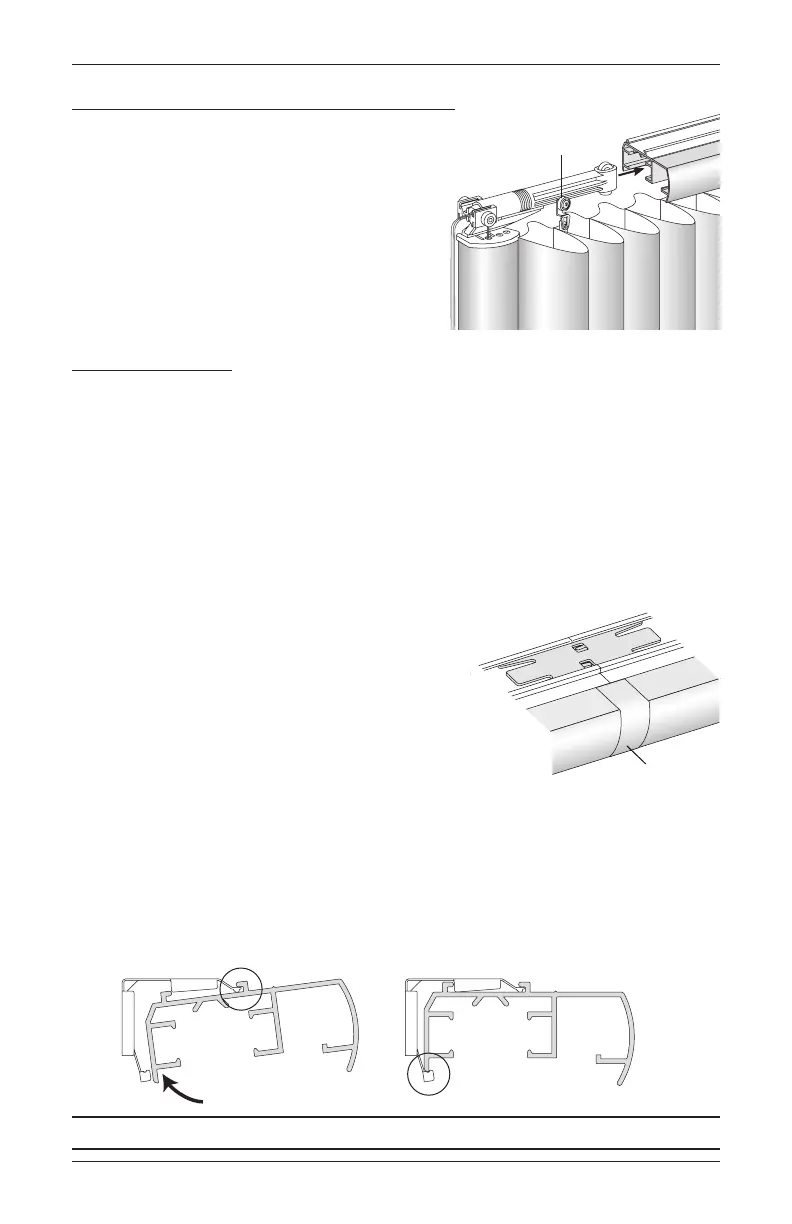

Headrail
The front of the installation
bracket fits under the groove.
The back of the headrail
snaps into the bracket.
Secondary
Rail Trike
Last Fabric
Carrier Roller
To Next Page
