INSTALLATION — Inside Mount
13

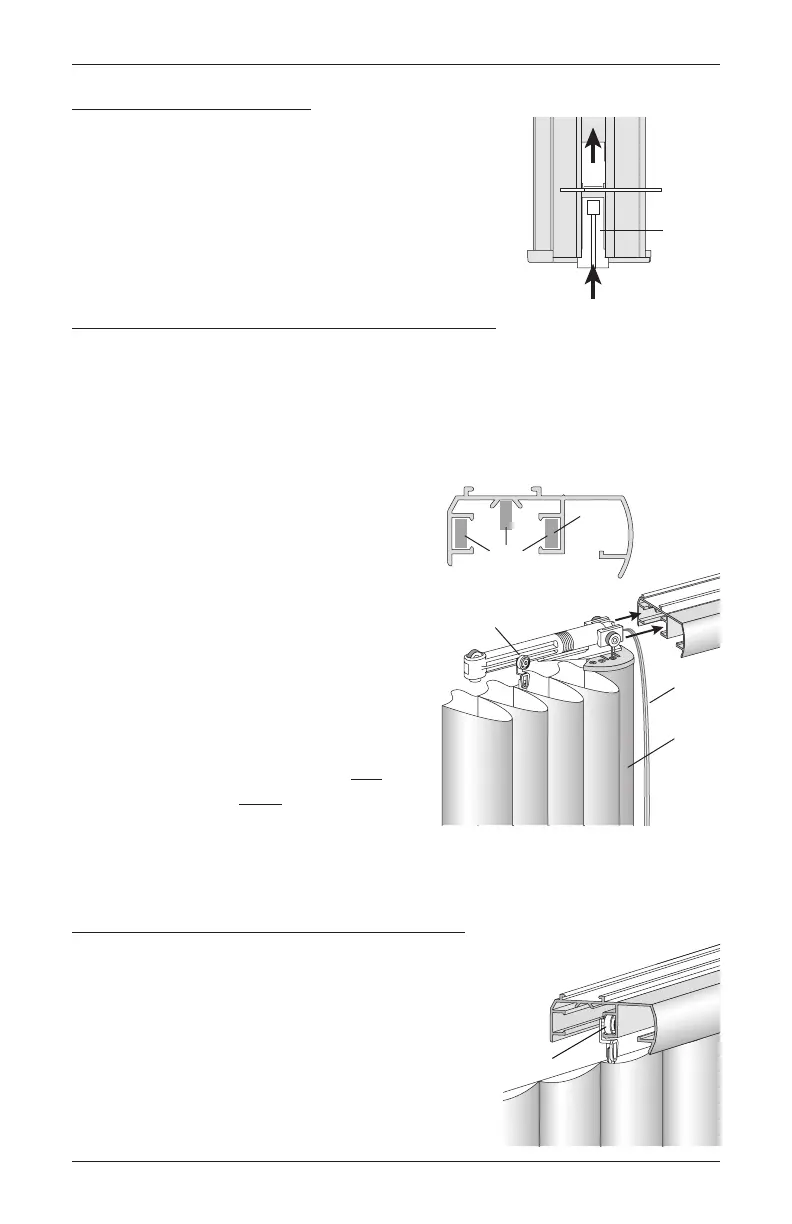

Prepare the Secondary Rail(s)
■ Insert the stabilizer plate and snaplock into the bottom of
the secondary rail(s).
➤ Slide the stabilizer plate into the channel on the
secondary rail as shown.
➤ Install the snaplock into the channel under the stabilizer
plate to hold the stabilizer plate in place.
Insert the Primary Moving Rail Trike into the Headrail
NOTE: With split stack designs, fully complete the installation of one shade panel before
starting the second panel.
■ Review the illustration showing the channels where the trike rollers and fabric carrier rollers
fit into the headrail.
■ With the front of the fabric facing you, locate the primary moving rail trike.
➤ Insert the trike’s side rollers into the
headrail, as illustrated.
IMPORTANT: Be sure the cords are routed
to the outside of the trike before sliding the
trike side rollers into the headrail. Be careful
not to pinch the cords.
NOTE: One cord anchor is attached to each
of the three cords. With side stack designs,
the cords are routed through the headrail
end cap.
➤ Install the first fabric carrier roller after the
trike side rollers, before sliding on the top
roller on the end of the trike.
➤ After installing the first fabric carrier roller, continue sliding the trike into the headrail
until the top roller on the end of the trike fits under the center channel.
Install the Fabric Carrier Rollers into the Headrail
■ Hook each of the remaining rollers (except the last
one) into the correct channel of the headrail.
➤ Carefully push back the fabric in order to see
each roller.
➤ Hook the bottom of the roller into the lower part of
the channel and then rock the top of the roller into
the top part of the channel.
Headrail
Cutaway
Roller in
Channel
Trike
First Fabric
Carrier Roller
Trike
Rollers
Fabric
Carrier
Rollers
Front of
Headrail
Cords
Moving
Rail
Back of
Secondary
Rail
Plate
To Next Page
