Hunter Douglas Vignette Series User Manual

INSTALLATION
5

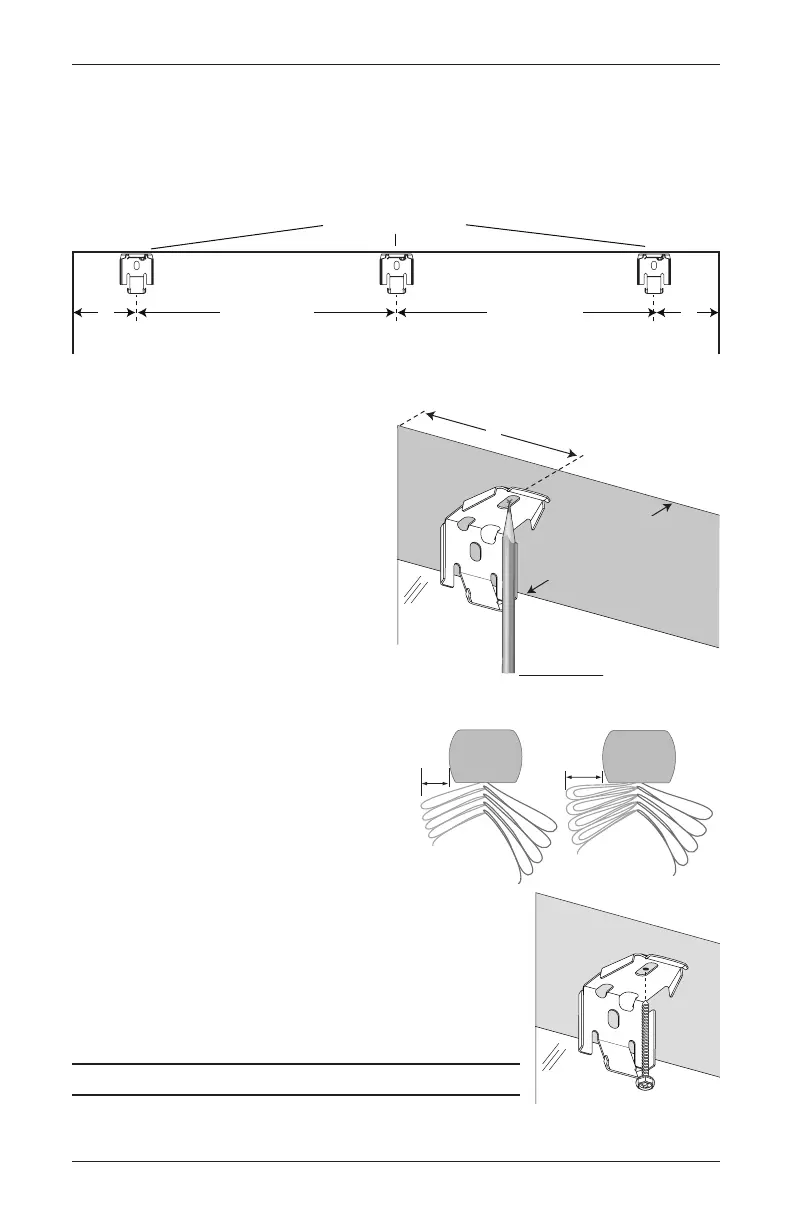

Mount the Installation Brackets — Inside Mount
■ Mark 2" from each jamb for bracket location.
➤ If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets. Mount into wood whenever possible.
■ Center the brackets on your marks and mark the location of the screw holes.
➤ The minimum casement depth
required for installation brackets
(including the rear fabric fold
clearance) is 1
5
/ 8 " for standard
Tiered
™
or 1
7
/ 8 " for Tiered Architella
®
.
➤ The minimum casement depth
required for a fully recessed mountis
2
3
/ 4 " for standard Tiered or 3" for
Tiered Architella.
➤ For rear fabric fold clearance, there
must be
3
/ 4 " clearance behind the
bracket for standard Tiered or 1"
clearance behind the bracket
for Tiered Architella.
IMPORTANT: The front edges of the
installation brackets must be aligned to
eachother.
■ Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when
mounting into drywall.
■ Use a level to check that the mounting surface is level.
Shim the brackets if necessary.
■ Attach the installation brackets using the screws provided.
Proceed to “Install the Shade” on page8.
Space Evenly
2"
Installation Brackets
Space Evenly
Jambs
Jambs
2"
2"
Fully Recessed
Mounting Depth
Standard Tiered Fabric = 2
3
/ 4 "
Tiered Architella Fabric = 3"
Standard Vignette
Tiered
Raised Folds
3
/ 4 "
1"
Vignette Tiered
Architella
1"
Raised Folds
UltraGlide

Hunter Douglas Vignette Series Specifications

General

Series	Vignette
Operation	Manual or motorized
Fabric Options	Variety of colors and textures
Material	Fabric
UV Protection	Yes
Energy Efficiency	Yes (insulating properties vary by fabric)
