Hunter Douglas Vignette Series User Manual

INSTALLATION
7

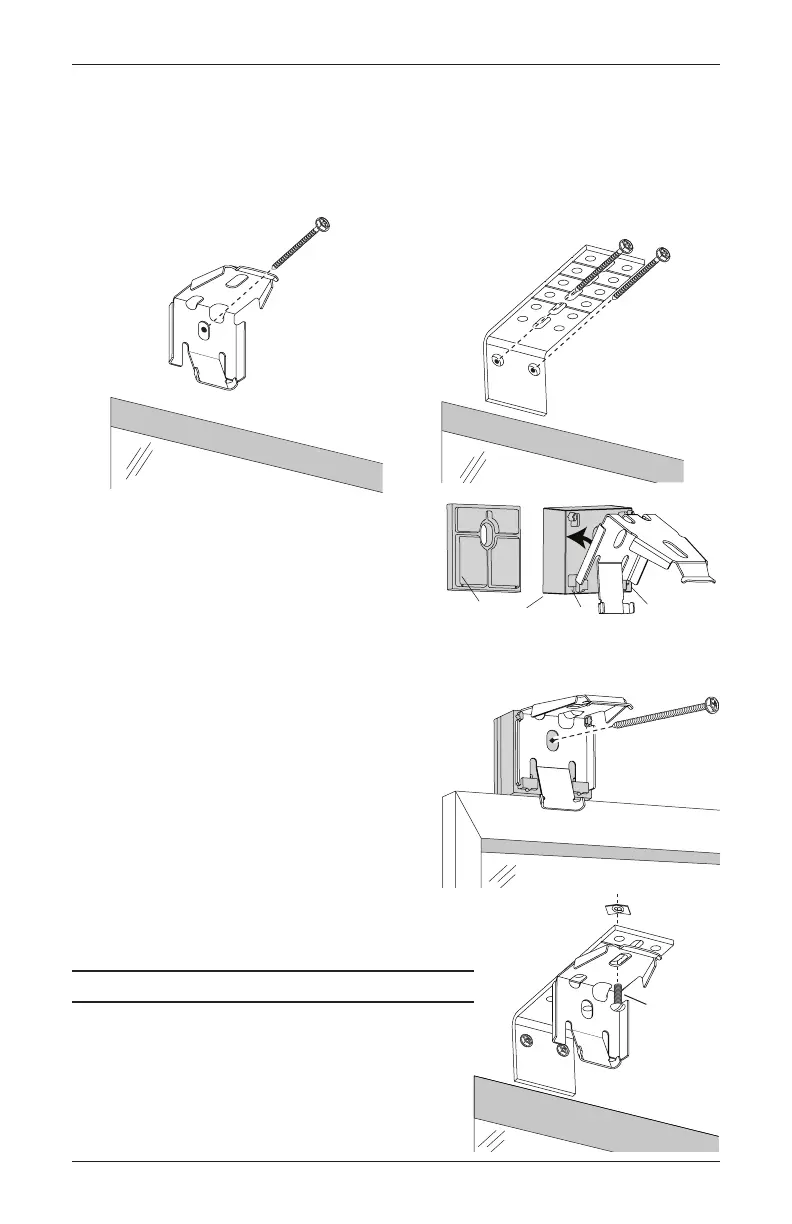

■ Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■ Attach the installation or extension brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must be level and aligned to
each other.
■ If using the recommended spacer blocks, first
attach the installation bracket to a
1
/ 2 " spacer
block before stacking additional spacer blocks
together.
➤ Insert the legs of the installation bracket into
the tabs on the spacer block.
➤ Then rotate the installation bracket back.
■ Attach the spacer blocks/installation bracket
to a flat vertical mounting surface with
#6mounting screws long enough for asecure
installation.
➤ A maximum of 1
1
/ 2 " of spacer blocks per
installation bracket is allowed.
■ If using extension brackets, attach an installation
bracket to the underside of each extension
bracket using the provided screws and speed nuts.
Proceed to “Install the Shade” on page8.
Spacer
blocks may
be stacked.
Tab
Tab
Spacer
Blocks
Installation
Bracket
Speed Nut
Screw
