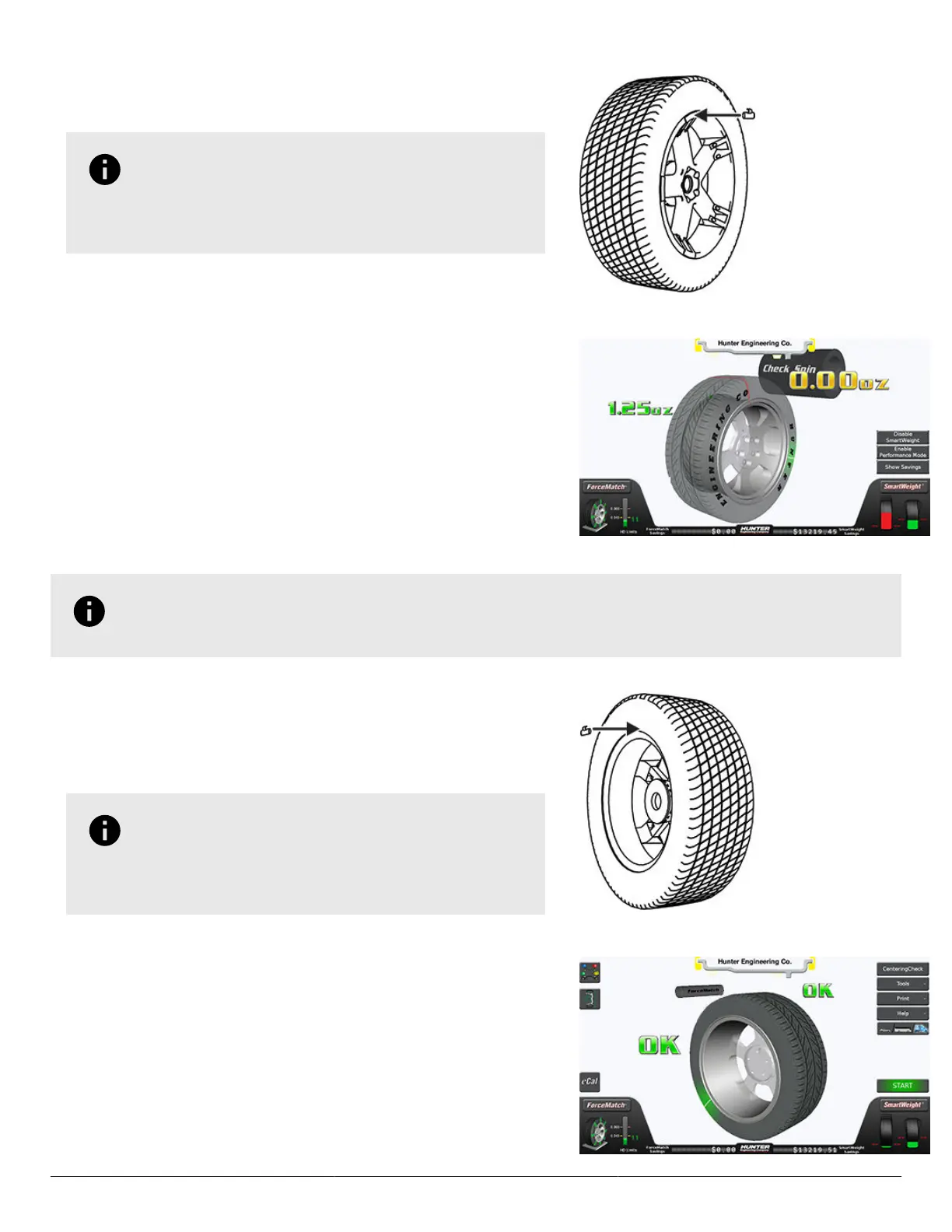

TruWeight™ shows the operator exactly how to place the weights on
the wheel. Place them exactly as displayed on the screen.
NOTICE
If the optional HammerHead® TDC weight locator is
installed, the weight should be applied at the location
marked by the laser.
Select the green “START” button with the safety hood in the raised
position. The HD Elite® will rotate the wheel to TDC for the next
weight plane.
The view of the wheel will also change to the next plane view and the
weight amount for the next plane will be displayed in green.
NOTICE
Optionally, selecting the next plane weight amount will rotate the wheel to TDC for the next weight plane.
Attach the weight amount shown on the screen for the selected
weight plane to the correct side of the wheel. TruWeight™ shows the
operator exactly how to place the weights on the wheel. Place them
exactly as displayed on the screen.
NOTICE
If the optional HammerHead® TCD weight locator is
installed, the weight should be applied at the location
marked by the laser.
Close the safety hood to perform a check spin.
Left and right weight plane displays should show “OK” after the check
spin.
The clip-on weight balancing procedure is complete.
