Hunter HD Elite - Balancing Procedures Using a Combo of Clip-On & Adhesive (Tape) Weights (Mixed Weights)

3.8.2. Balancing Procedures Using a Combo of Clip-On & Adhesive (Tape) Weights (Mixed Weights)
Verify that the wheel is clean and free of debris. Remove all previous weights. Mount tire/wheel assembly. Close the hood
to perform a balance spin to measure the distance, diameter, runout and rim width dimensions.

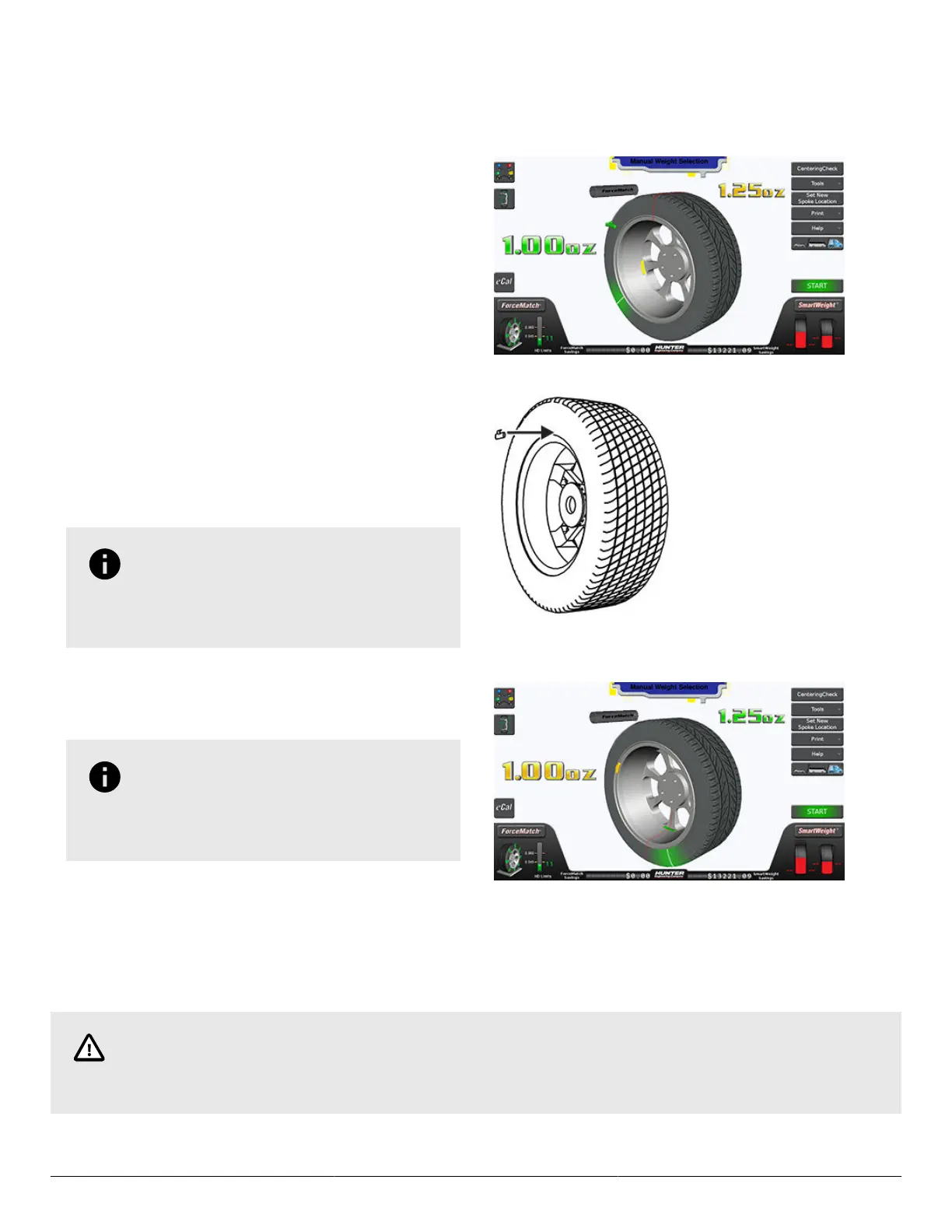

As the wheel is spinning, the amount(s) of corrective
weight(s) needed will be shown on the screen. This time
can be used to nd and prepare the needed weights.
After wheel comes to a complete stop, raise safety hood.
The HD Elite® will nd the top-dead center (TDC) for the
rst weight plane if “Servo-Stop” is enabled. “Servo-Stop”
will hold the wheel in the TDC position while the weight is
applied.
Attach the clip-on weight amount shown on the screen
for the left weight plane to the inner rim of the wheel.
TruWeight® shows the operator exactly how to place the
weights on the wheel. Place them exactly as displayed on
the screen.
NOTICE
If the optional HammerHead® TDC weight
locator is installed, the weight should be
applied at the location marked by the laser.
Touch the green “START” button with the safety hood in
the raised position.
NOTICE
Optionally, pressing the next plane weight
amount will rotate the wheel to the next
weight plane.
The HD Elite inner camera quickly locates and marks
adhesive weight positioning.
The laser locator automatically displays a vivid line at bottom dead center after a wheel has been spun. The laser turns off
when the wheel is spun again.
CAUTION
Caution! Use of controls or adjustments or performance of procedures other than those specied herein may
result in hazardous radiation exposure.
HD Elite Wheel Balancer
Page 26 of 51
