F.7Part. N. 8000 H0368 (09-2008)
ENGINE DISASSEMBLY

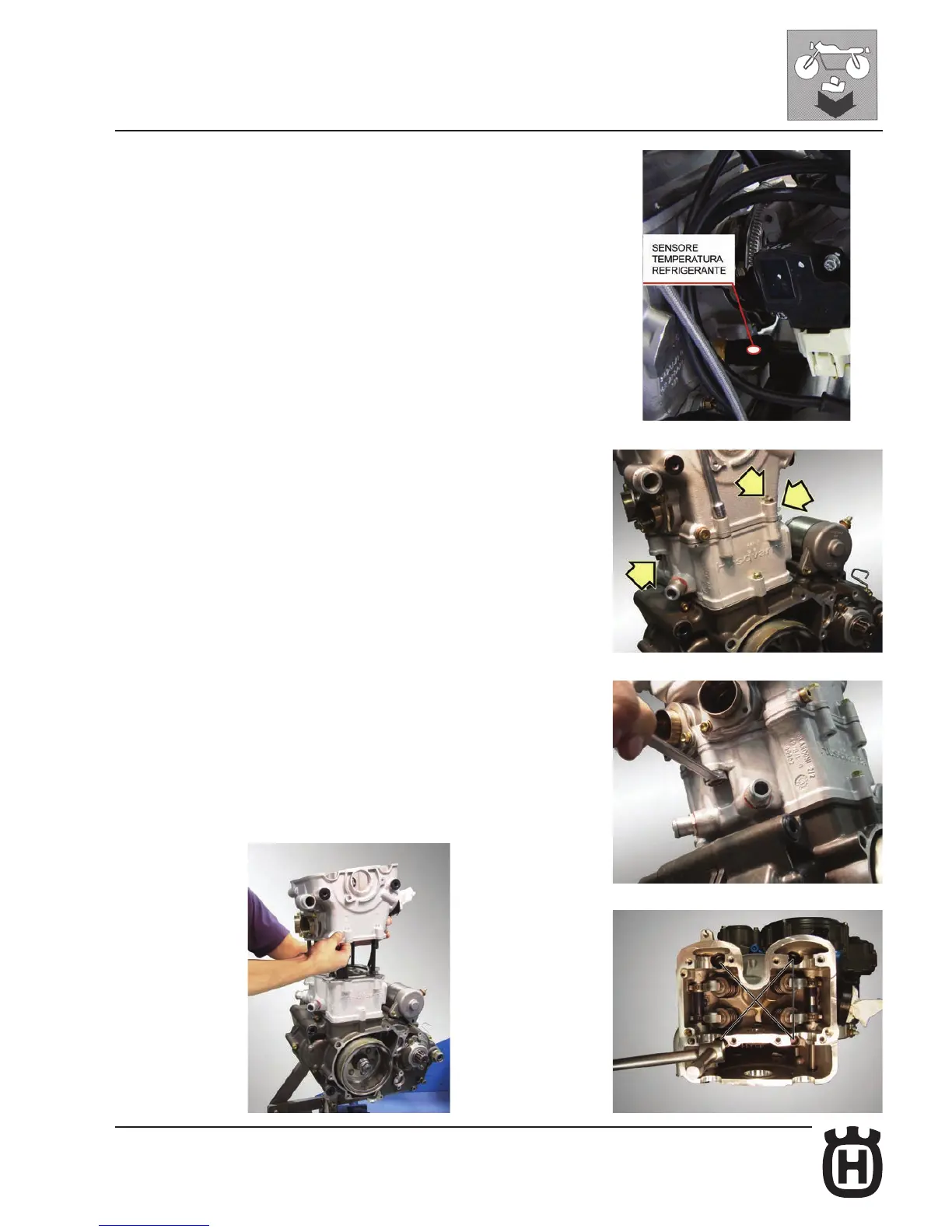

Cylinder head disassembly
TE-SMR: remove the coolant fluid temperature sensor with its O-ring.
Remove the two screws on the L.H.S (8 mm wrench) then the front nut under the
cylinder head (13 mm wrench).
Remove the four inner screws on the cylinder head (10 mm wrench) whilst
following a cross-over pattern.
Remove the cylinder head and relative gasket.
