E.15Part. N. 8000 H0364 (09-2008)
GENERAL OPERATIONS

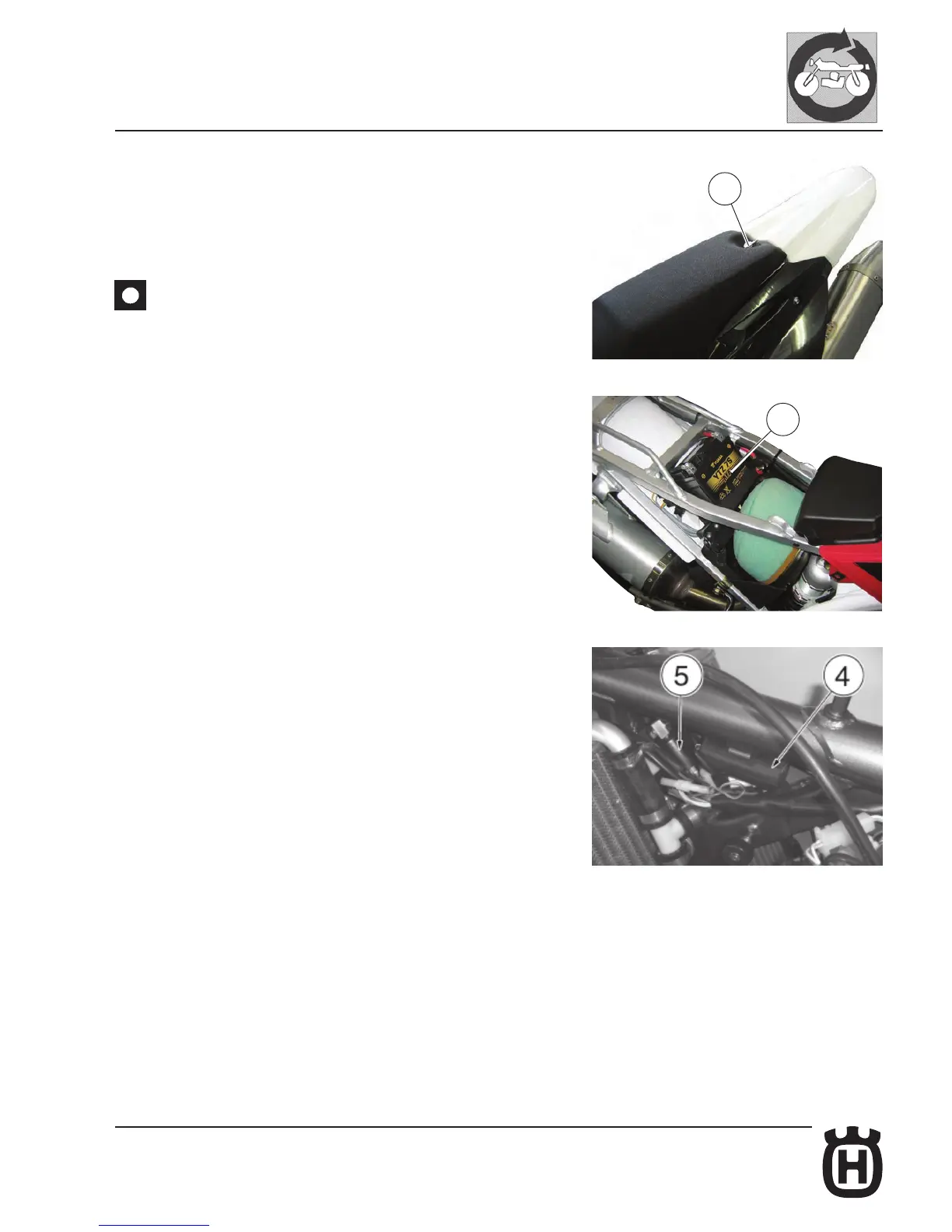

Removal of saddle and battery
Turn counterclockwise the rear fastening pin (1) and remove the saddle.
TE-SMR-TXC: First remove the BLACK negative cable, then the RED positive
cable (when reassembling, first connect the RED positive cable and then the
BLACK negative cable); remove the battery (3) from its housing.
TXC: After battery removal, push ONCE THE ENGINE START BUTTON in or-
der to discharge the condenser (4) fastened near the H.T. coil (5).
: After battery disassembly, DO NOT remove the condenser from the fra-
me: in case of engine starting in this condition, the voltage regulator will be
damaged.
TXC
1
3
