SETTINGS AND ADJUSTMENTS
1

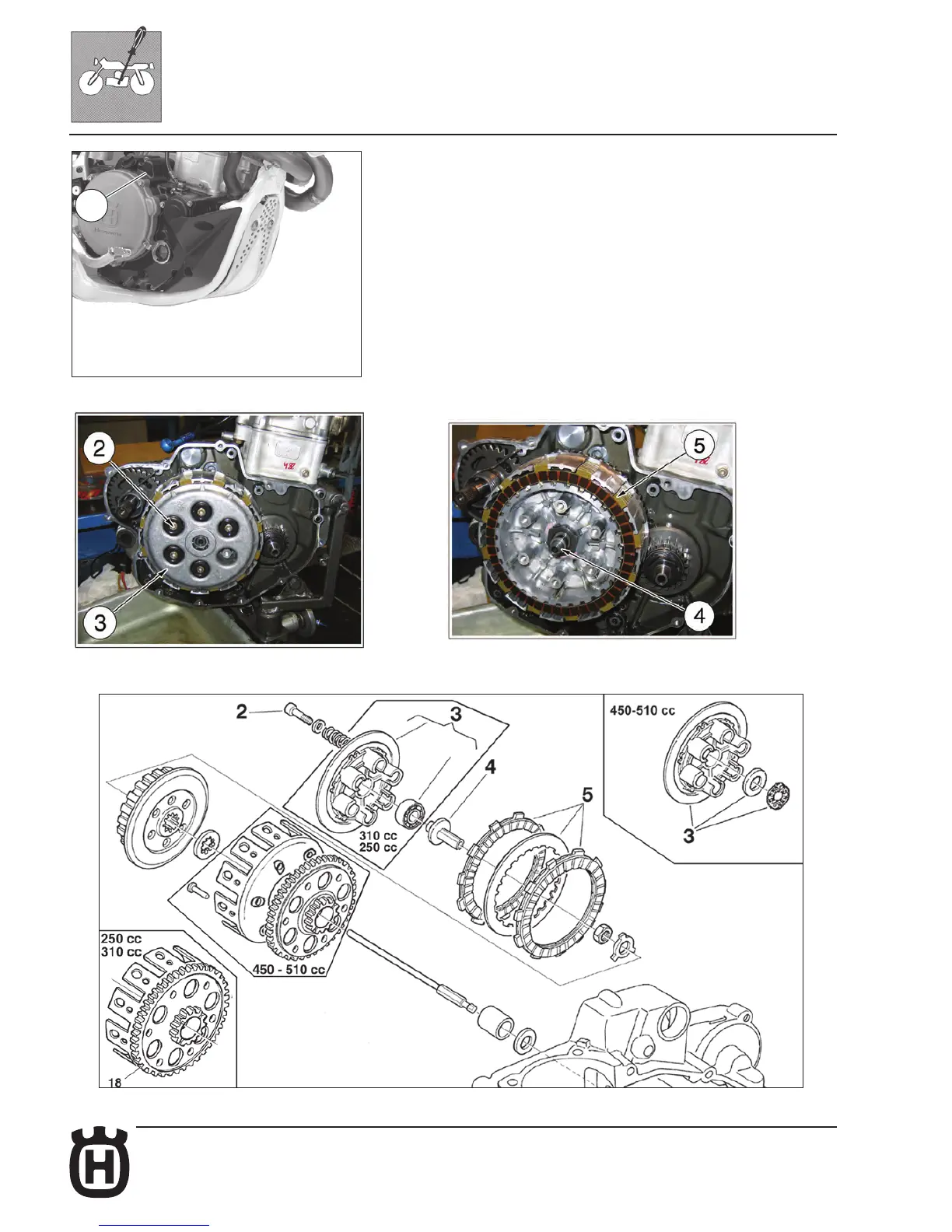

Clutch discs replacement (TC-TE-TXC-SMR)
This operation can be carried out by laying the motorcycle on the left side with-
out draining the engine oil. Remove the five fastening screws (1) and the
clutch cover (if necessary, lower the rear brake control pedal). Use a 5 mm allen
wrench to loosen the six screws (2) that fasten clutch springs. Remove springs,
pressure plate (3) complete with bearing and clutch control rod (4). Extract the
discs (5), lubricate the new discs with engine oil then assemble the new discs (first
always mount a lined disc). Reassemble pressure plate and springs. Tighten the
clutch springs bolts whilst following a cross-over pattern and in steps (8 Nm-0,8
Kgm- 5.8 ft/lb). Reassemble the clutch cover (8 Nm-0,8 Kgm- 5.8 ft/lb).
